Differential Case: Disassembly

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FRONT DIFFERENTIAL RING GEAR

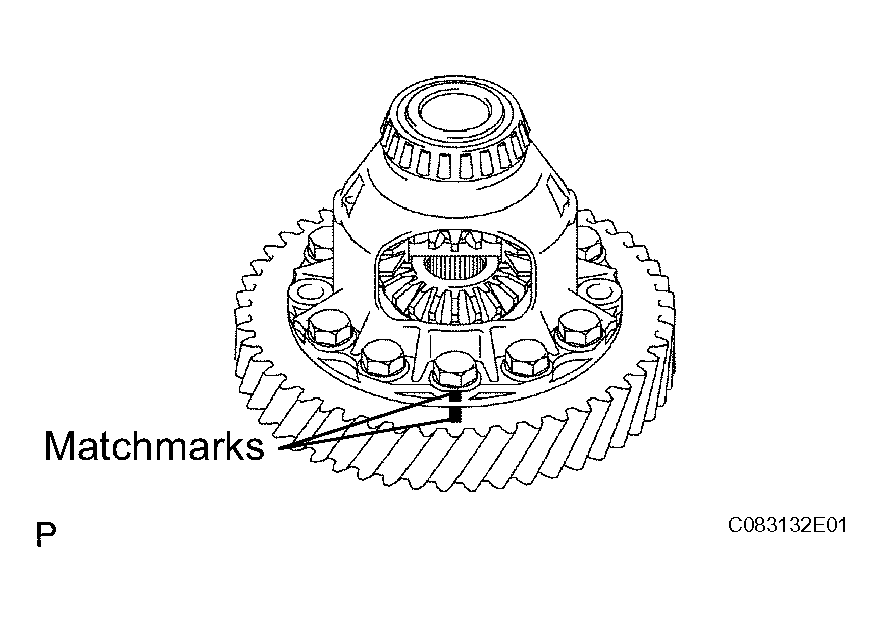

1. Place the matchmarks on the ring gear and differential case.

  Fig 1: Placing Matchmarks On Ring Gear And Differential Case
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 10 bolts.

  Fig 2: Removing Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

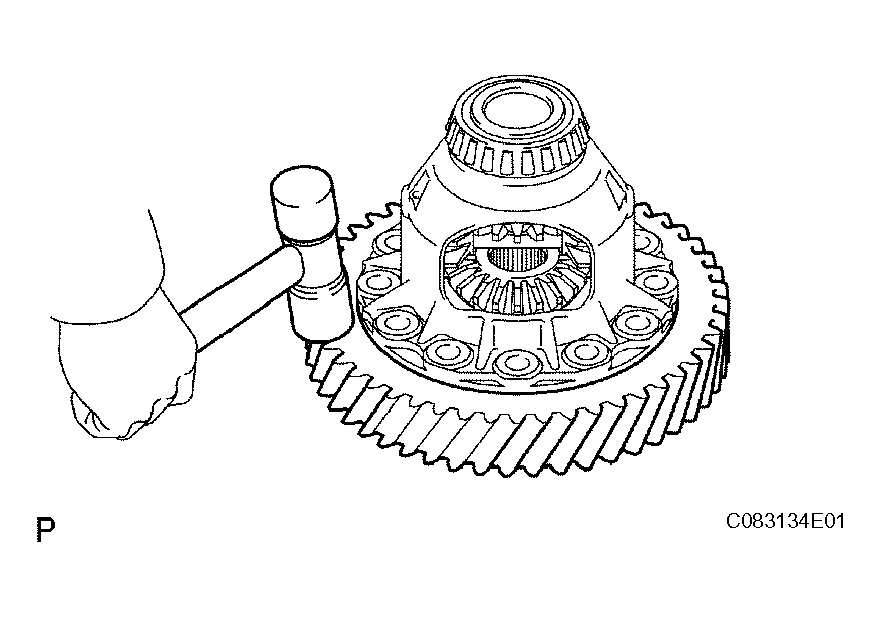

3. Using a plastic-faced hammer, tap on the ring gear to remove it from the case.

  Fig 3: Tapping On Ring Gear
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING
1. Using SST, remove the front differential case tapered roller bearing front inner race from the differential case.
  SST 09950-40011 (09951-04020, 09952-04010, 09953-04020, 09954-04010, 09955-04061, 09957-04010, 09958-04011), 09950-60010 (09951-00340)

  Fig 4: Removing Front Differential Case Tapered Roller Bearing Front Inner Race From Differential Case
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST, remove the front differential case tapered roller bearing front outer race and differential case washer.
  SST 09387-00041 (09387-01030, 09387-01040, 09387-02010, 09387-02020)

  Fig 5: Removing Front Differential Case Tapered Roller Bearing Front Outer Race And Differential Case Washer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING
1. Using SST, remove the front differential case tapered roller bearing rear inner race from the differential case.
  SST 09950-40011 (09951-04020, 09952-04010, 09953-04020, 09954-04010, 09955-04061, 09957-04010, 09958-04011), 09950-60010 (09951-00340)

  Fig 6: Removing Front Differential Case Tapered Roller Bearing Rear Inner Race From Differential Case
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

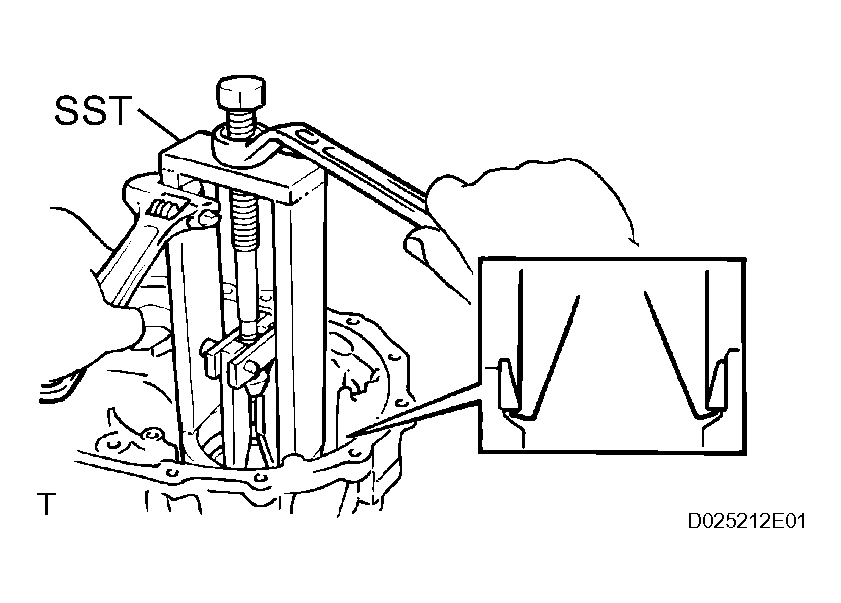

2. Using SST, remove the front differential case tapered roller bearing rear outer race from the differential case washer.
  SST 09387-00041 (09387-01030, 09387-01040, 09387-02010, 09387-02020)

  Fig 7: Removing Front Differential Case Tapered Roller Bearing Rear Outer Race From Differential Case Washer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT DIFFERENTIAL PINION SHAFT STRAIGHT PIN
1. Using a punch and hammer, loosen the staked part of the differential case.

  Fig 8: Loosening Staked Part Of Differential Case
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a pin punch (5 mm), tap out the pin from the ring gear side.

  Fig 9: Tapping Out Pin From Ring Gear Side
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 1 FRONT DIFFERENTIAL PINION SHAFT
1. Remove the front differential pinion shaft from the differential case.

  Fig 10: Removing Front Differential Pinion Shaft From Differential Case
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT DIFFERENTIAL SIDE GEAR
1. Remove the 2 front differential pinions, 2 pinion thrust washers, 2 front differential side gears and 2 side gear thrust washers from the differential case.

  Fig 11: Removing Front Differential Pinions, Pinion Thrust Washers, Front Differential Side Gears
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE DIFFERENTIAL SIDE BEARING RETAINER OIL SEAL
1. Place the transaxle case in a vise.
2. Using SST, remove the oil seal.
  SST 09308-00010

  Fig 12: Removing Oil Seal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSAXLE HOUSING OIL SEAL
1. Place the transaxle housing in a vise.
2. Using SST, remove the oil seal.
  SST 09308-00010

  Fig 13: Removing Oil Seal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
