Automatic Transaxle Unit: Disassembly

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE SPEEDOMETER DRIVEN HOLE COVER SUB-ASSEMBLY
1. Remove the bolt and hole cover from the transaxle.
2. Remove the O-ring from the hole cover.
REMOVE PARK/NEUTRAL POSITION SWITCH ASSEMBLY
1. Remove the nut, washer and control shaft lever.

  Fig 1: Removing Nut, Washer And Control Shaft Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a screwdriver, unstake the lock plate and remove the lock nut and lock plate.

  Fig 2: Removing Lock Nut And Lock Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 2 bolts and pull out the park/neutral position switch.
REMOVE BREATHER PLUG HOSE
1. Remove the breather plug hose from the breather plug.

  Fig 3: Removing Breather Plug Hose From Breather Plug
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE OIL COOLER OUTLET TUBE UNION
1. Remove the union.
2. Remove the O-ring from the union.

  Fig 4: Removing O-Ring From Union
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE OIL COOLER INLET TUBE UNION
1. Remove the union.
2. Remove the O-ring from the union.

  Fig 5: Removing O-Ring From Union
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SPEED SENSOR
1. Remove the 2 bolts and 2 speed sensors from the transaxle.
2. Remove the 2 O-rings from the sensors.

  Fig 6: Removing O-Rings From Sensors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

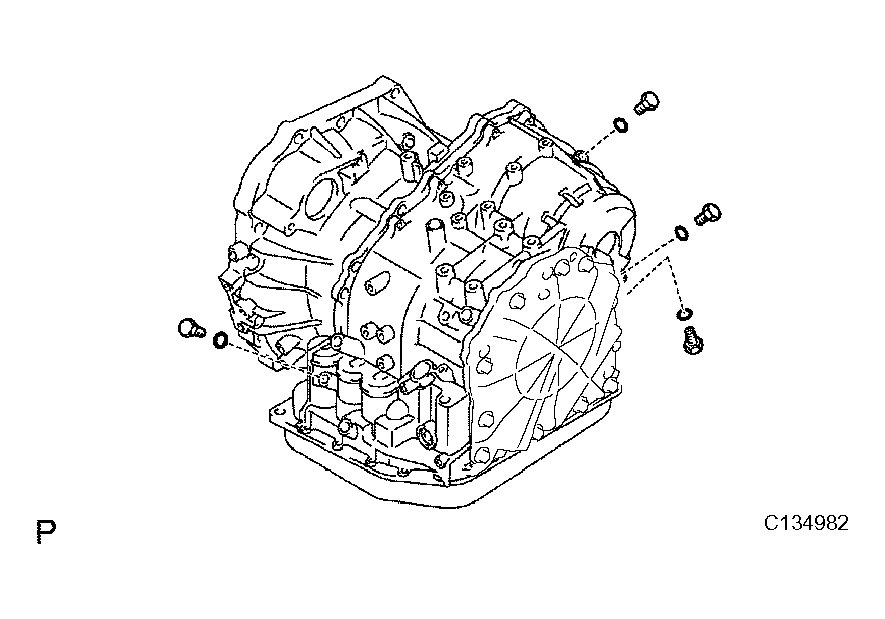

REMOVE NO. 1 TRANSAXLE CASE PLUG
1. Remove the 4 plugs from the transaxle.
2. Remove the 4 O-rings from the 4 plugs.

  Fig 7: Removing O-Rings From Plugs
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

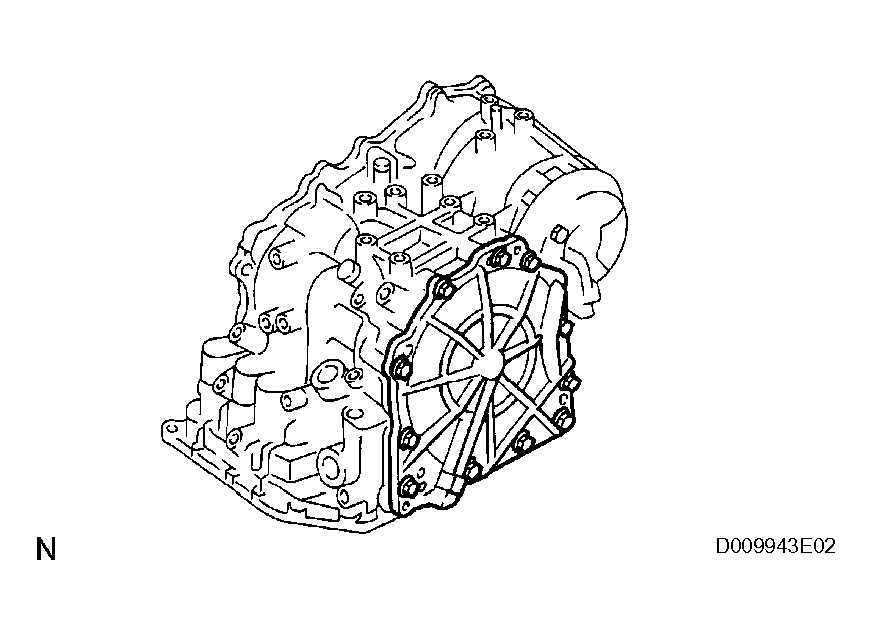

FIX AUTOMATIC TRANSAXLE ASSEMBLY

Fig 8: Fixing Automatic Transaxle Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE AUTOMATIC TRANSAXLE OIL PAN SUBASSEMBLY
1. Remove the 18 bolts.
2. Remove the oil pan and 3 magnets.
3. Remove the gasket from the oil pan.
INSPECT AUTOMATIC TRANSAXLE OIL PAN SUBASSEMBLY (See INSPECTION )

Fig 9: Removing Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

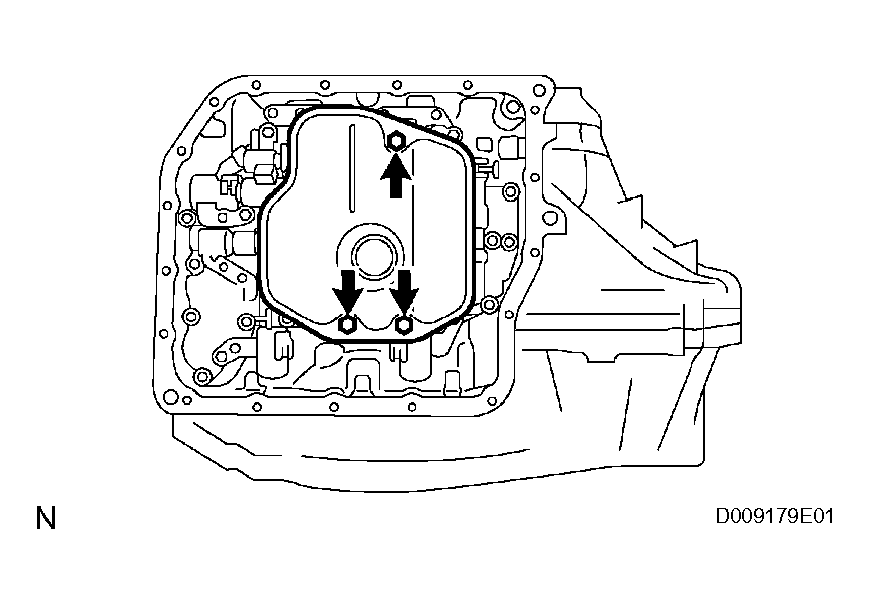

REMOVE VALVE BODY OIL STRAINER ASSEMBLY
1. Remove the 3 bolts and oil strainer.

  Fig 10: Removing Bolts And Oil Strainer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the O-ring from the oil strainer.

  Fig 11: Removing O-Ring From Oil Strainer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

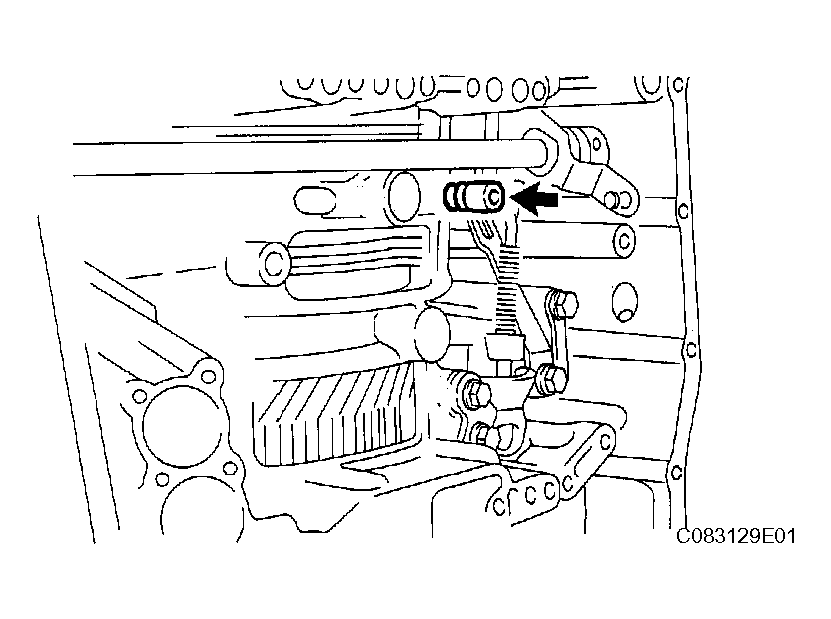

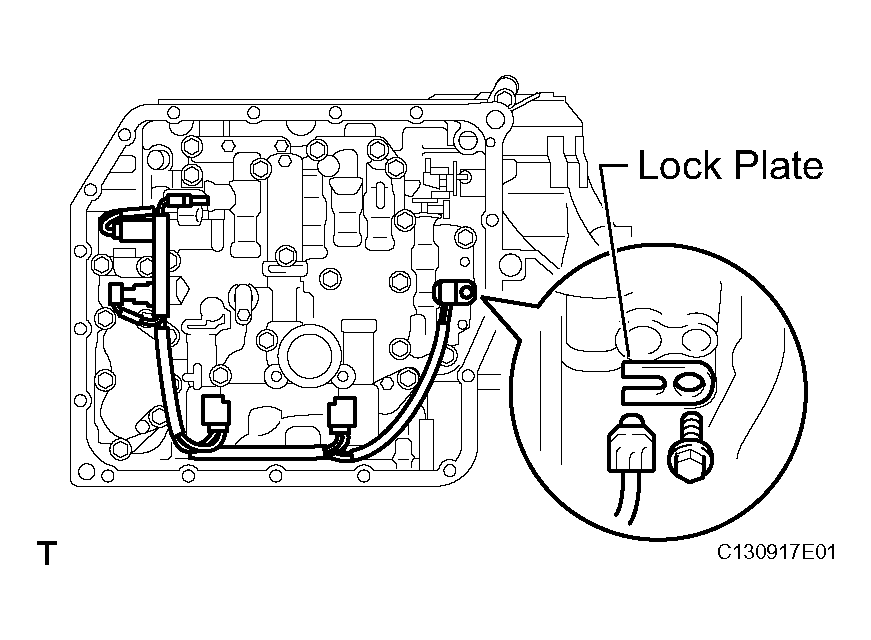

REMOVE TRANSMISSION WIRE
1. Remove the 5 connectors from the shift solenoid valves.
2. Remove the bolt, clamp and ATF temperature sensor.

  Fig 12: Removing Bolt, Clamp And ATF Temperature Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the bolt and transaxle solenoid wire from the transaxle.

  Fig 13: Removing Bolt And Transaxle Solenoid Wire From Transaxle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the O-ring from the transaxle solenoid wire.

  Fig 14: Removing O-Ring From Transaxle Solenoid Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSMISSION VALVE BODY ASSEMBLY
1. Support the valve body assembly and remove the 17 bolts and the valve body assembly.

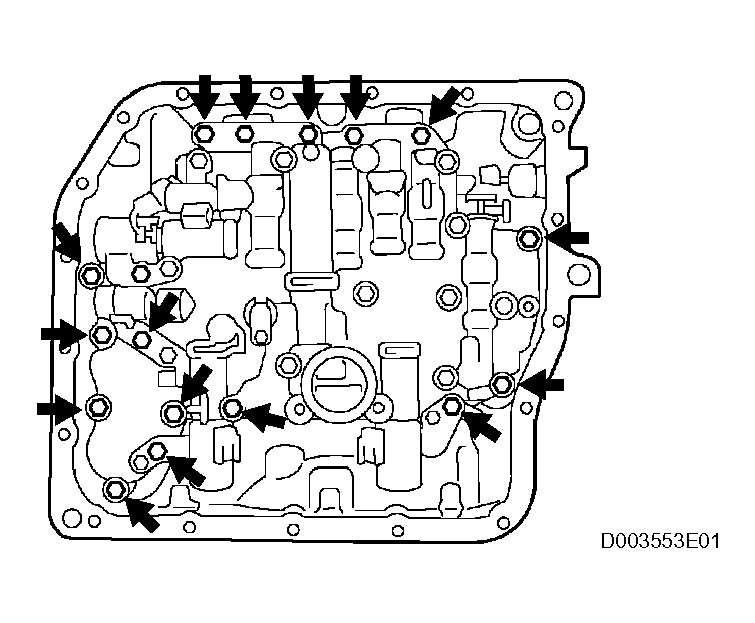

  Fig 15: Removing Bolts And Valve Body Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 1 GOVERNOR APPLY GASKET
1. Remove the governor apply gasket from the transaxle.

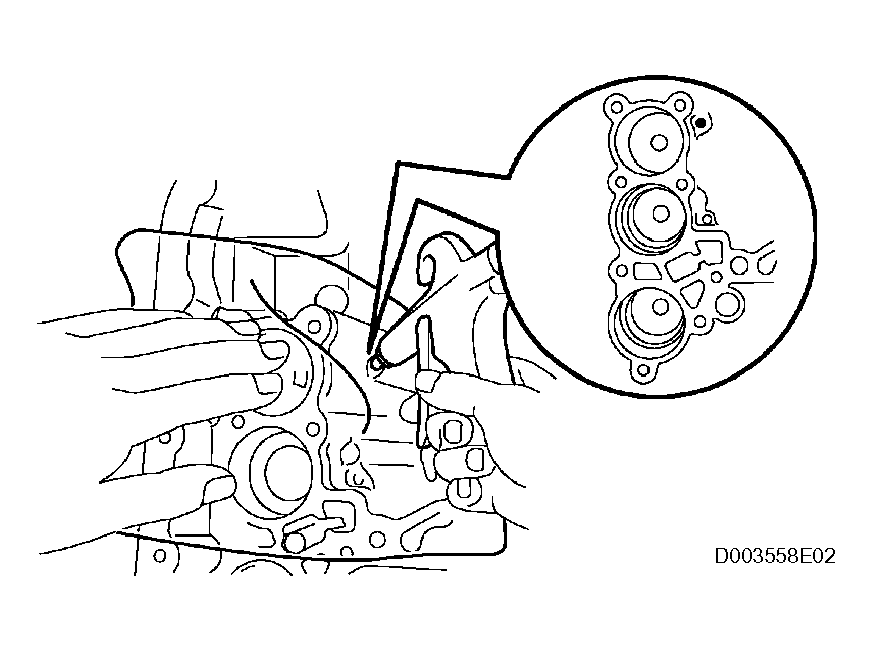

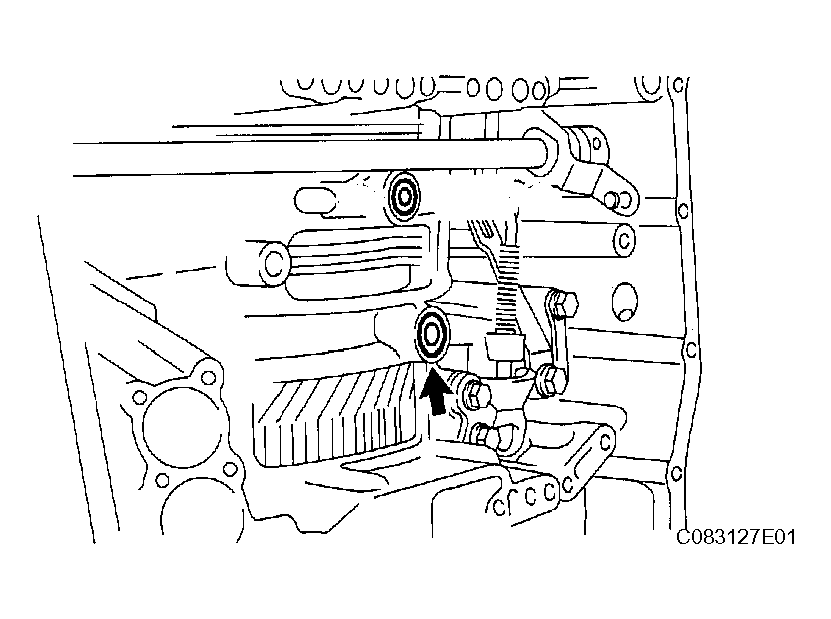

  Fig 16: Removing Governor Apply Gasket From Transaxle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSAXLE CASE 2ND BRAKE GASKET
1. Remove the 2nd brake gasket from the transaxle.

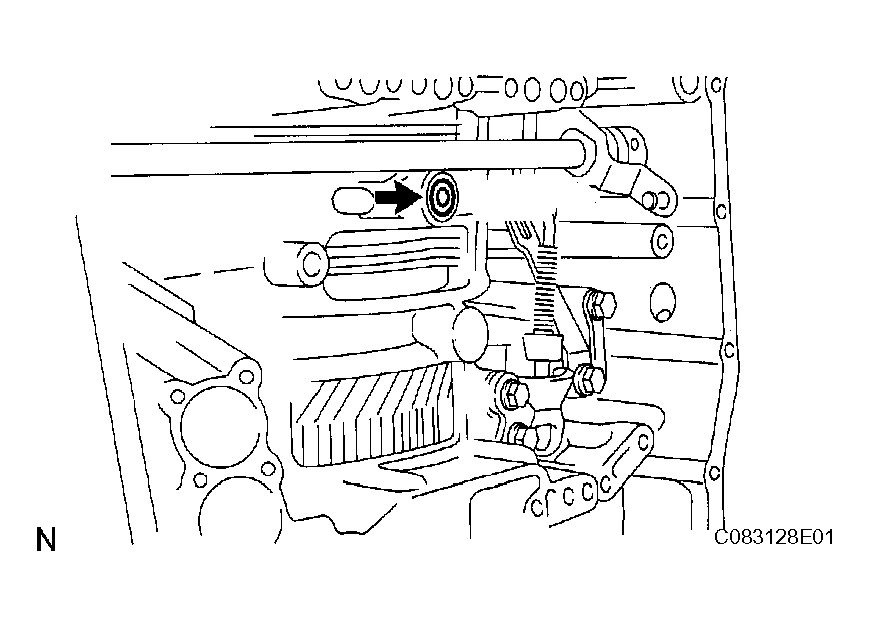

  Fig 17: Removing 2Nd Brake Gasket From Transaxle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE BRAKE DRUM GASKET
1. Remove the brake drum gasket from the transaxle.

  Fig 18: Removing Brake Drum Gasket From Transaxle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CHECK BALL BODY
1. Remove the check ball body and spring from the transaxle.

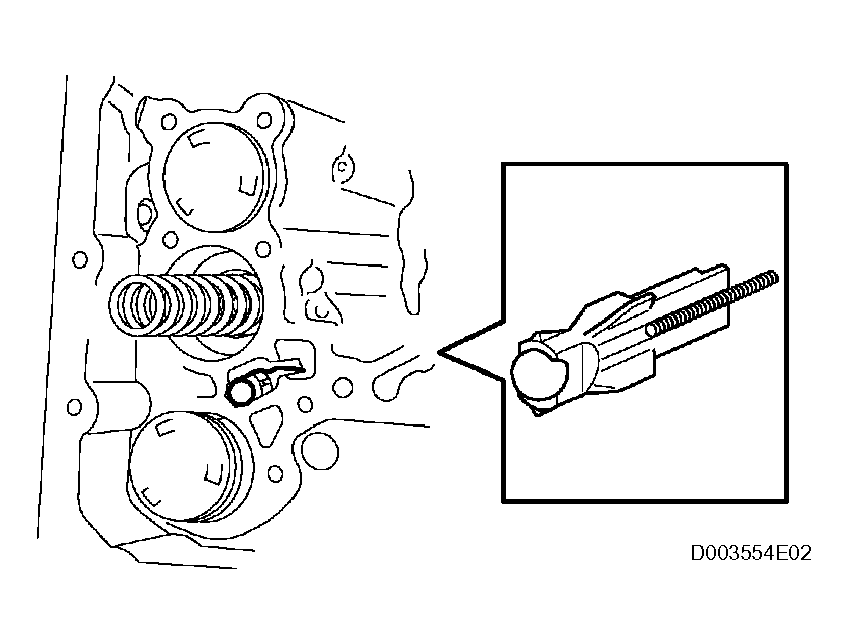

  Fig 19: Removing Check Ball Body And Spring From Transaxle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE C-3 ACCUMULATOR PISTON
1. Remove the compression spring from the C-3 accumulator piston.

  Fig 20: Removing Compression Spring From C-3 Accumulator Piston
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Apply compressed air (392 kPa, 4.0 kgf/cm² , 57 psi) to the oil hole and remove the C-3 accumulator piston.
  NOTE:
  - Applying compressed air may cause the piston to jump out. When removing the piston, hold it with your hand using a waste cloth.
  - Make sure not to spatter ATF when applying compressed air.

    Fig 21: Apply Compressed Air To Oil Hole
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the O-ring from the C-3 accumulator piston.

  Fig 22: Removing O-Ring From C-3 Accumulator Piston
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

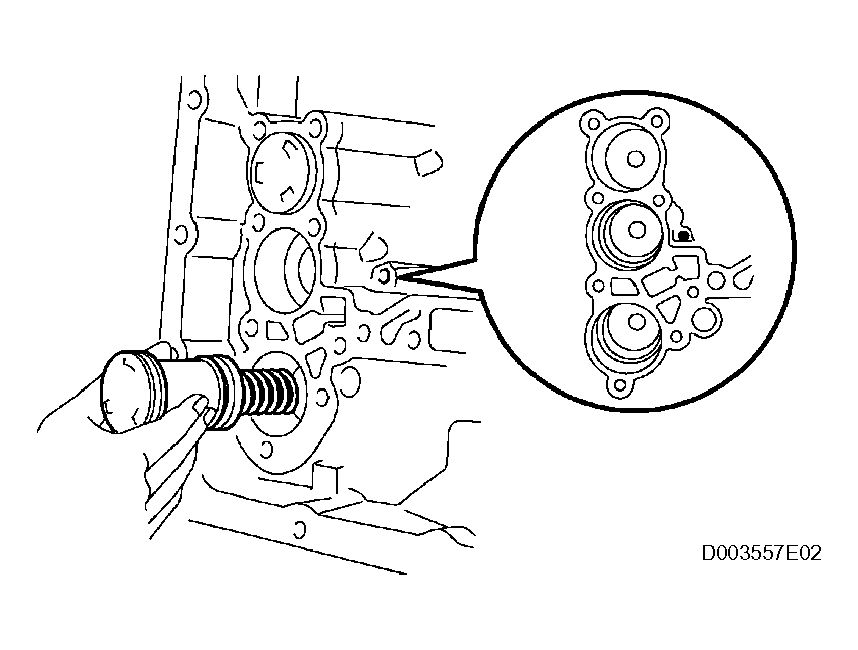

REMOVE C-1 ACCUMULATOR PISTON

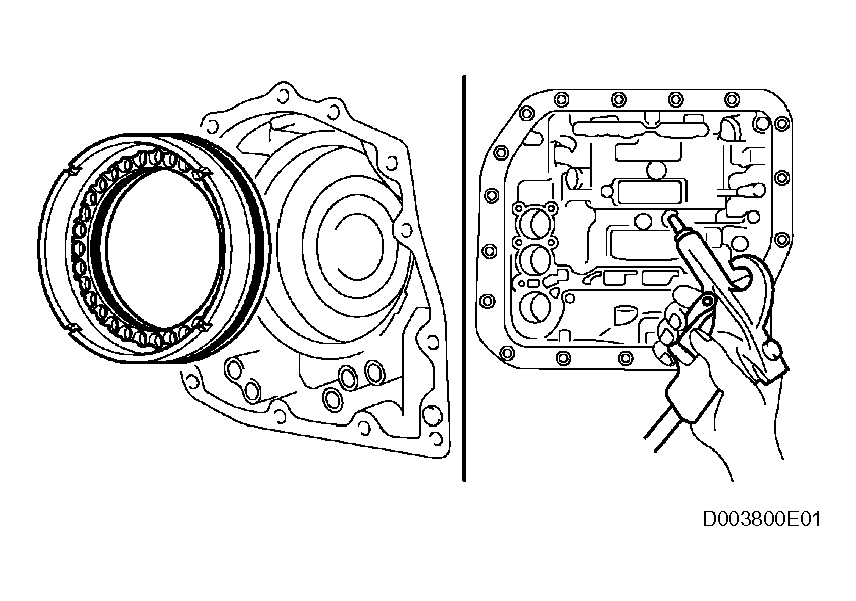

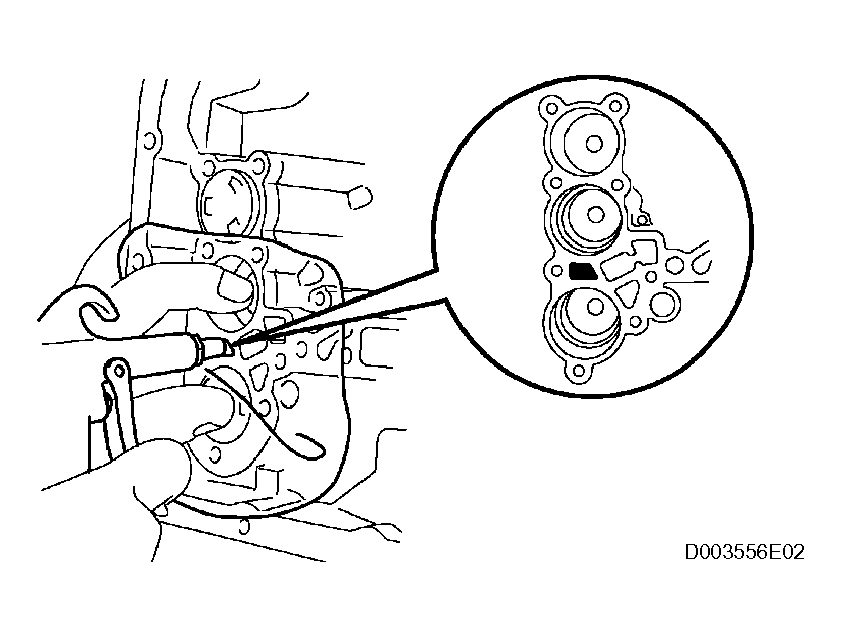

1. Apply compressed air (392 kPa, 4.0 kgf/cm² , 57 psi) to the oil hole and remove the C-1 accumulator piston and compression spring.
  NOTE:
  - Applying compressed air may cause the piston to jump out. When removing the piston, hold it with your hand using a waste cloth.
  - Make sure not to spatter ATF when applying compressed air.

    Fig 23: Removing C-1 Accumulator Piston And Compression Spring
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 O-rings from the C-1 accumulator piston.

  Fig 24: Removing O-Rings From C-1 Accumulator Piston
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE B-3 ACCUMULATOR PISTON
1. Apply compressed air (392 kPa, 4.0 kgf/cm² , 57 psi) to the oil hole and remove the B-3 accumulator piston and 2 compression springs.
  NOTE:
  - Applying compressed air may cause the piston to jump out. When removing the piston, hold it with your hand using a waste cloth.
  - Make sure not to spatter ATF when applying compressed air.

    Fig 25: Apply Compressed Air To Oil Hole
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the O-ring from the B-3 accumulator piston.

  Fig 26: Removing O-Ring From B-3 Accumulator Piston
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

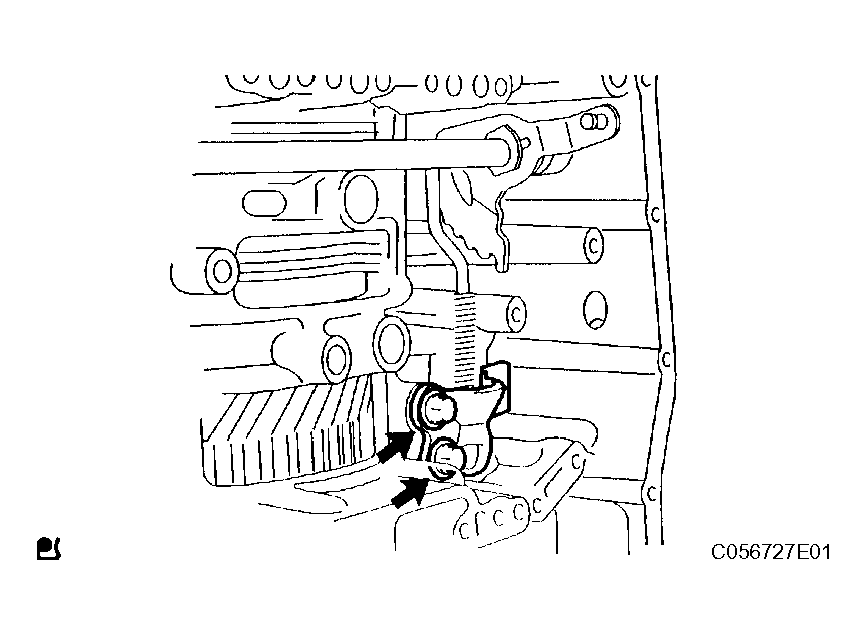

REMOVE MANUAL DETENT SPRING SUBASSEMBLY
1. Remove the 2 bolts, manual detent spring and cover.

  Fig 27: Removing Bolts, Manual Detent Spring And Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE PARKING LOCK PAWL BRACKET
1. Remove the 2 bolts and parking lock pawl bracket.

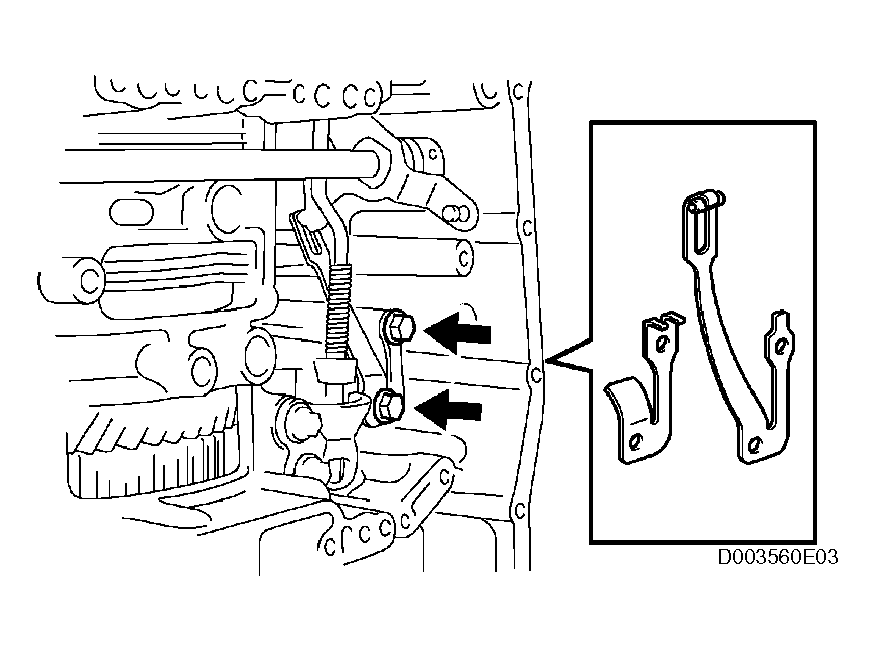

  Fig 28: Removing Bolts And Parking Lock Pawl Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE MANUAL VALVE LEVER SHAFT RETAINER SPRING
1. Using needle-nose pliers, remove the retainer spring.

  Fig 29: Removing Retainer Spring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE MANUAL VALVE LEVER SUB-ASSEMBLY
1. Using a chisel and hammer, unstake and remove the manual valve lever spacer.

  Fig 30: Removing Manual Valve Lever Spacer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a pin punch and hammer, tap out the manual valve lever shaft spring pin.
  HINT:

  Slowly drive out the pin so that it will not fall into the transaxle.

  Fig 31: Taping Out Manual Valve Lever Shaft Spring Pin
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the manual valve lever shaft and manual valve lever.

  Fig 32: Removing Manual Valve Lever Shaft And Manual Valve Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE PARKING LOCK ROD SUB-ASSEMBLY
1. Remove the parking lock rod from the manual valve lever.

  Fig 33: Removing Parking Lock Rod From Manual Valve Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE MANUAL VALVE LEVER SHAFT OIL SEAL
1. Using a screwdriver, pry out the oil seal from the transaxle.
INSPECT INPUT SHAFT END PLAY (See INSPECTION )

Fig 34: Prying Out Oil Seal From Transaxle
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

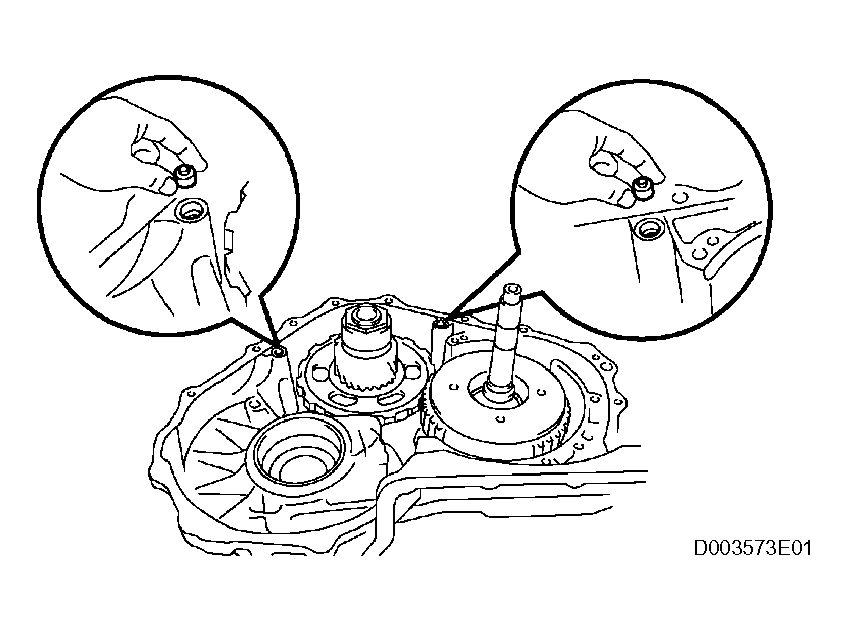

REMOVE NO. 1 TRANSAXLE CASE PLUG
1. Remove the 2 plugs.
2. Remove the 2 O-rings from the plug.

  Fig 35: Removing O-Rings From Plug
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSAXLE HOUSING

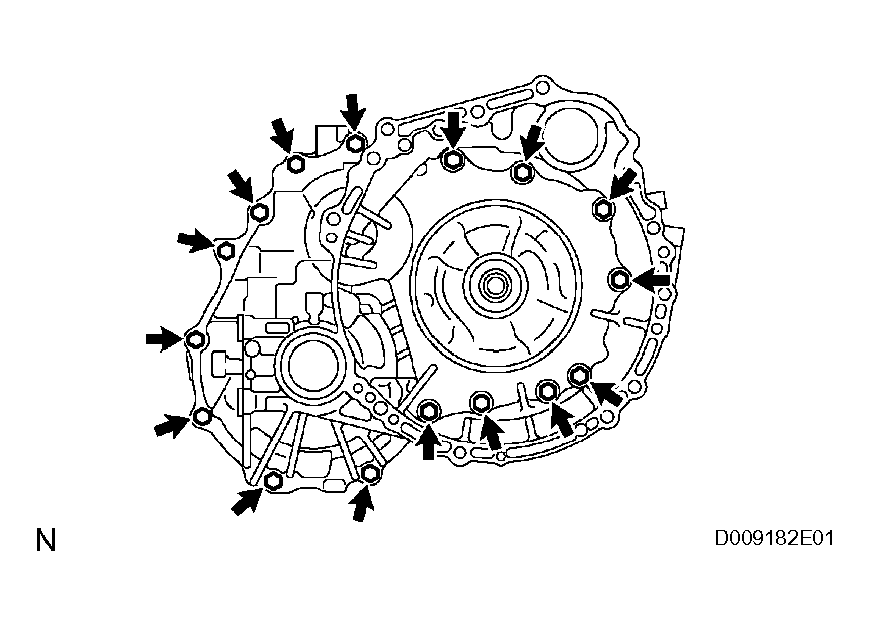

1. Remove the 16 bolts.
2. Tap on the circumference of the transaxle housing with a plastic-faced hammer to remove the transaxle housing from the transaxle.
  NOTE: Differential may be accidentally removed when the transaxle housing is removed.

  Fig 36: Removing Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

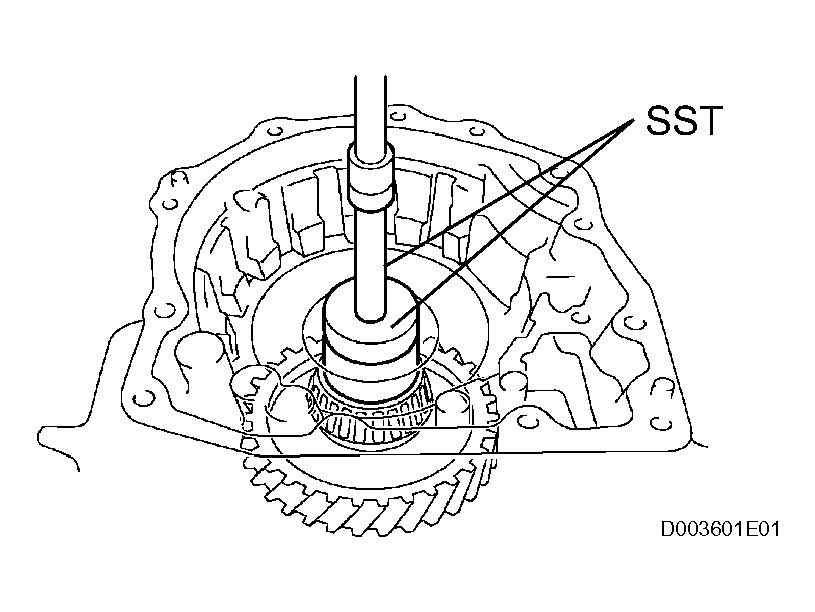

REMOVE UNDERDRIVE CYLINDRICAL ROLLER BEARING
1. Using SST, remove the cylindrical roller bearing from the transaxle.
  SST 09514-35011

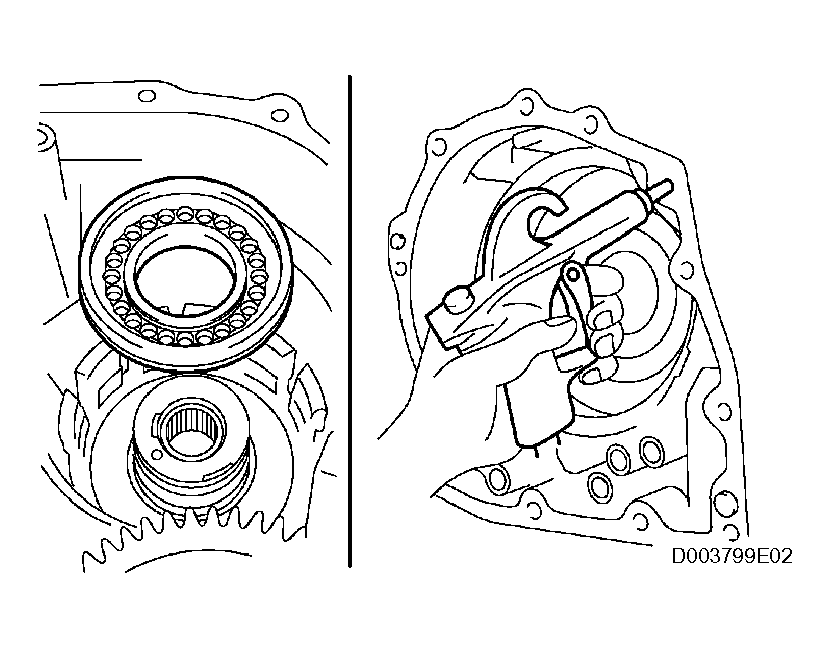

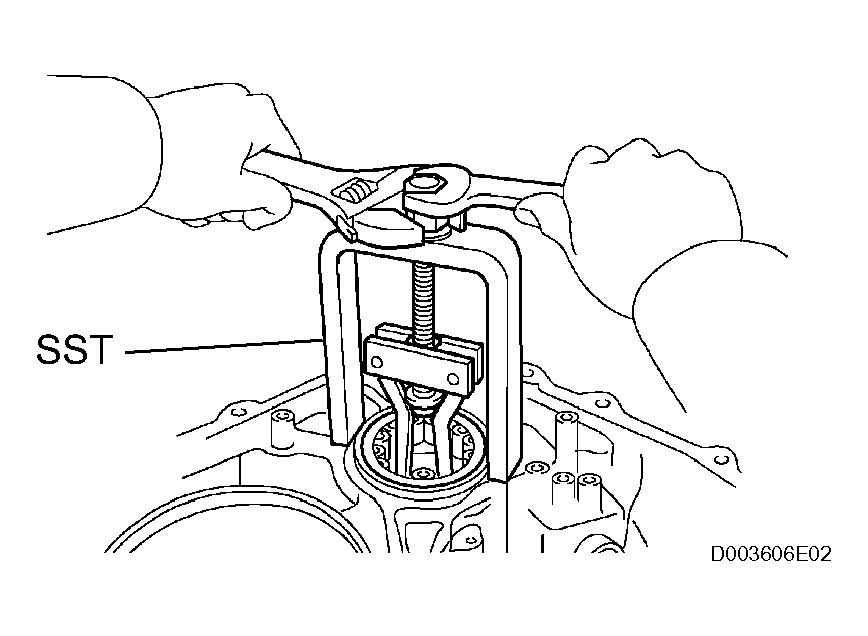

  Fig 37: Removing Cylindrical Roller Bearing From Transaxle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE UNDERDRIVE OUTPUT SHAFT OIL SEAL RING
1. Remove the oil seal ring from the transaxle housing.

  Fig 38: Removing Oil Seal Ring From Transaxle Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE OIL PUMP ASSEMBLY
1. Remove the 7 bolts and oil pump assembly from the transaxle.

  Fig 39: Identifying Oil Pump To Transaxle Case With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE THRUST NEEDLE ROLLER BEARING
1. Remove thrust needle roller bearing from the underdrive planetary gear.

  Fig 40: Removing Thrust Needle Roller Bearing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 2 THRUST BEARING UNDERDRIVE RACE
1. Remove the thrust bearing race from the underdrive planetary gear.

  Fig 41: Removing Thrust Bearing Race
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT DIFFERENTIAL ASSEMBLY
1. Remove the front differential from the transaxle.

  Fig 42: Removing Front Differential From Transaxle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE OVERDRIVE BRAKE GASKET
1. Remove the 2 overdrive brake gaskets from the transaxle.

  Fig 43: Removing Overdrive Brake Gaskets From Transaxle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FORWARD CLUTCH ASSEMBLY
1. Remove the forward clutch from the transaxle.

  Fig 44: Removing Forward Clutch From Transaxle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the thrust bearing from the forward clutch.

  Fig 45: Removing Thrust Bearing From Forward Clutch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

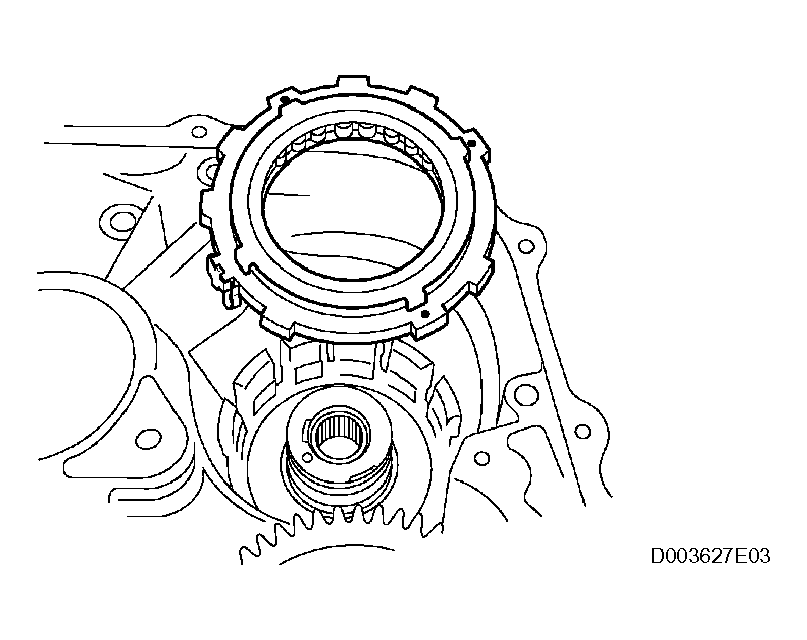

REMOVE MULTIPLE DISC CLUTCH CLUTCH HUB
1. Remove the thrust bearing, multiple clutch hub, needle roller bearing and bearing race from the transaxle.

  Fig 46: Removing Thrust Bearing, Multiple Clutch Hub, Needle Roller Bearing And Bearing Race
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

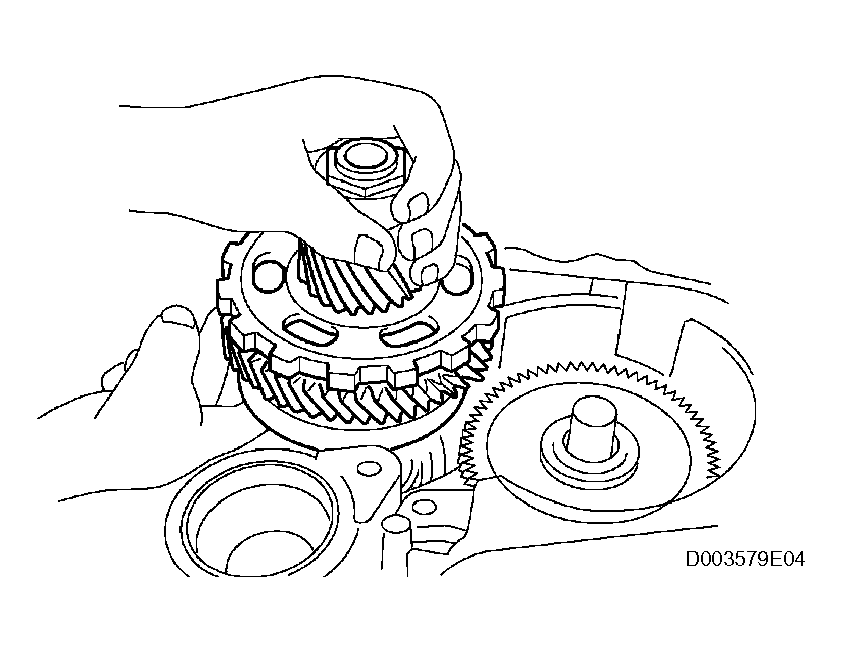

REMOVE UNDERDRIVE PLANETARY GEAR ASSEMBLY

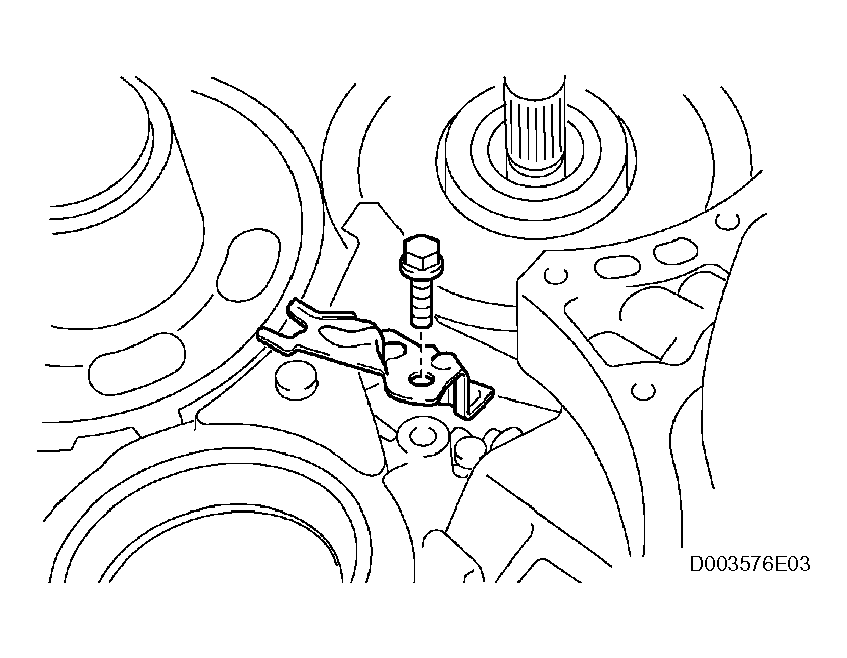

1. Remove the bolt and parking pawl shaft clamp.

  Fig 47: Removing Bolt And Parking Pawl Shaft Clamp

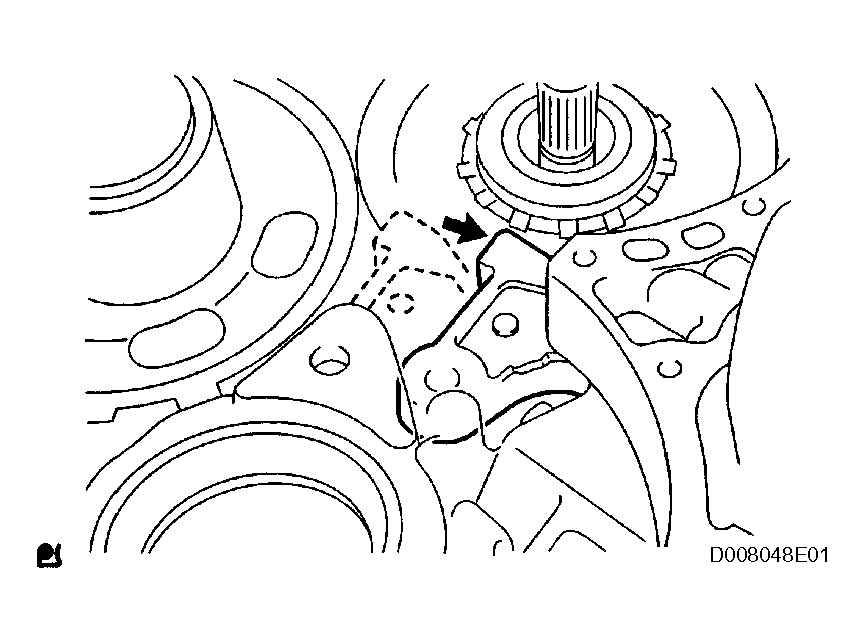

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

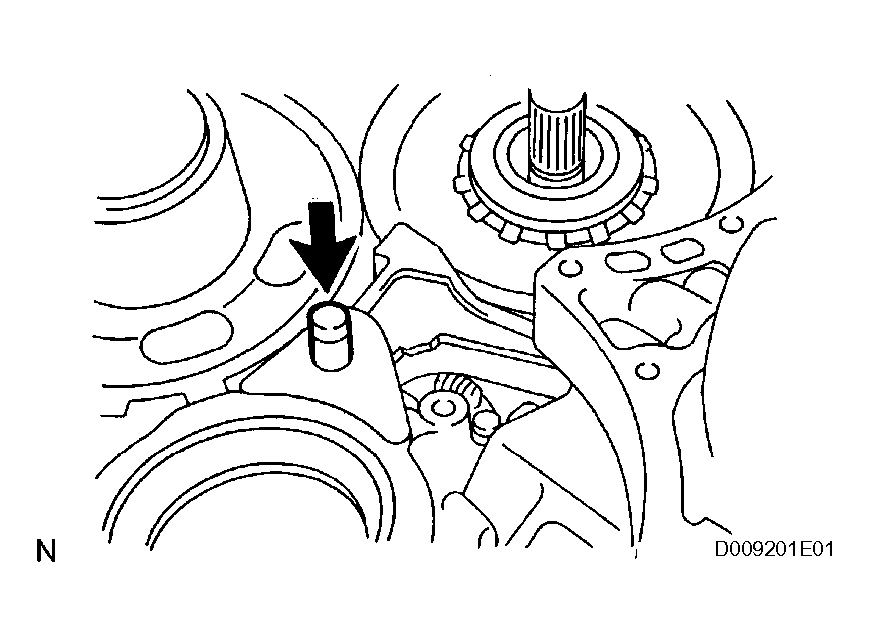

2. Remove the parking lock pawl shaft.

  Fig 48: Removing Parking Lock Pawl Shaft
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

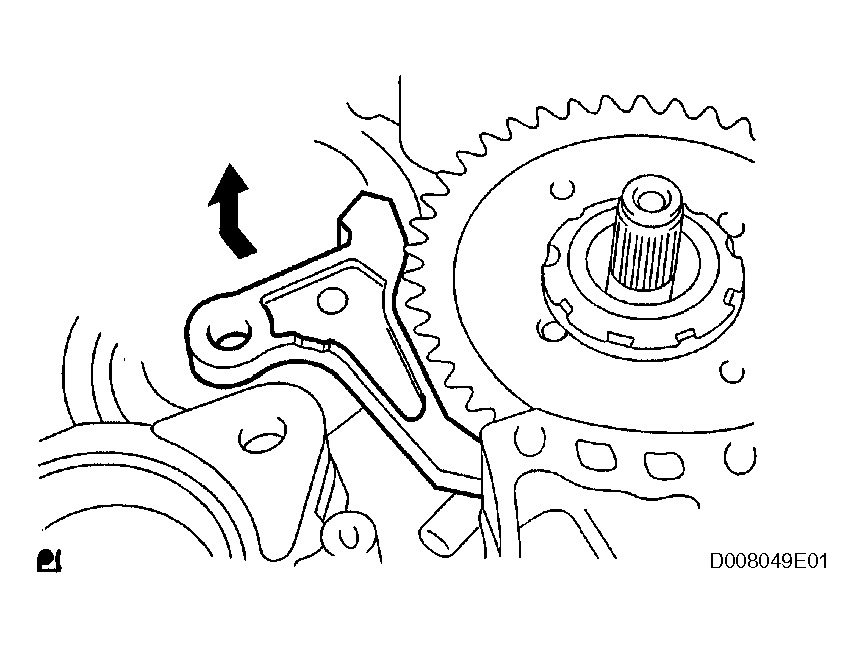

3. Push the parking lock pawl.
  HINT:

  Failure to do so will cause the interference when the underdrive planetary gear is removed.

  Fig 49: Pushing Parking Lock Pawl
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the underdrive planetary gear from the transaxle.
  NOTE: Be careful so that the underdrive planetary gear assembly will not fall out.

  Fig 50: Removing Underdrive Planetary Gear From Transaxle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the spring, pawl pin and parking lock pawl.

  Fig 51: Removing Spring, Pawl Pin And Parking Lock Pawl
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

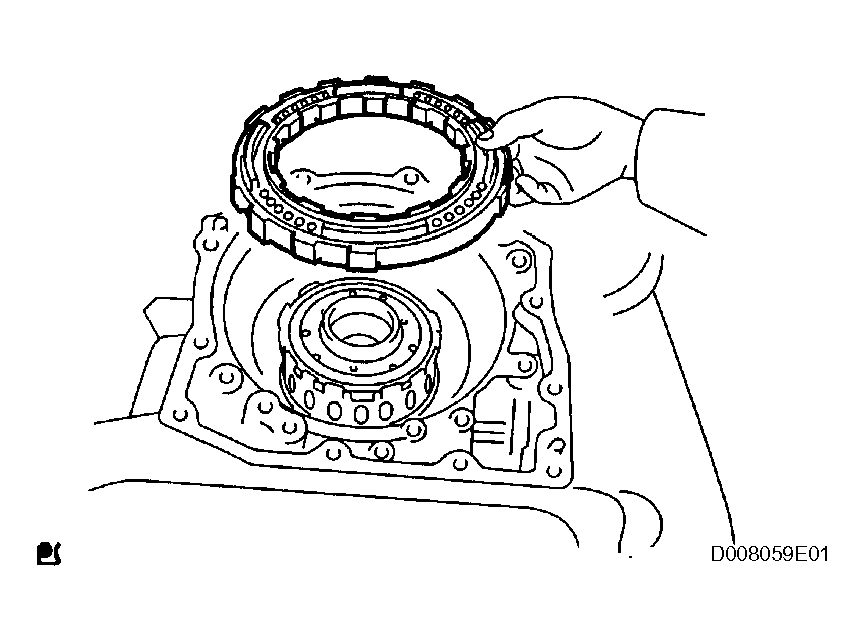

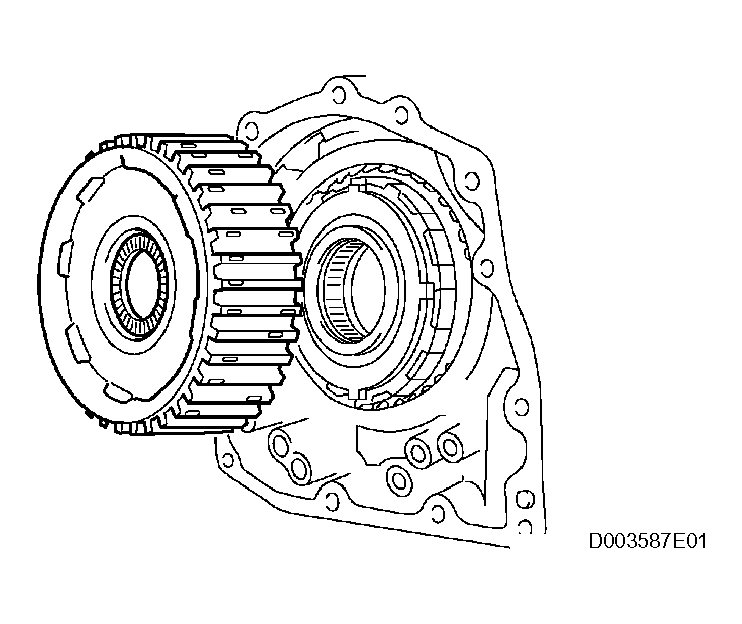

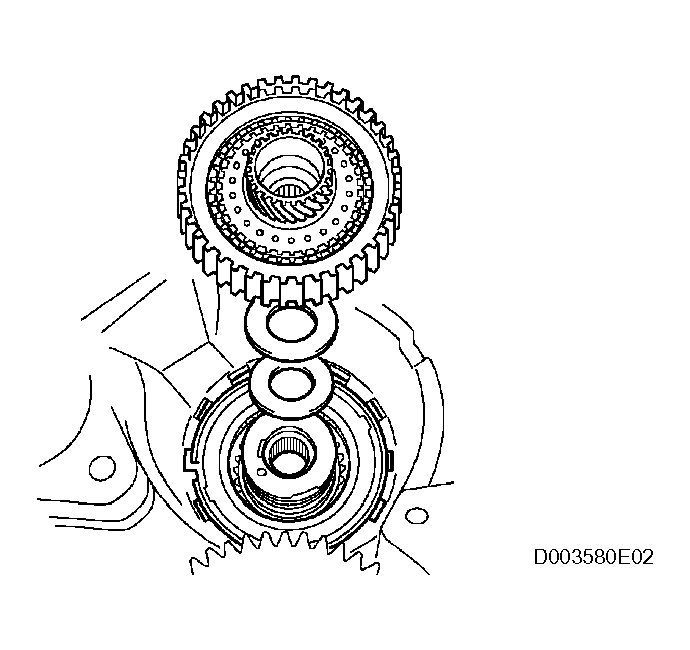

REMOVE UNDERDRIVE CLUTCH ASSEMBLY
1. Remove the underdrive clutch assembly, needle roller bearing, thrust bearing underdrive race from the transaxle.

  Fig 52: Removing Underdrive Clutch Assembly, Needle Roller Bearing, Thrust Bearing Underdrive Race
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

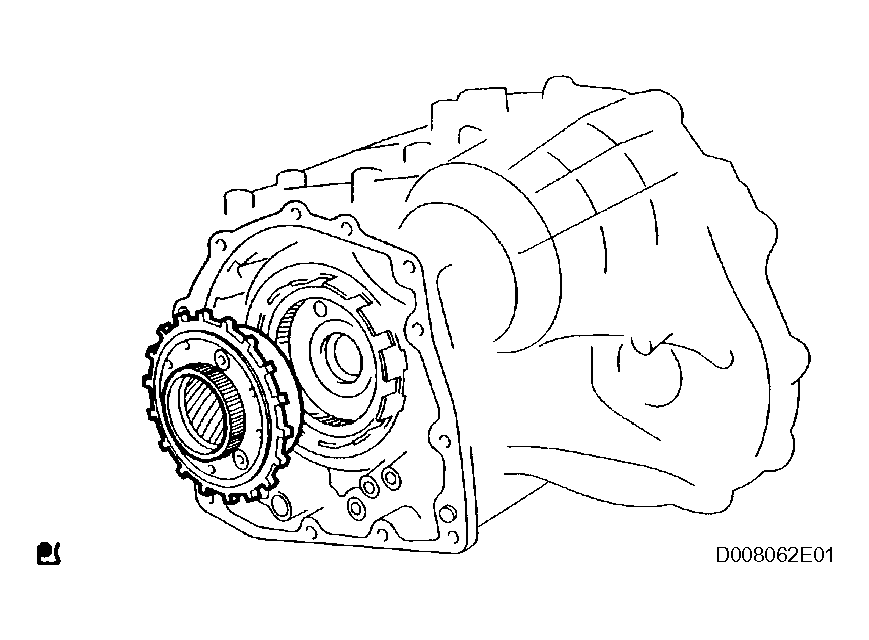

REMOVE UNDERDRIVE 1-WAY CLUTCH ASSEMBLY
1. Using a screwdriver, pry out the snap ring from the transaxle.

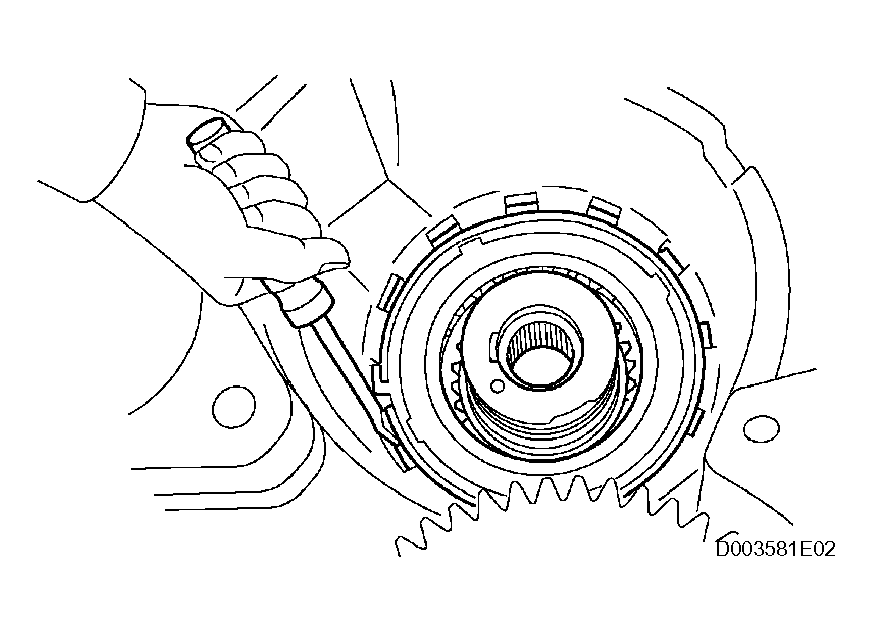

  Fig 53: Prying Out Snap Ring From Transaxle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 1-way clutch from the transaxle.

  Fig 54: Removing 1-Way Clutch From Transaxle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

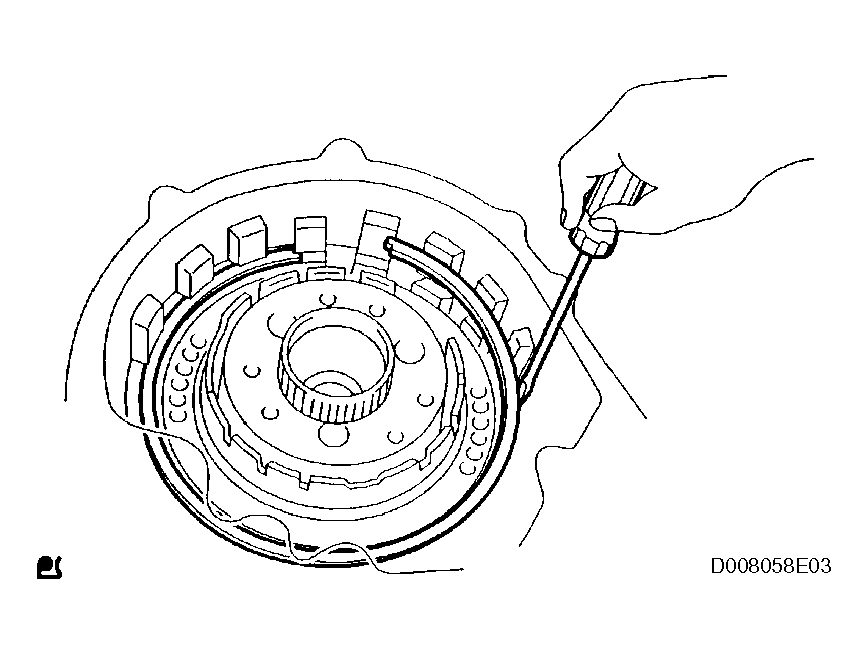

3. Remove the outer race retainer from the 1-way clutch.

  Fig 55: Removing Outer Race Retainer From 1-Way Clutch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 2 UNDERDRIVE CLUTCH DISC
1. Using a screwdriver, pry out the snap ring from the transaxle.

  Fig 56: Prying Out Snap Ring From Transaxle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the flange, 3 discs and 3 plates from the transaxle.
INSPECT NO. 2 UNDERDRIVE CLUTCH DISC (See INSPECTION )

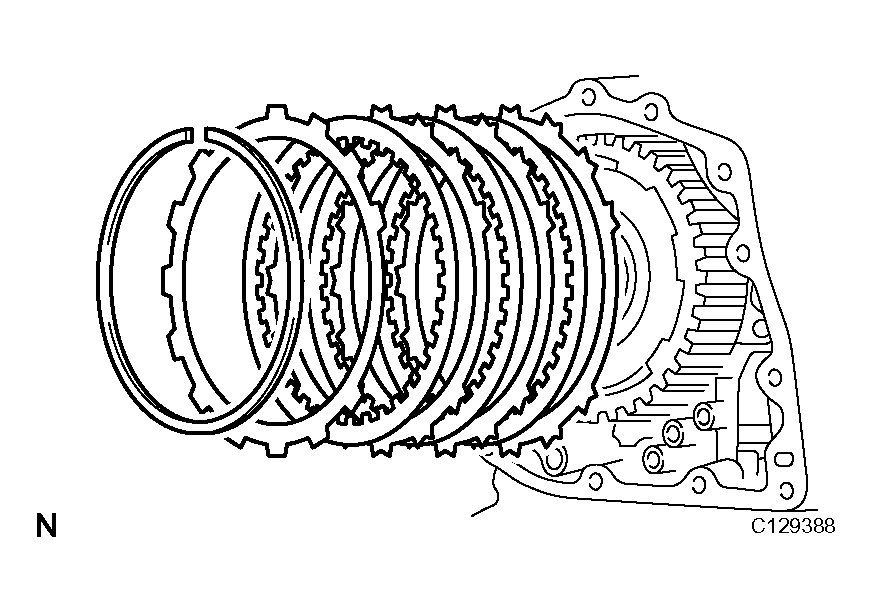

Fig 57: Removing Flange, Discs And Plates From Transaxle
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE UNDERDRIVE BRAKE RETURN SPRING SUB-ASSEMBLY
1. Using SST, a snap ring expander and press, remove the snap ring from the transaxle.
  SST 09387-00020

  Fig 58: Removing Snap Ring From Transaxle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the underdrive brake return spring from the underdrive brake piston.
INSPECT UNDERDRIVE BRAKE RETURN SPRING SUB-ASSEMBLY (See INSPECTION )

Fig 59: Removing Underdrive Brake Return Spring
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE UNDERDRIVE CLUTCH DRUM OIL SEAL RING
1. Remove the 2 oil seal rings from the transaxle.

  Fig 60: Removing Oil Seal Rings From Transaxle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 1 TRANSAXLE CASE PLUG

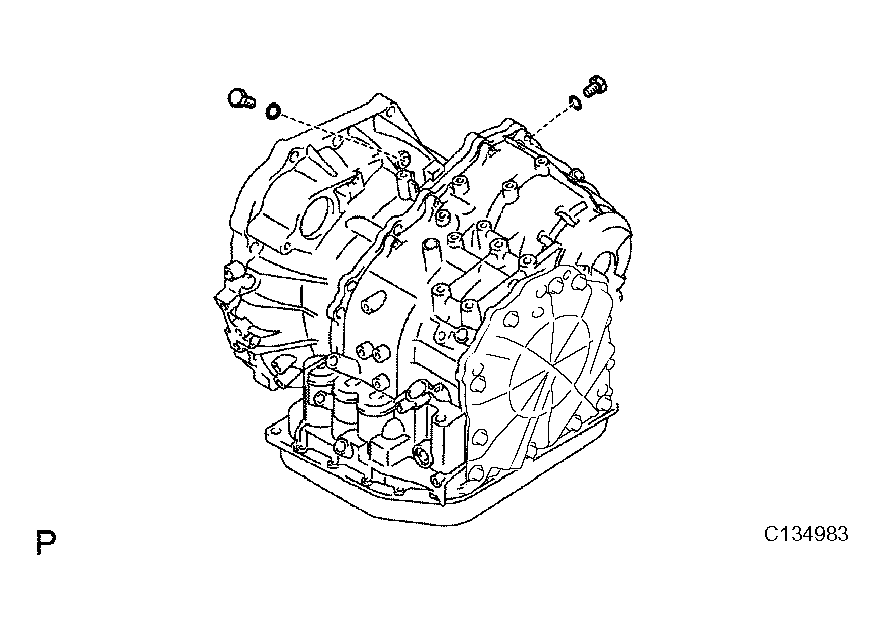

1. Remove the 2 plugs from the transaxle rear cover.
2. Remove the 2 O-rings from the 2 plugs.

  Fig 61: Removing O-Rings From Plugs
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR TRANSAXLE COVER SUBASSEMBLY
1. Remove the 11 bolts.
2. Tap the circumference of the rear cover with a plastic-faced hammer to remove the transaxle rear cover from the transaxle.

  Fig 62: Removing Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 2 outer rear clutch oil seal rings from the transaxle rear cover.

  Fig 63: Removing Outer Rear Clutch Oil Seal Rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Using a T30 "torx" socket wrench, remove the 2 screws and transaxle rear cover plate.

  Fig 64: Removing Screws And Transaxle Rear Cover Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Using SST, remove the needle-roller bearing from the transaxle rear cover.
  SST 09387-00041 (09387-01010, 09387-01030, 09387-01040)

  Fig 65: Removing Needle-Roller Bearing From Transaxle Rear Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE UNDERDRIVE BRAKE PISTON
1. Apply compressed air (392 kPa, 4.0 kgf/cm² , 57 psi) to the transaxle case to remove the underdrive brake piston.

  Fig 66: Removing Underdrive Brake Piston
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 O-rings from the underdrive brake piston.

  Fig 67: Removing O-Rings From Underdrive Brake Piston
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE BRAKE APPLY TUBE
1. Remove the bolt, clamp and 2 brake apply tubes.
2. Remove the brake apply tube from the clamp.
REMOVE FRONT CLUTCH APPLY TUBE

Fig 68: Removing Brake Apply Tube From Clamp
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 1 GOVERNOR APPLY GASKET
1. Using a screwdriver, remove the 2 governor apply gaskets.

  Fig 69: Removing Governor Apply Gaskets
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

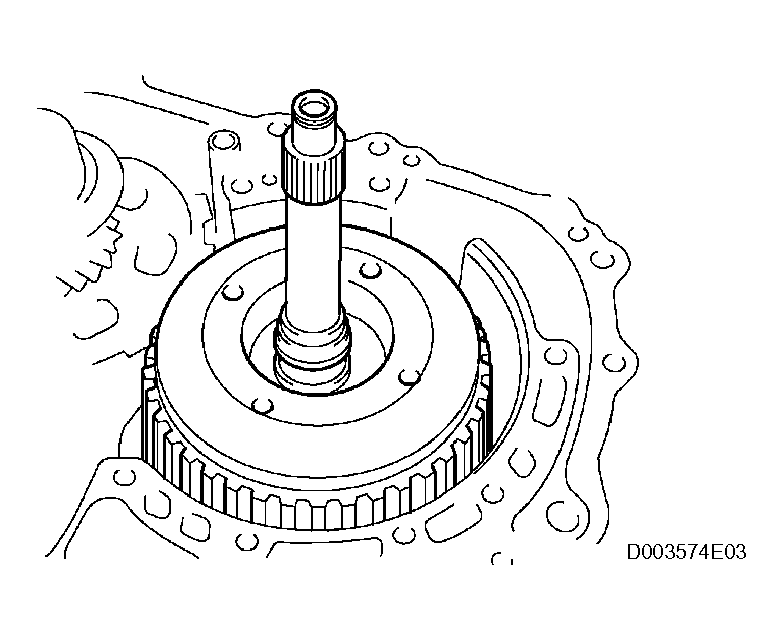

REMOVE DIRECT CLUTCH ASSEMBLY
1. Remove the thrust bearing and direct clutch from the transaxle.

  Fig 70: Removing Thrust Bearing And Direct Clutch From Transaxle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the bearing race from the direct clutch.

  Fig 71: Removing Bearing Race From Direct Clutch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR PLANETARY SUN GEAR ASSEMBLY
1. Remove the rear planetary sun gear from the transaxle.

  Fig 72: Removing Rear Planetary Sun Gear From Transaxle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the rear planetary sun gear thrust bearing from the rear planetary sun gear.

  Fig 73: Removing Rear Planetary Sun Gear Thrust Bearing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the No. 1 thrust washer and 1-way clutch thrust bearing from the rear planetary sun gear.

  Fig 74: Removing No. 1 Thrust Washer And 1-Way Clutch Thrust Bearing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE 1-WAY CLUTCH ASSEMBLY
1. Remove the 1-way clutch from the transaxle.

  Fig 75: Removing 1-Way Clutch From Transaxle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 1-way clutch inner race from the 1-way clutch.

  Fig 76: Removing 1-Way Clutch Inner Race From 1-Way Clutch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE 1-WAY CLUTCH SLEEVE OUTER
REMOVE 2ND BRAKE CLUTCH DISC
1. Using a screwdriver, remove the 2nd brake hole snap ring.

  Fig 77: Removing 2Nd Brake Hole Snap Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

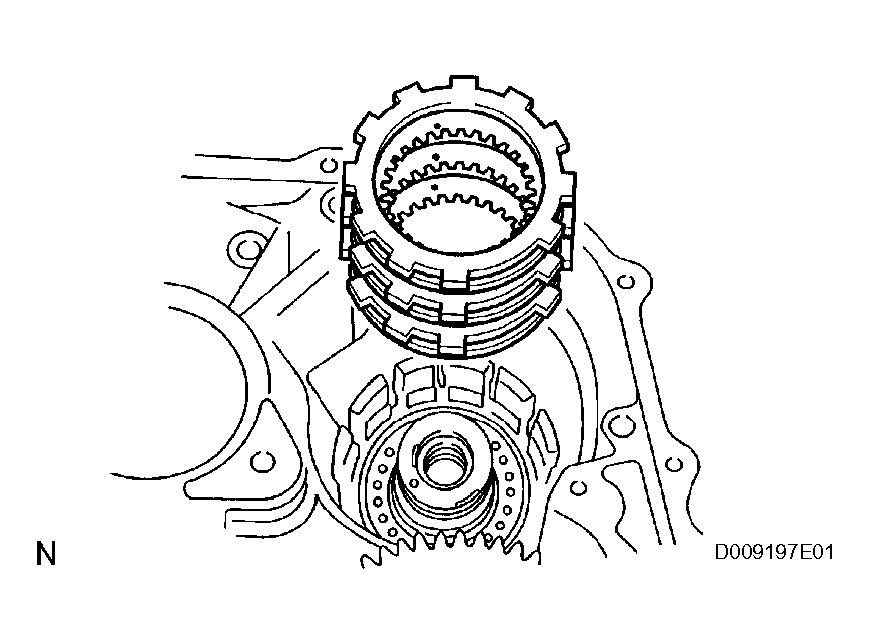

2. Remove the flange, 3 discs and 3 plates from the transaxle.
INSPECT 2ND BRAKE CLUTCH DISC (See INSPECTION )

Fig 78: Removing Flange, Discs And Plates From Transaxle
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE 2ND BRAKE PISTON ASSEMBLY
1. Using a screwdriver, pry out the snap ring.

  Fig 79: Prying Out Snap Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2nd brake piston from the transaxle.

  Fig 80: Removing 2Nd Brake Piston From Transaxle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE 1ST AND REVERSE BRAKE CLUTCH DISC
1. Remove the flange, 5 discs and 5 plates from the transaxle.
INSPECT 1ST AND REVERSE BRAKE CLUTCH DISC (See INSPECTION )

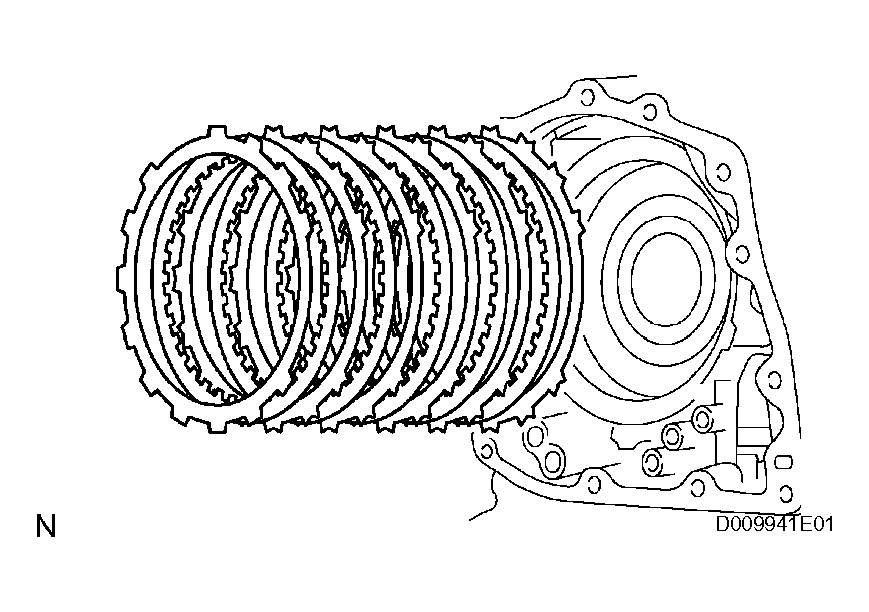

Fig 81: Removing Flange, Discs And Plates From Transaxle
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR PLANETARY GEAR ASSEMBLY
1. Using a screwdriver, pry out the snap ring from the brake hub.

  Fig 82: Prying Out Snap Ring From Brake Hub
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the rear planetary gear from the transaxle.

  Fig 83: Removing Rear Planetary Gear From Transaxle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

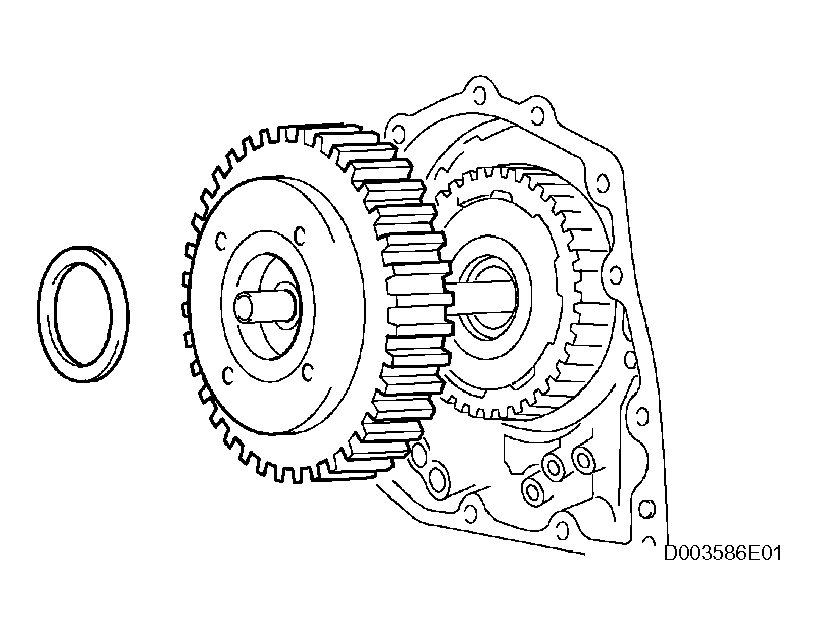

3. Remove the thrust washer from the rear planetary gear.

  Fig 84: Removing Thrust Washer From Rear Planetary Gear
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the thrust bearing race from the rear planetary gear.

  Fig 85: Removing Thrust Bearing Race From Rear Planetary Gear
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE INPUT SUN GEAR

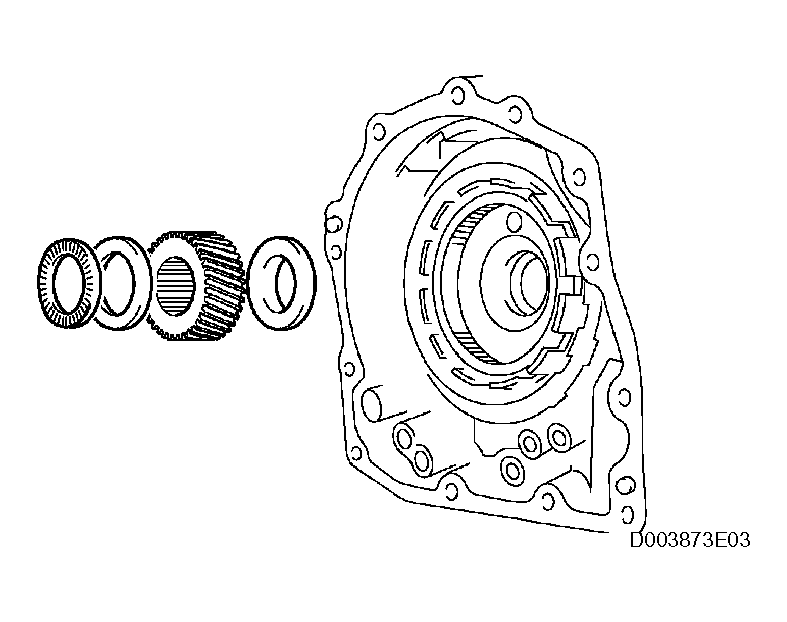

1. Remove the 2 thrust bearings, bearing race and input sun gear from the transaxle.

  Fig 86: Removing Thrust Bearings, Bearing Race And Input Sun Gear From Transaxle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT PLANETARY GEAR ASSEMBLY
1. Using a chisel and hammer, unstake the lock washer.
  NOTE: Push down all claws of the washer. Otherwise SST cannot be fully pressed against the nut and cannot loosen the nut.

  Fig 87: Unstaking Lock Washer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST, remove the nut.
  SST 09387-00030, 09387-00080

  Fig 88: Removing/Installing Front Planetary Gear Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using SST and a press, remove the front planetary gear from the counter drive gear.
  SST 09950-60010 (09951-00450)

  Fig 89: Removing Front Planetary Gear
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the front planetary gear from the brake hub.

  Fig 90: Removing Front Planetary Gear From Brake Hub
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT PLANETARY RING GEAR
1. Using a screwdriver, pry out the brake hub snap ring and front planetary ring gear from the brake hub.

  Fig 91: Prying Out Brake Hub Snap Ring And Front Planetary Ring Gear
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE 1ST AND REVERSE BRAKE PISTON
1. Using SST, a press and ring expander, remove the snap ring and piston return spring.
  SST 09387-00070
  NOTE:
  - Stop the press when the spring sheet is lowered 1 to 2 mm (0.039 to 0.078 in.) from the snap ring groove, preventing the spring sheet from deforming.
  - Do not expand the snap ring excessively.

    Fig 92: Compressing Return Spring Using SST
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

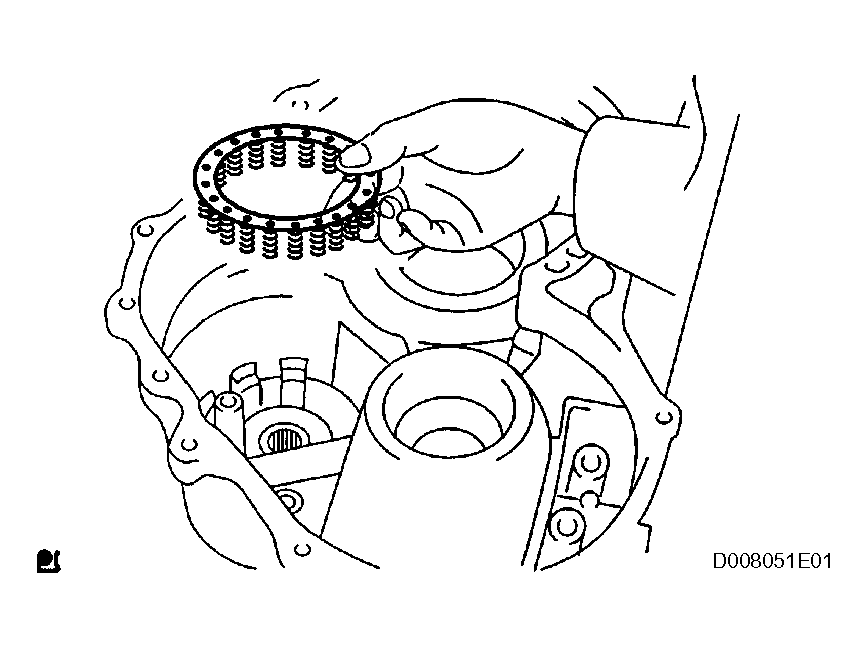

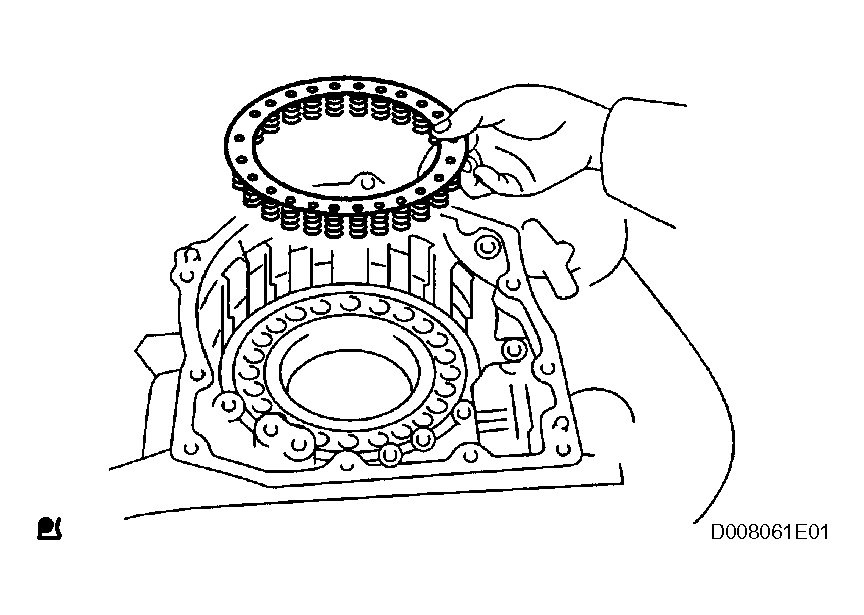

2. Remove the 1st and reverse brake return spring from the 1st and reverse brake piston.

  Fig 93: Removing 1St And Reverse Brake Return Spring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Apply compressed air (392 kPa, 4.0 kgf/cm² , 57 psi) to the transaxle to remove the 1st and reverse brake piston.
  NOTE:
  - Applying compressed air may cause the piston to jump out. When removing the piston, hold it with your hand using a waste cloth.
  - Make sure not to spatter ATF when applying compressed air.

    Fig 94: Applying Compressed Air To Transaxle
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the 2 O-rings from the 1st and reverse brake piston.
INSPECT 1ST AND REVERSE BRAKE RETURN SPRING SUB-ASSEMBLY (See INSPECTION )

Fig 95: Removing O-Rings
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE COUNTER DRIVE GEAR
1. Using SST and a press, press out the counter drive gear from the transaxle.
  SST 09950-60010 (09951-00600), 09950-70010 (09951-07100)

  Fig 96: Pressing Out Counter Drive Gear
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. As shown in the illustration, tighten the 2 bolts evenly and make a clearance of approximately. 20.0 mm (0.797 in.) between the counter drive gear and the inner race.

  Fig 97: Tightening Bolts Evenly And Checking Clearance Between Counter Drive Gear And Inner Race
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using SST, remove the tapered roller bearing.
  SST 09950-60010 (09951-00600), 09950-40011 (09951-04010, 09952-04010, 09953-04020, 09954-04010, 09955-04011, 09958-04011)

  Fig 98: Removing Tapered Roller Bearing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Using a brass bar and hammer, tap out the 2 counter drive gear bearing outer races from the transaxle.

  Fig 99: Taping Out Counter Drive Gear Bearing Outer Races
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE COUNTER DRIVE GEAR HOLE SNAP RING
1. Using a screwdriver, pry out the snap ring from the transaxle.
REMOVE DIFFERENTIAL GEAR LUBE APPLY TUBE
1. Remove the bolt, the transaxle apply tube clamp and the differential gear lube apply tube from the transaxle.

  Fig 101: Removing Differential Gear Lube Apply Tube
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
