Automatic Transaxle Unit: Components

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

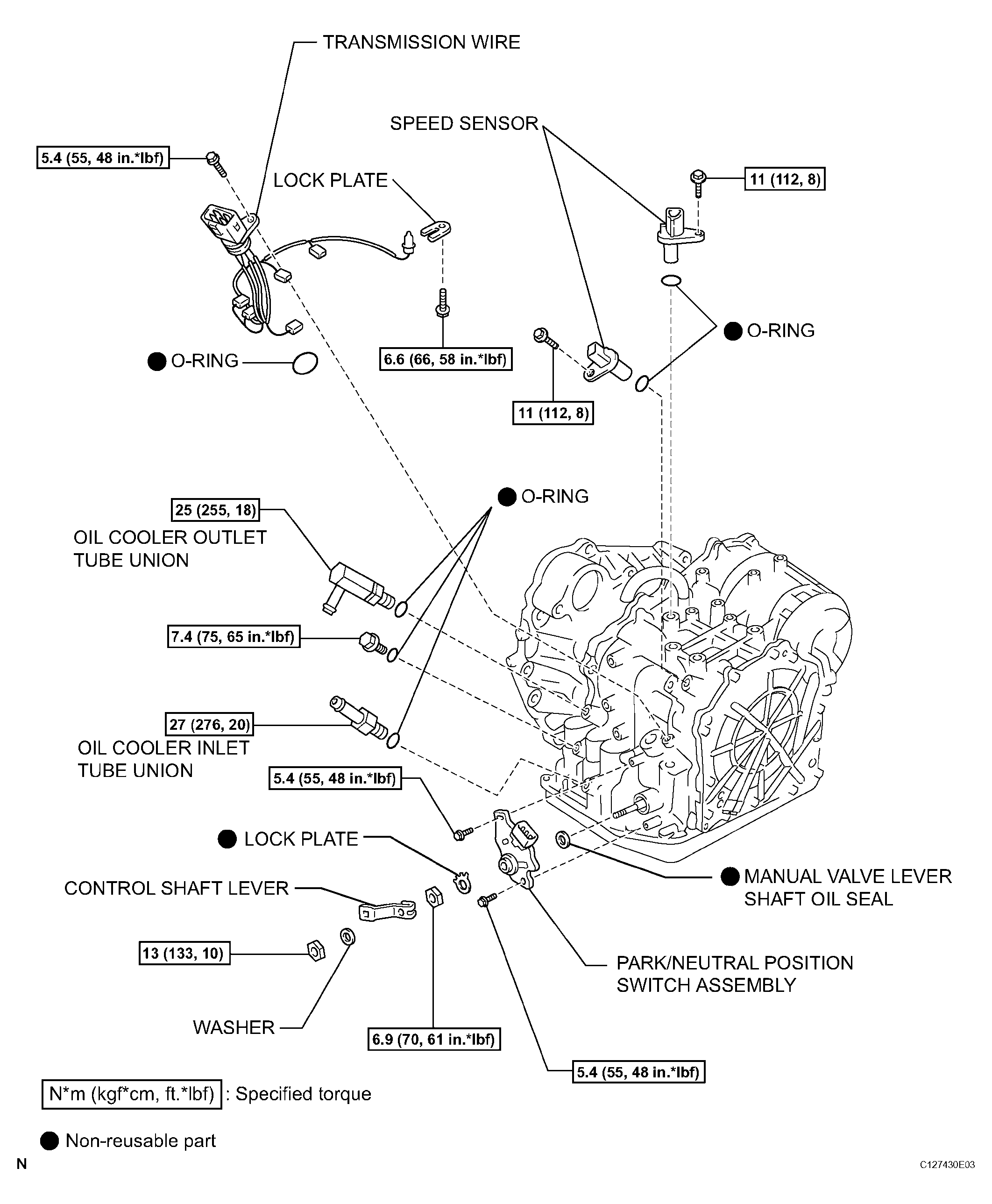

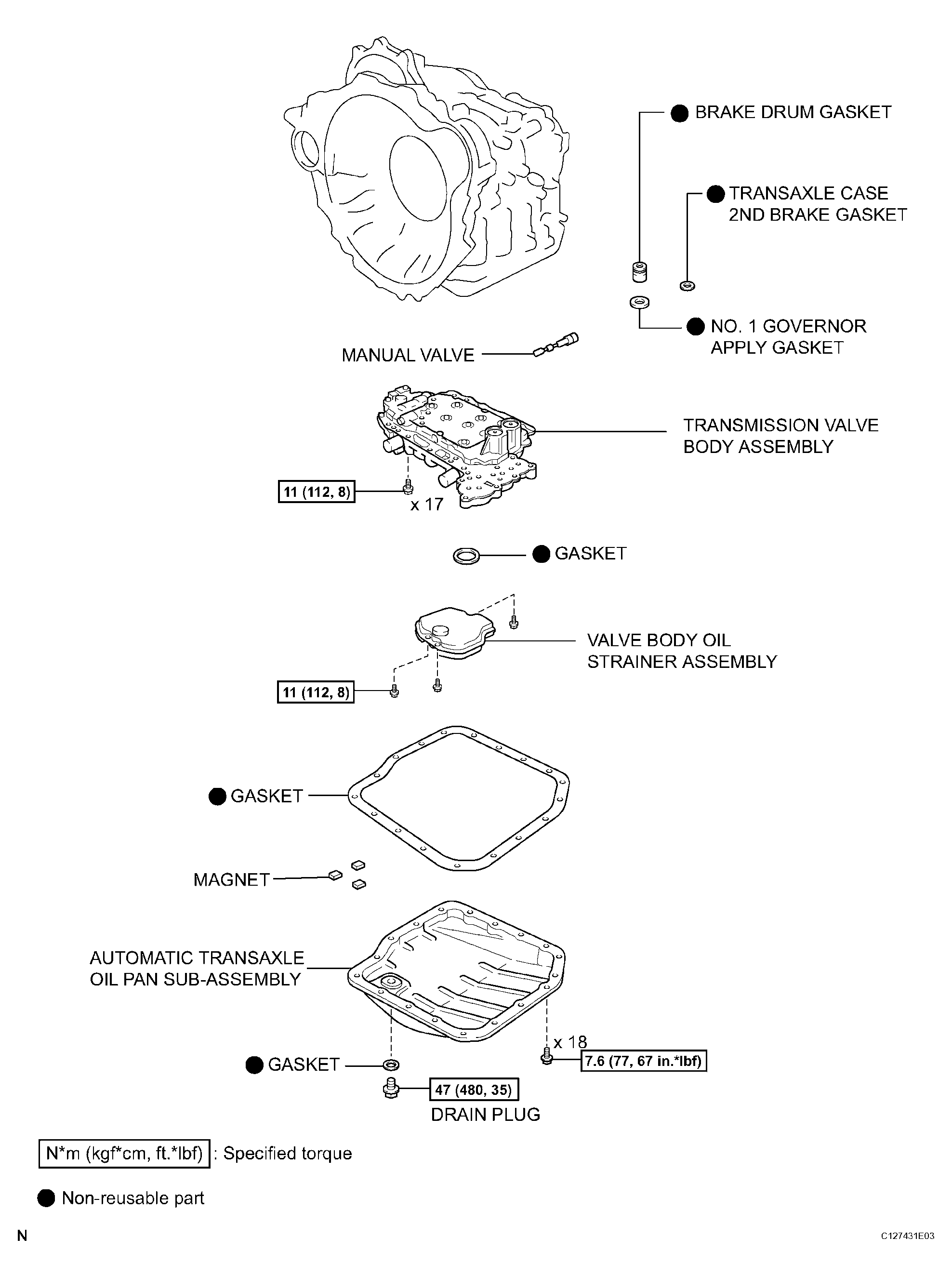

Fig 1: Automatic Transaxle Unit Components & Torque Specification (1 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

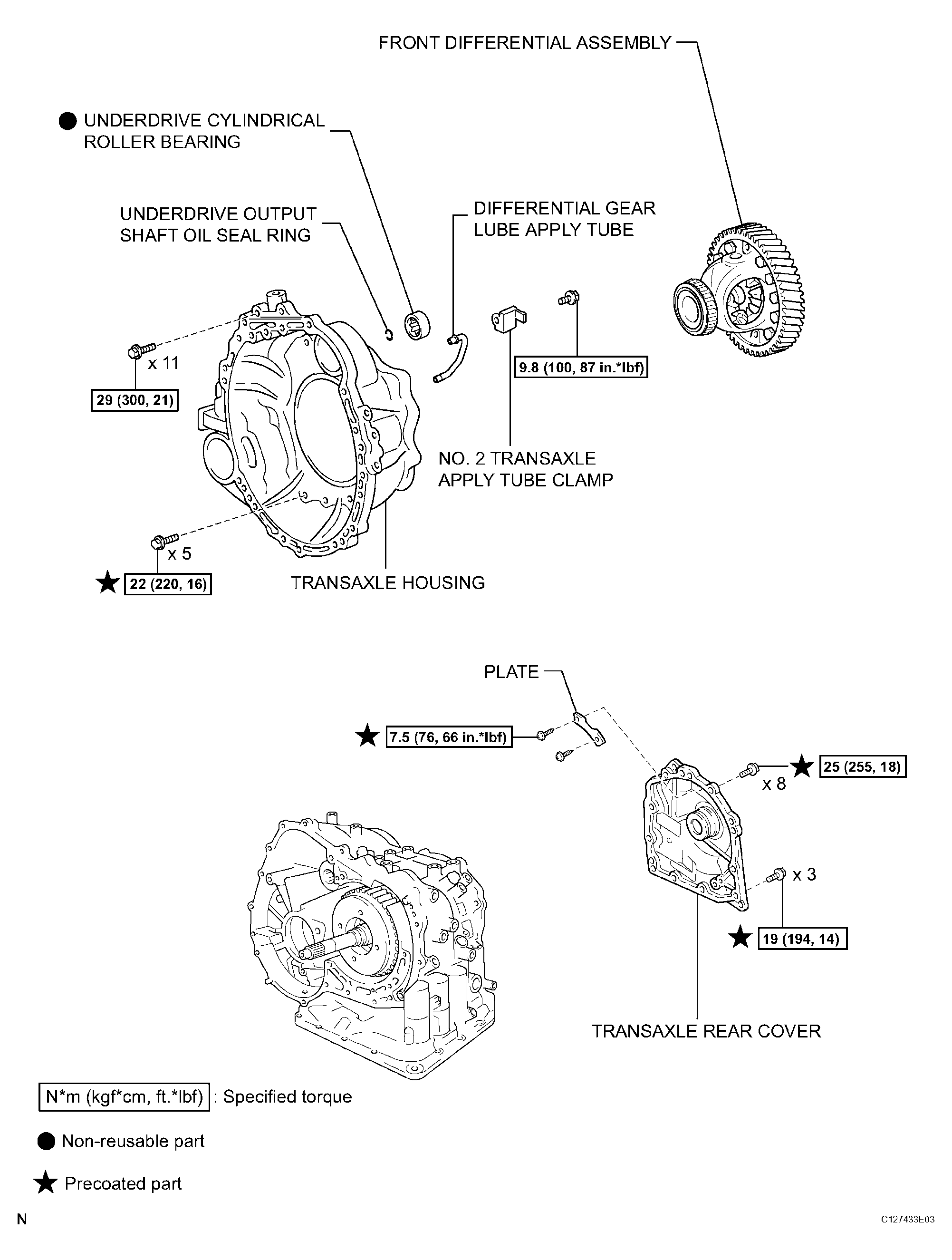

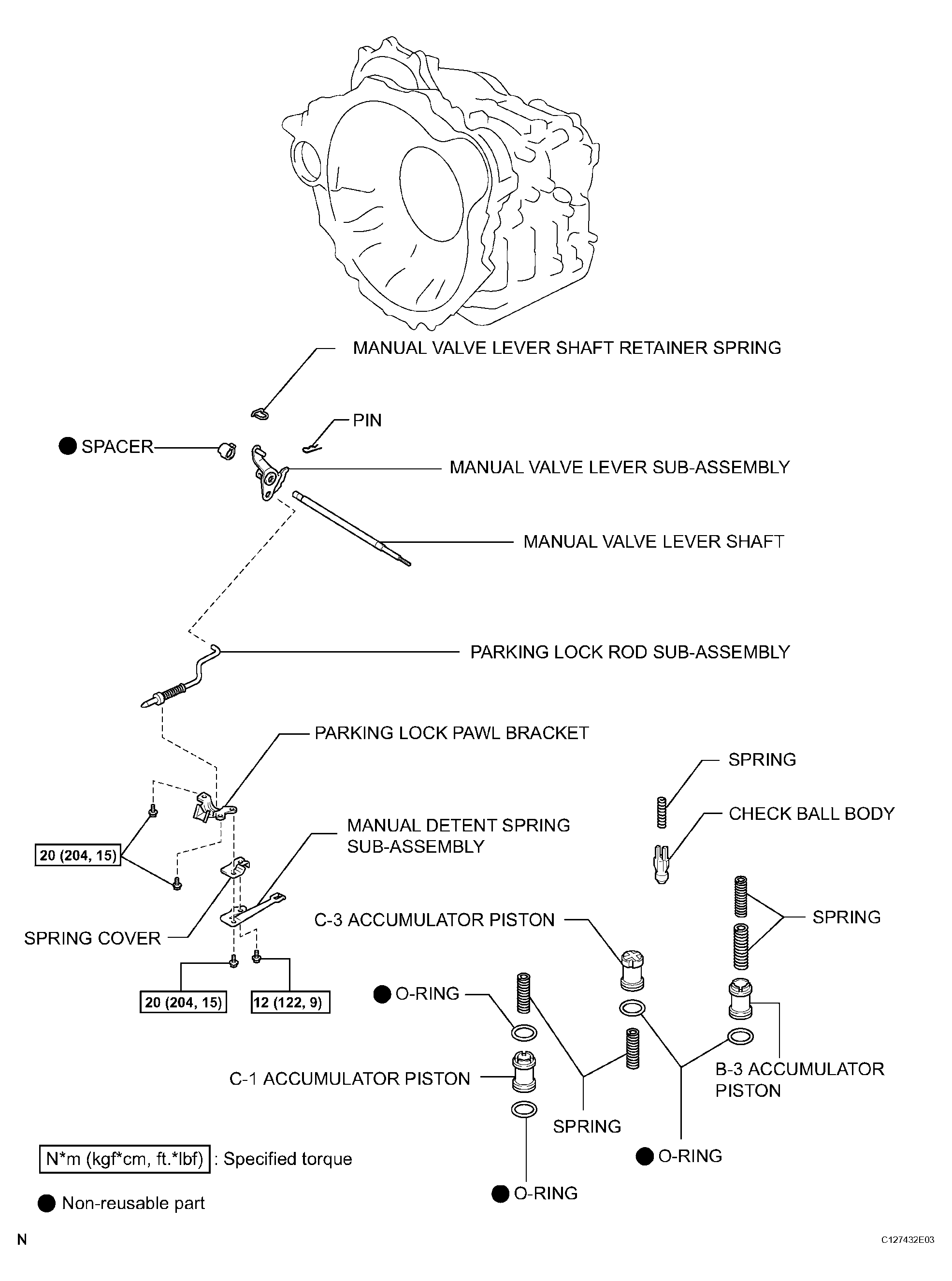

Fig 2: Automatic Transaxle Unit Components & Torque Specification (2 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

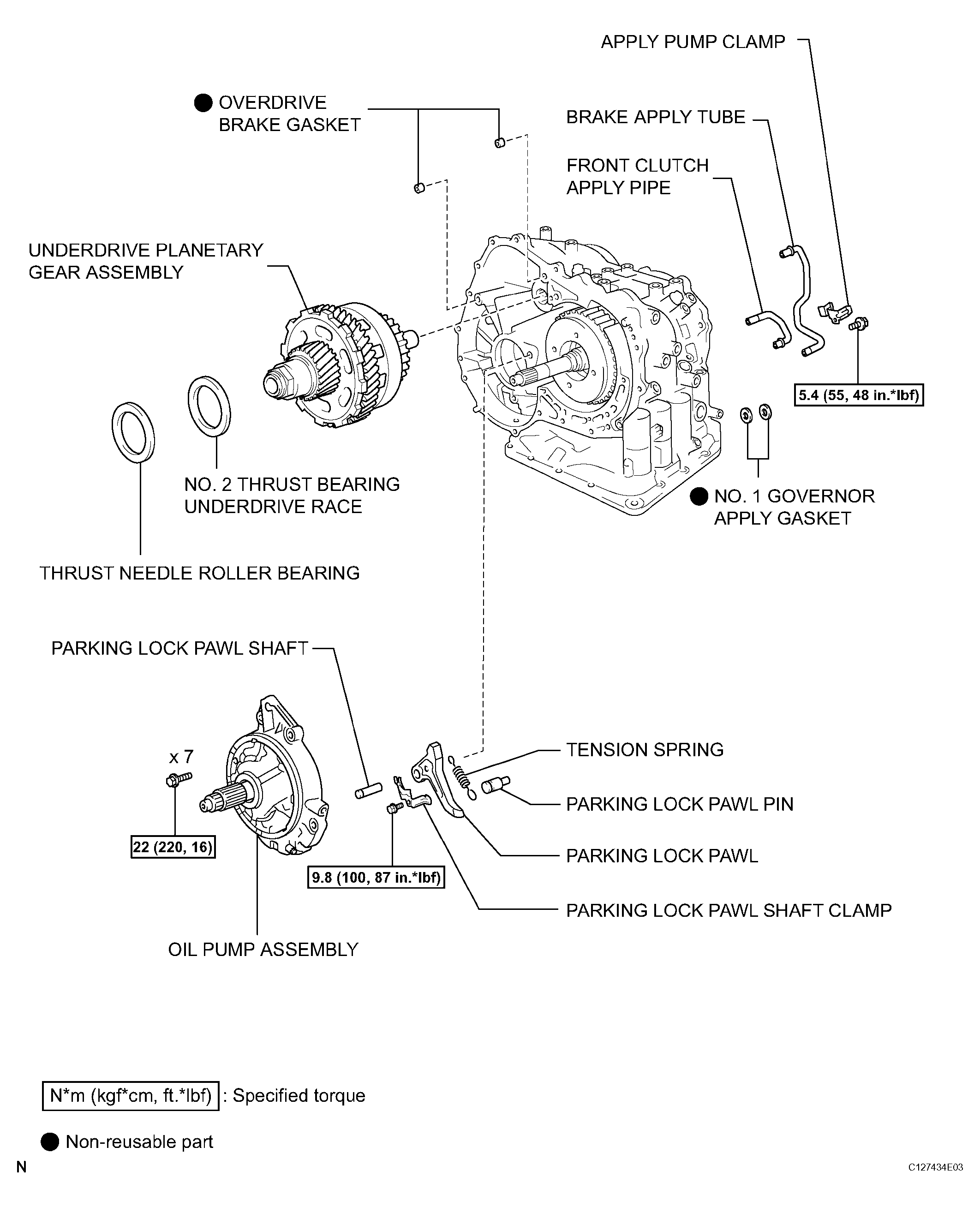

Fig 3: Automatic Transaxle Unit Components & Torque Specification (3 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

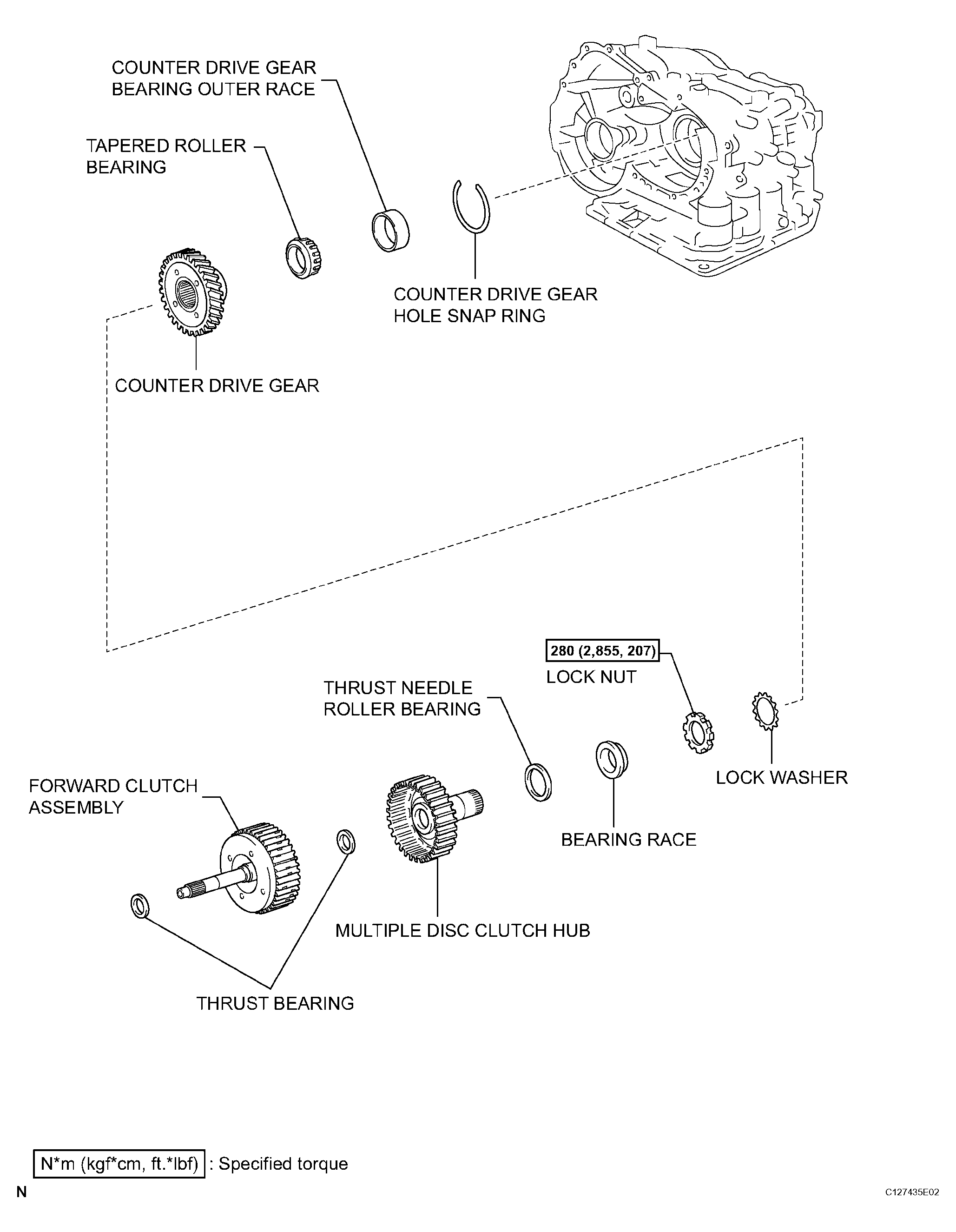

Fig 4: Automatic Transaxle Unit Components & Torque Specification (4 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

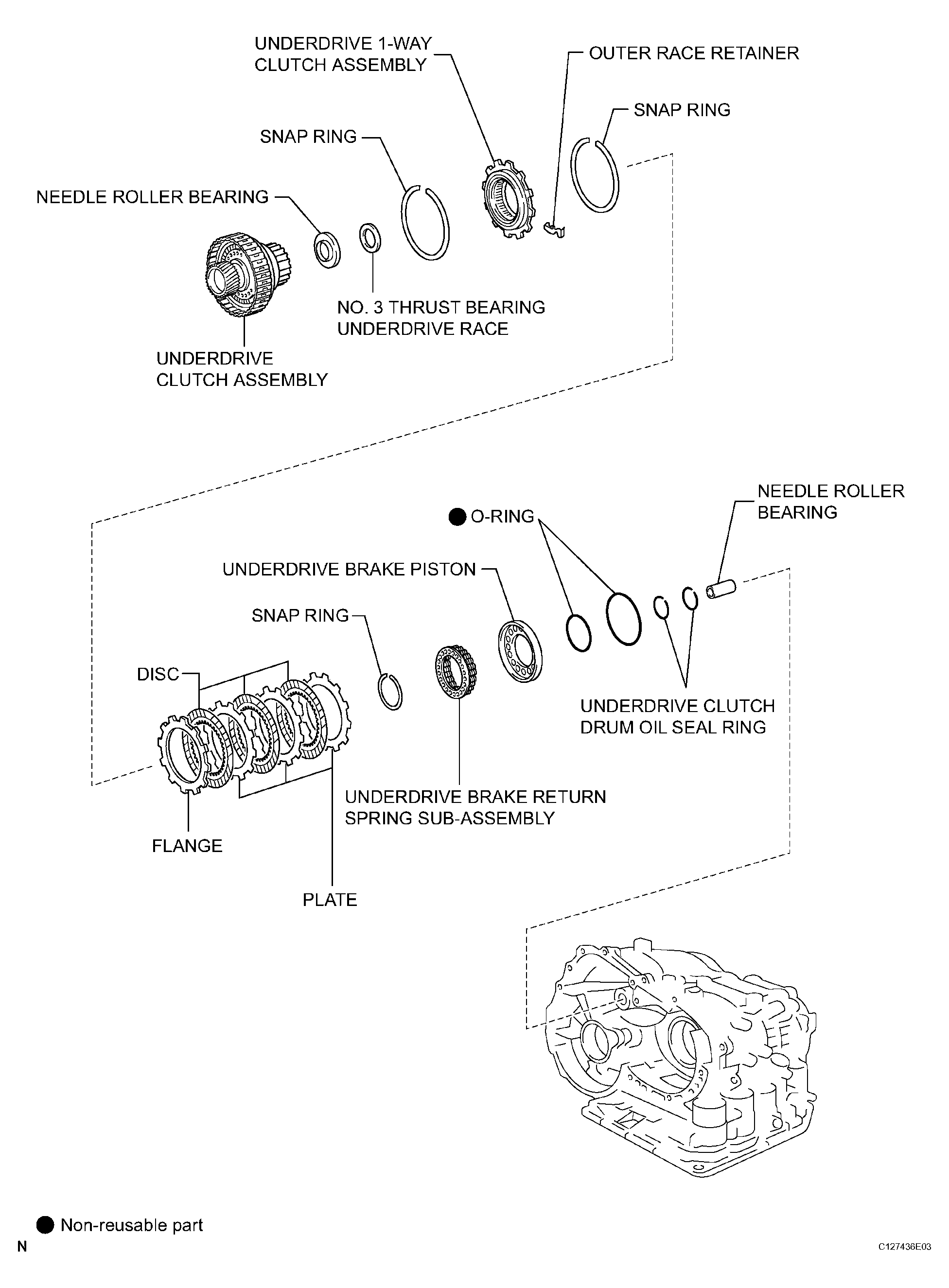

Fig 5: Automatic Transaxle Unit Components & Torque Specification (5 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

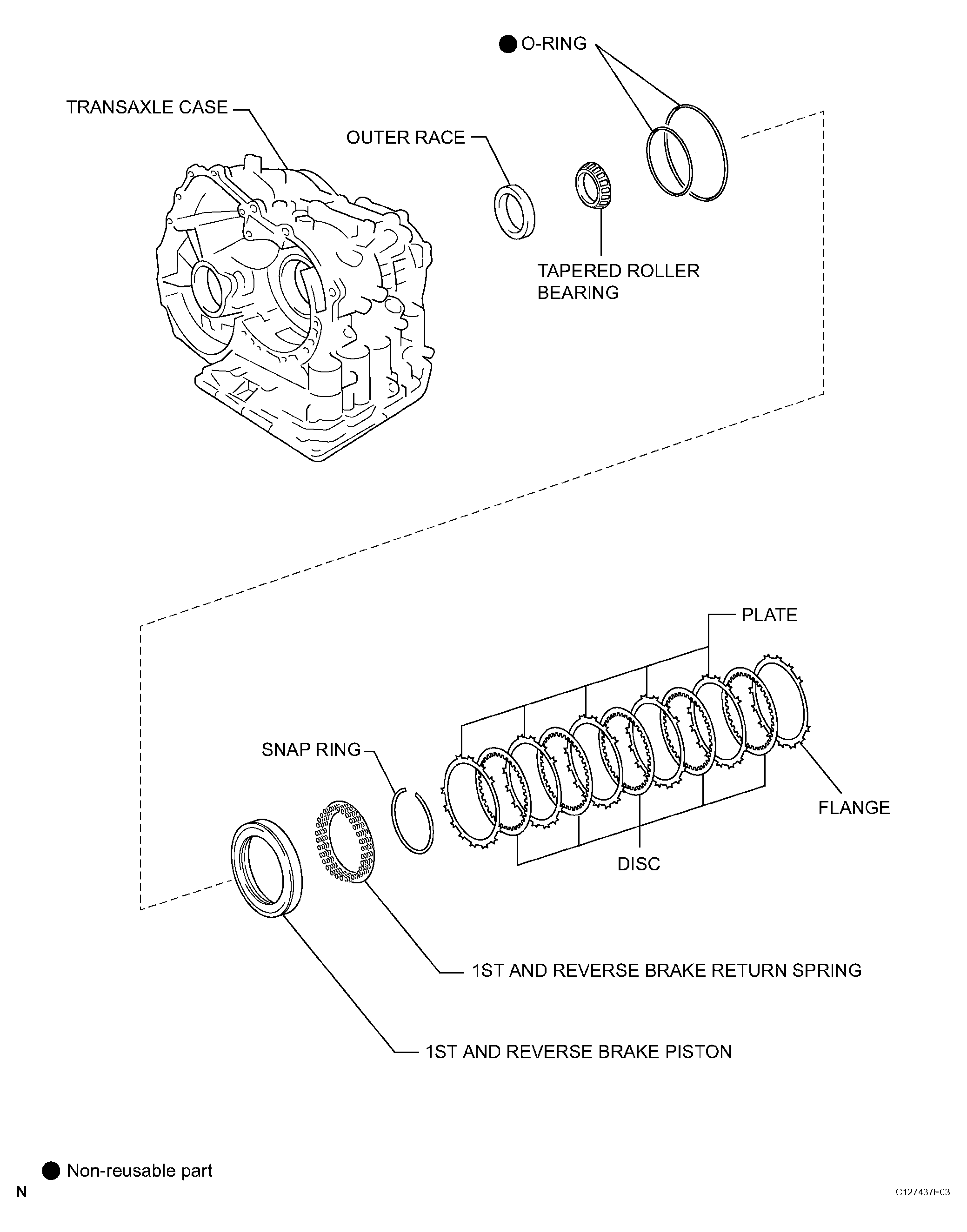

Fig 6: Automatic Transaxle Unit Components & Torque Specification (6 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

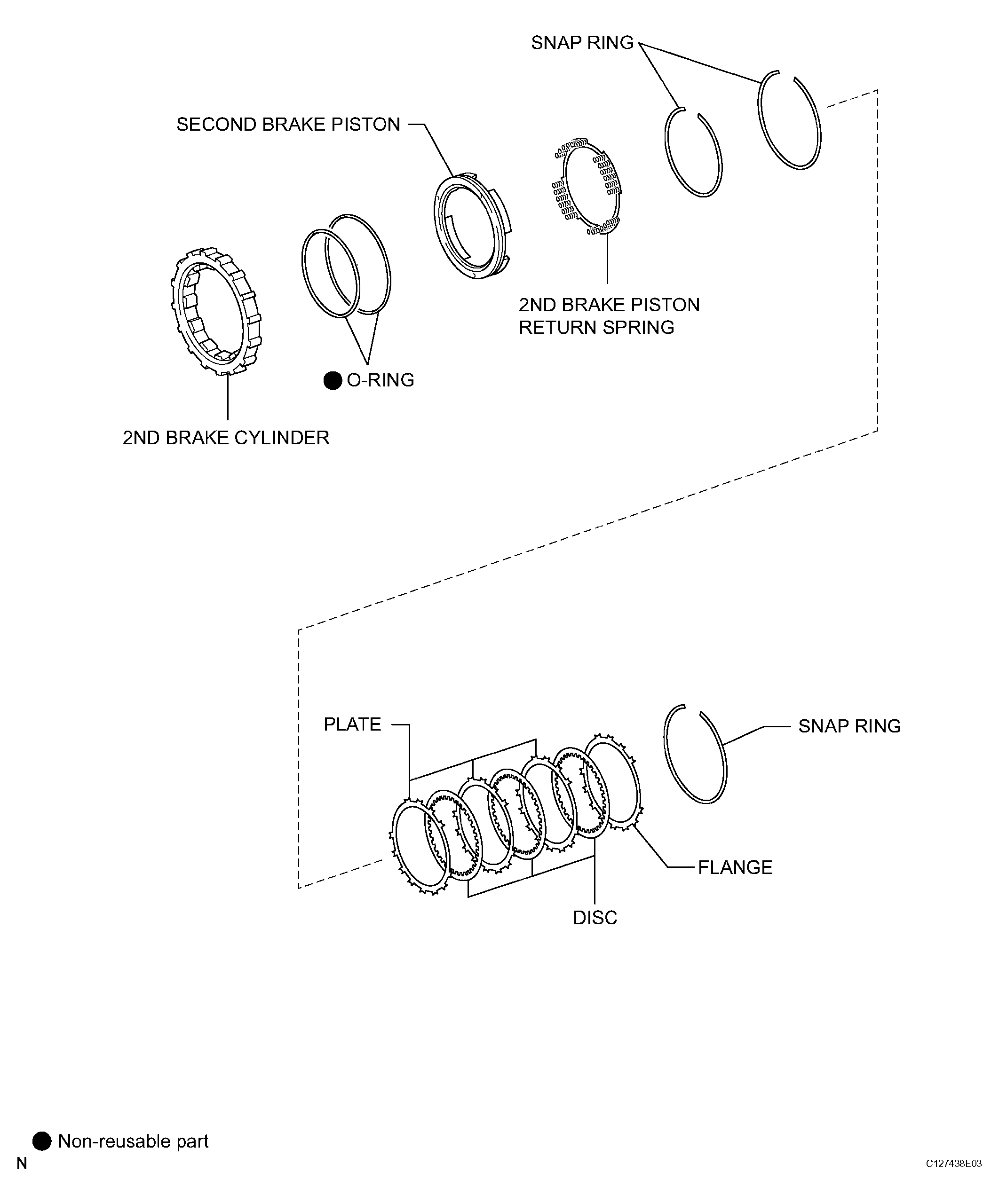

Fig 7: Automatic Transaxle Unit Components & Torque Specification (7 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

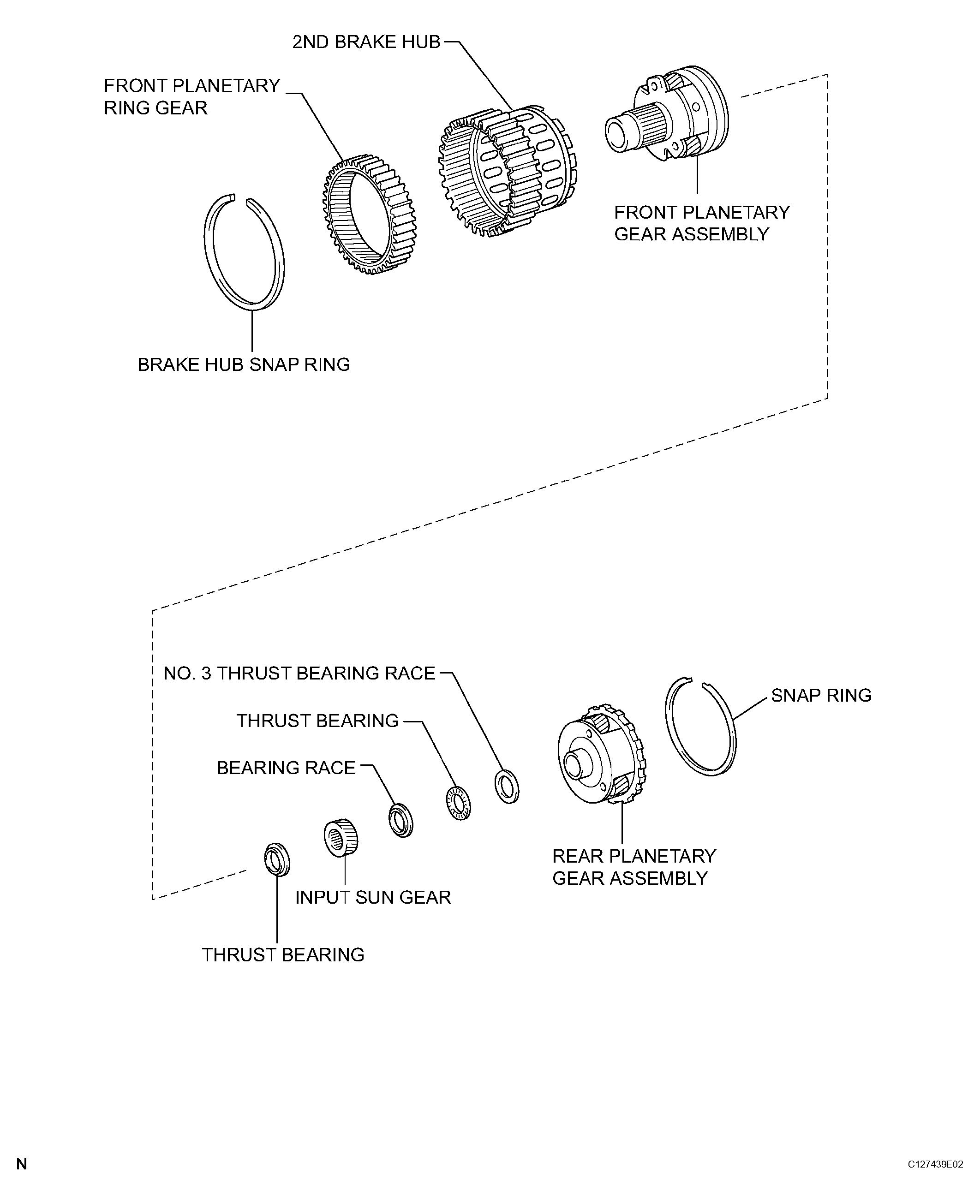

Fig 8: Automatic Transaxle Unit Components & Torque Specification (8 Of 11)

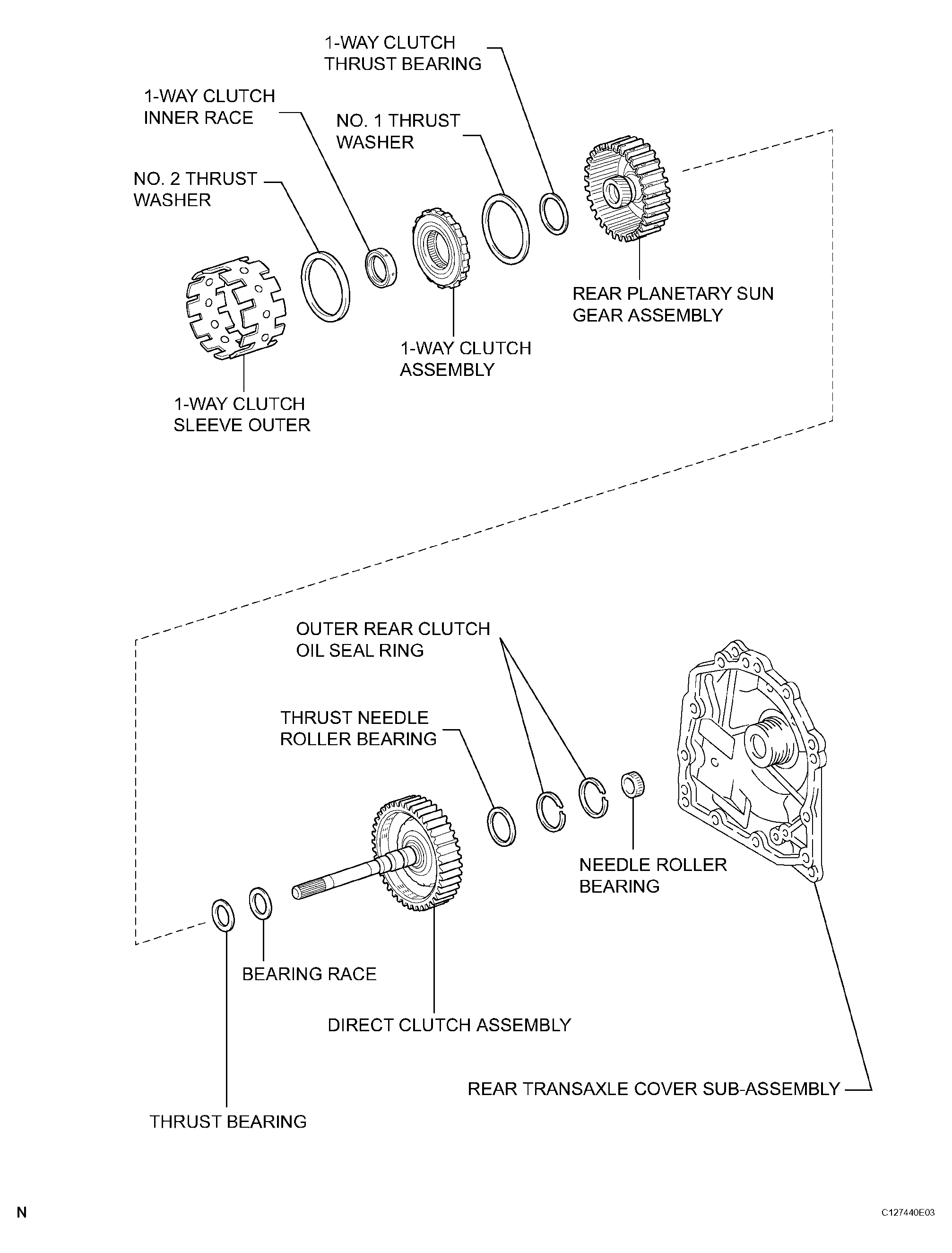

Fig 9: Automatic Transaxle Unit Components & Torque Specification (9 Of 11)

Fig 10: Automatic Transaxle Unit Components & Torque Specification (10 Of 11)

Fig 11: Automatic Transaxle Unit Components & Torque Specification (11 Of 11)
