System Diagram

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

The configuration of the electronic control system in the U241E automatic transaxle is as shown in the following chart.

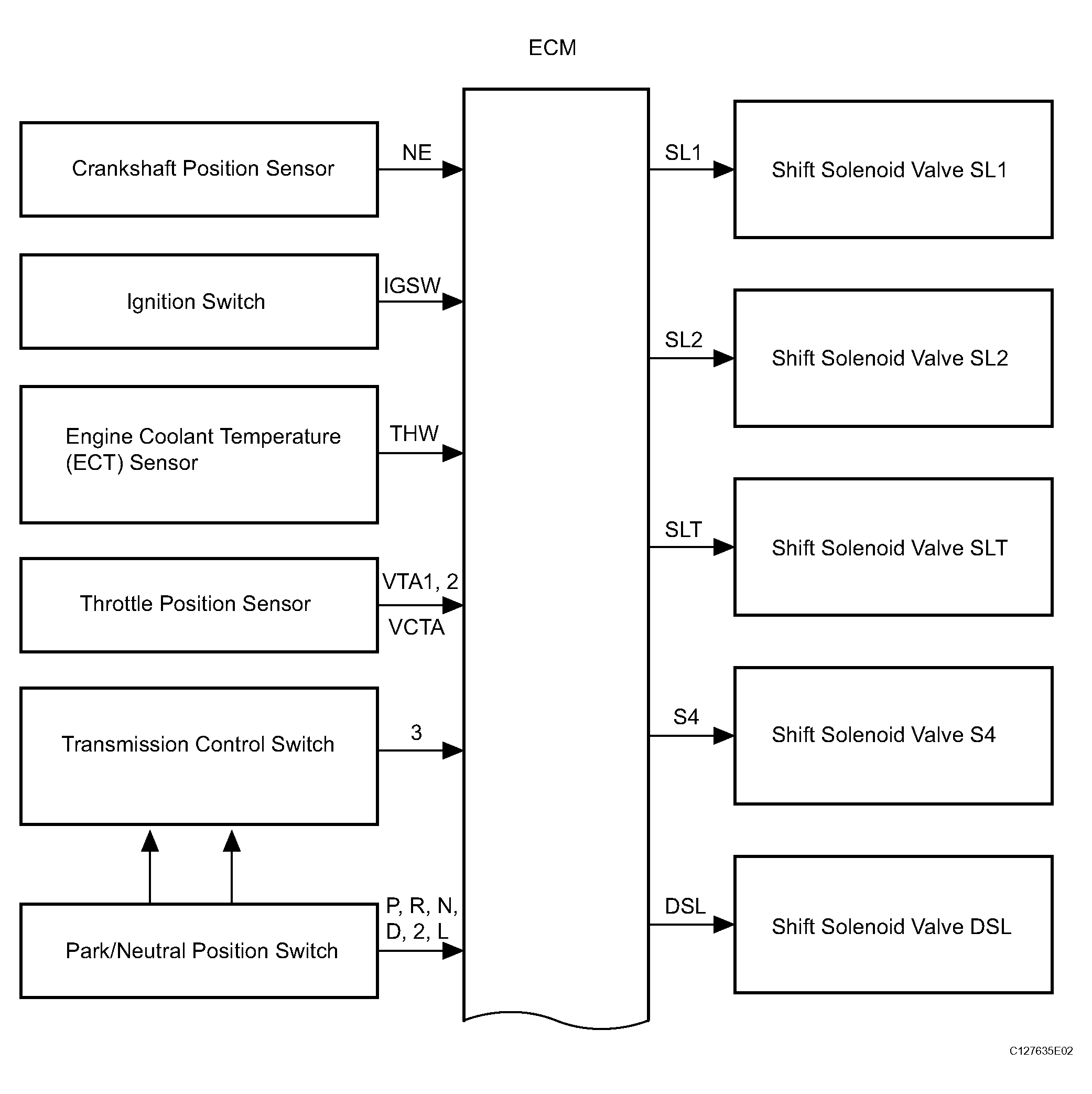

Fig 1: U241E Automatic Transaxle System Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

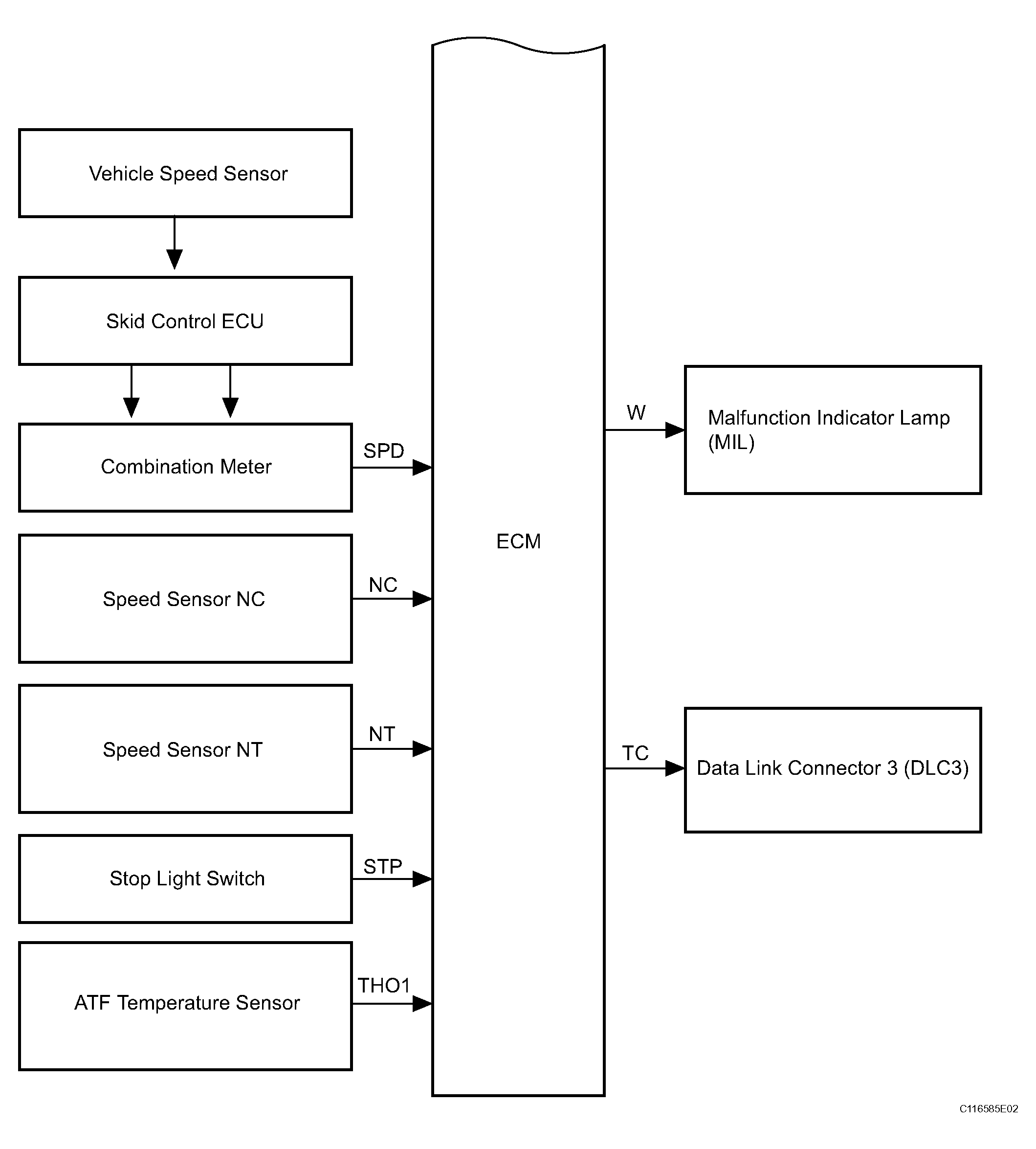

Fig 2: U241E Automatic Transaxle System Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

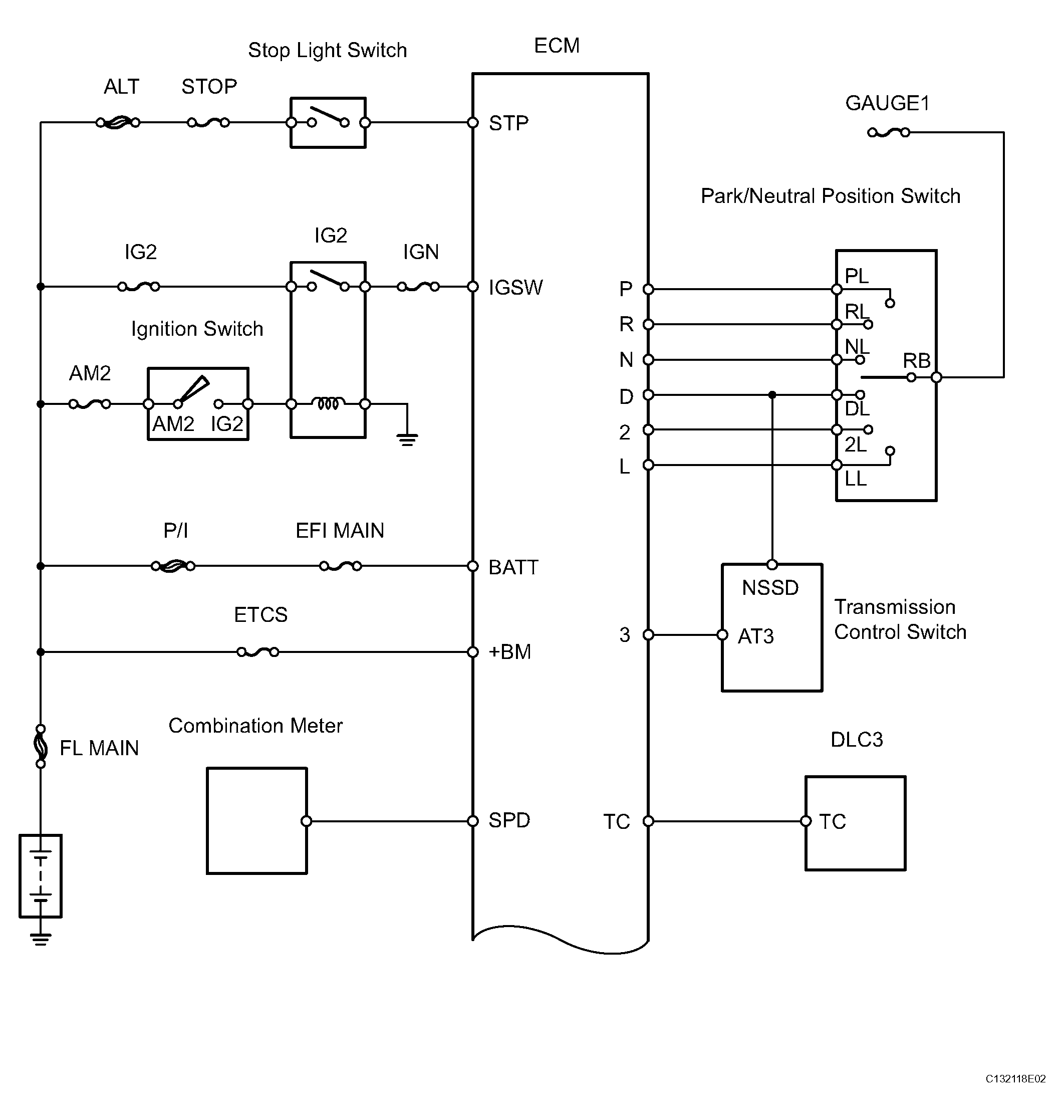

Fig 3: U241E Automatic Transaxle System Diagram (3 Of 4)

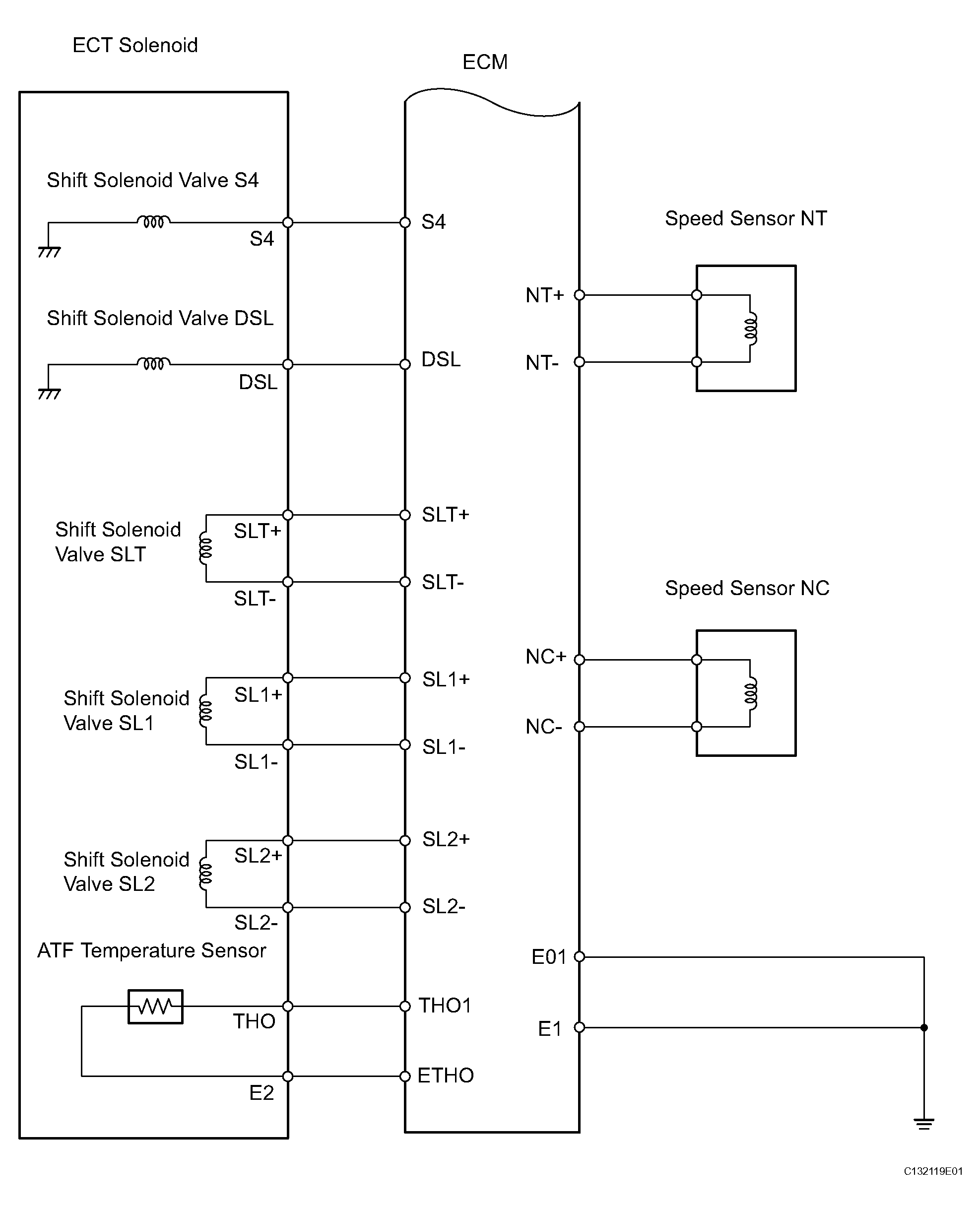

Fig 4: U241E Automatic Transaxle System Diagram (4 Of 4)
