Parts Location

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

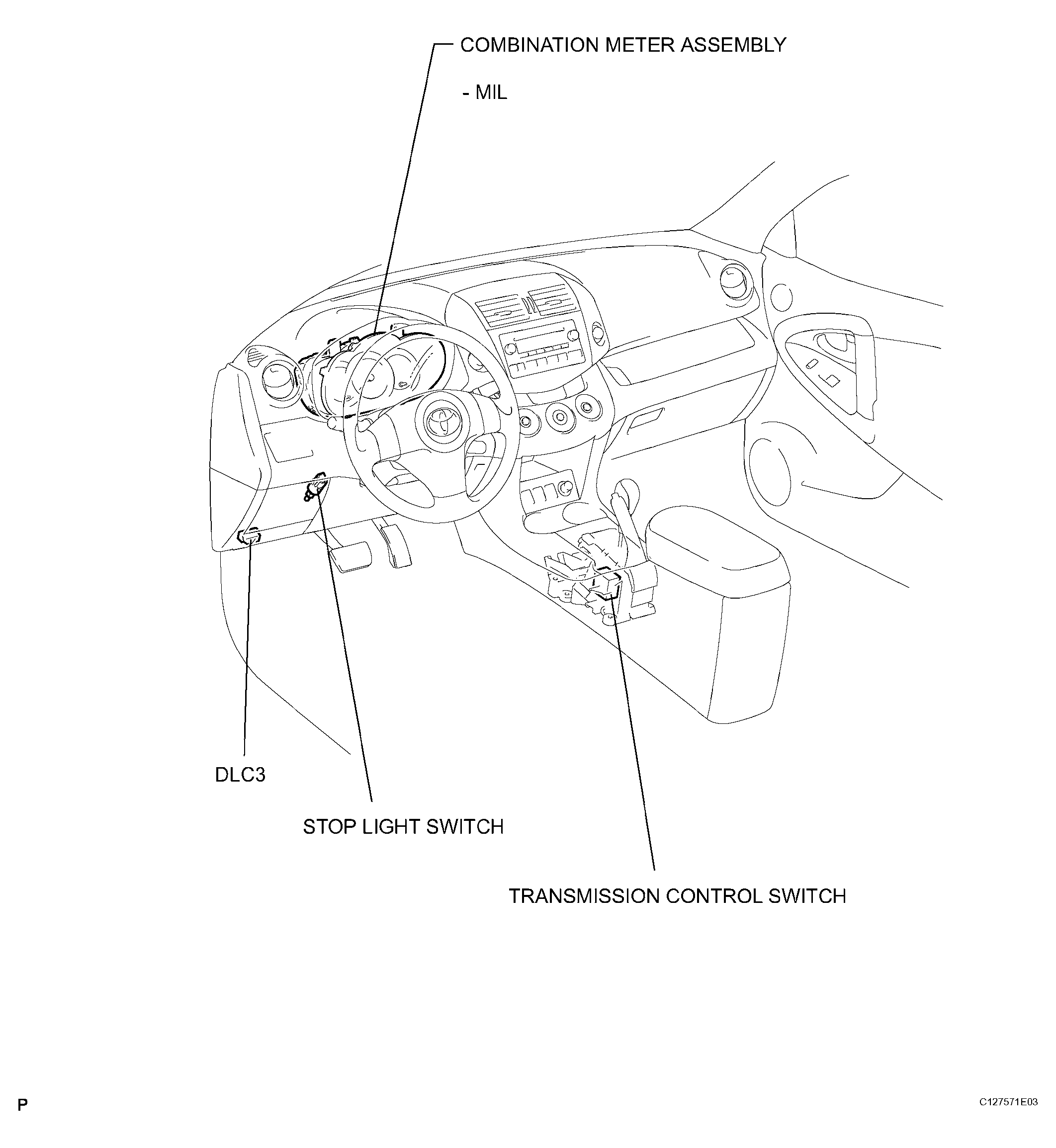

Fig 1: Identifying U241E Automatic Transaxle Components Location (1 Of 2)
G04488113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

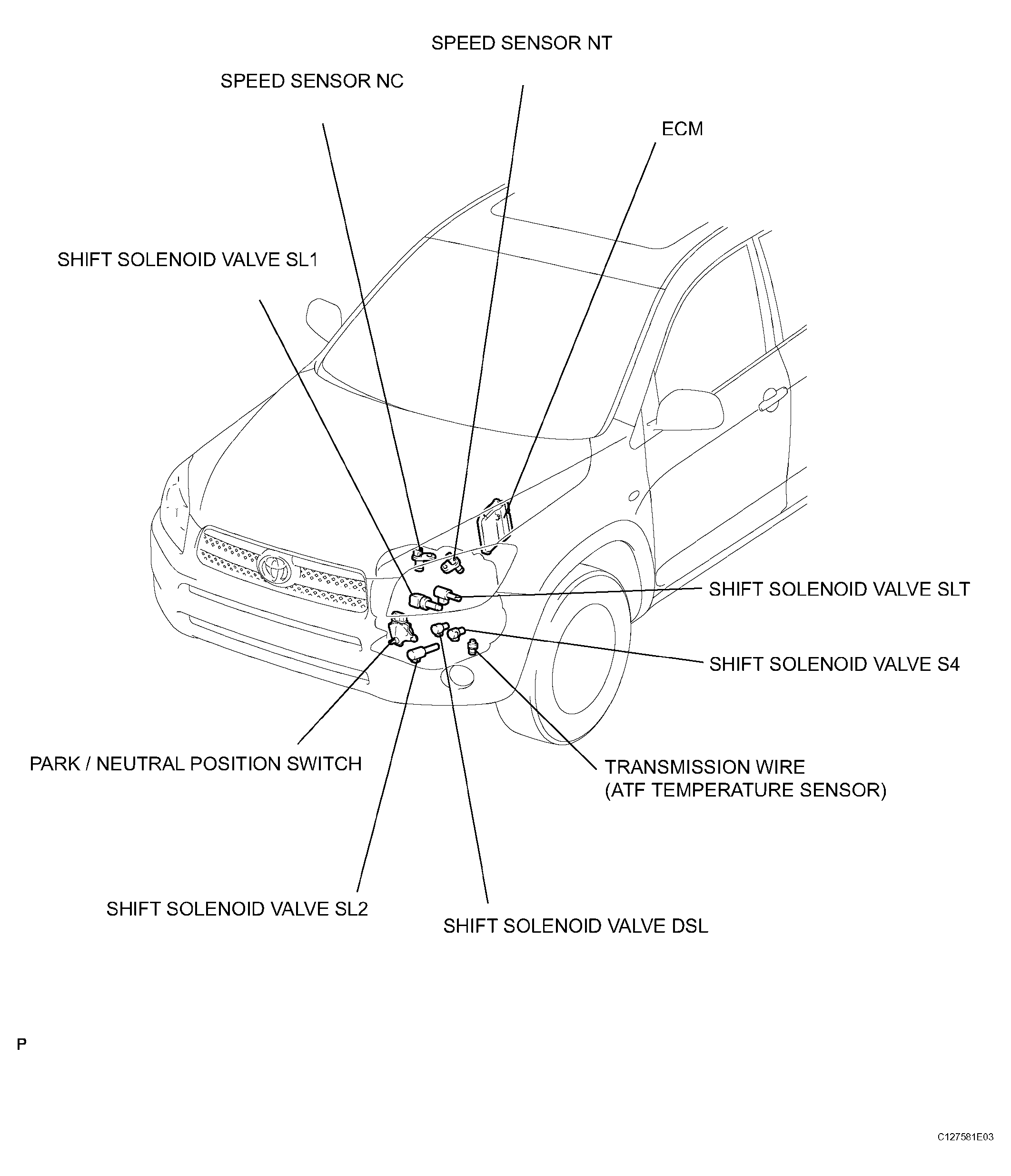

Fig 2: Identifying U241E Automatic Transaxle Components Location (2 Of 2)
G04488114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
