Automatic Transaxle Assembly: Removal

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE
    1. Remove the engine with transaxle (see REMOVAL ).
  2. DRAIN AUTOMATIC TRANSAXLE FLUID
    1. Remove the drain plug and gasket, and drain ATF.
    2. Install a new gasket and the drain plug.

      Torque: 47 N*m (479 kgf*cm, 35 ft.*lbf)

  3. REMOVE STARTER ASSEMBLY
    1. Disconnect the starter connector.
    2. Open the terminal cap, and remove the nut and disconnect the starter wire.

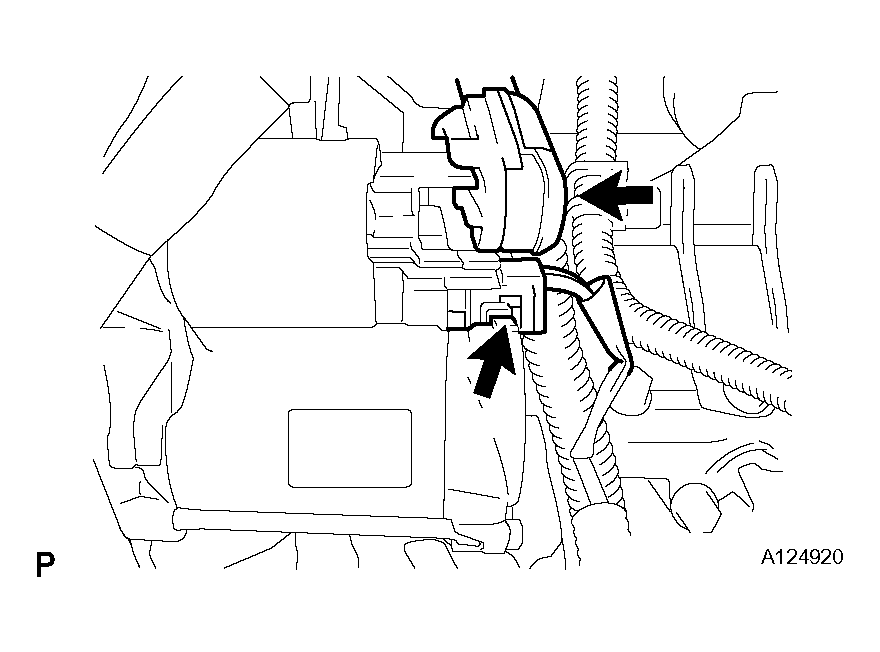

      Fig 1: Disconnecting Starter Wire
      G04488297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 bolts and starter.

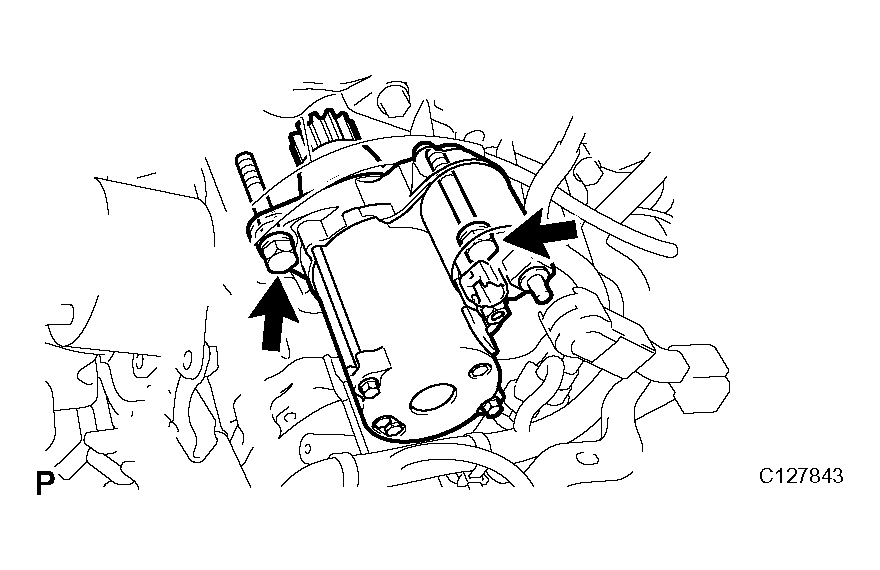

      Fig 2: Removing Bolts And Starter
      G04488298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. DISCONNECT WIRE HARNESS
    1. Disconnect the park/neutral position switch connector.
    2. Disconnect the transaxle wire connector.
    3. Disconnect the speed sensor connectors.
    4. Disconnect the wire harness clamps.
  5. REMOVE TRANSMISSION OIL COOLER
    1. Remove the oil cooler (see REMOVAL  ).

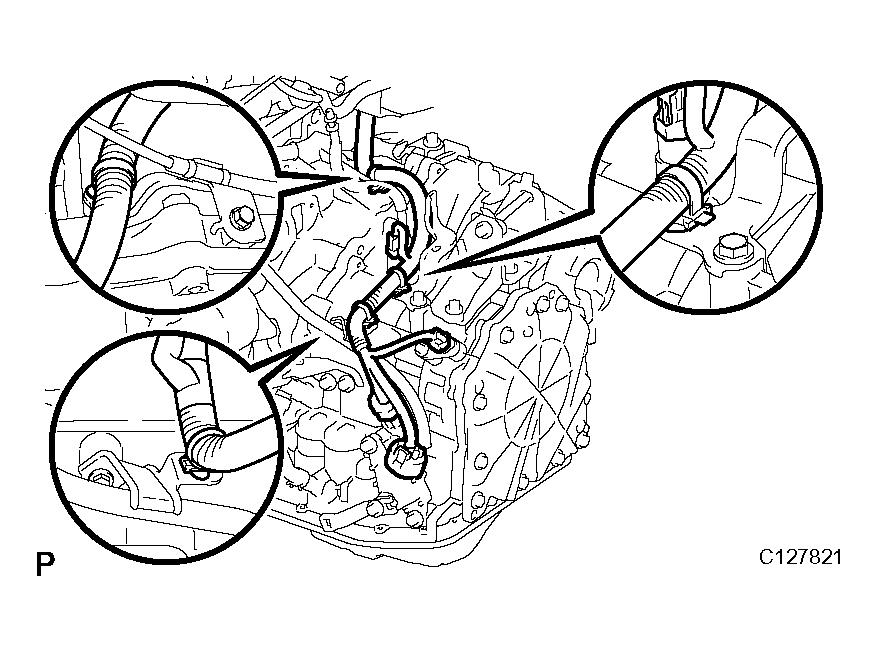

      Fig 3: Removing Oil Cooler
      G04488299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE ENGINE MOUNTING BRACKET RR
    1. Remove the 3 bolts and mounting bracket.

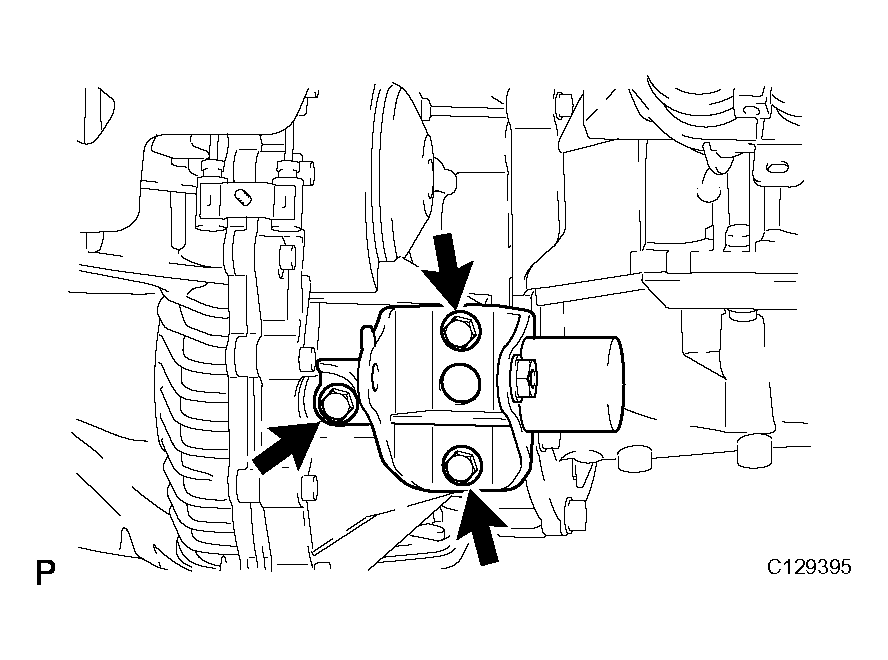

      Fig 4: Removing Bolts And Mounting Bracket
      G04488300Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE ENGINE MOUNTING BRACKET FR
    1. Remove the 4 bolts and mounting bracket.

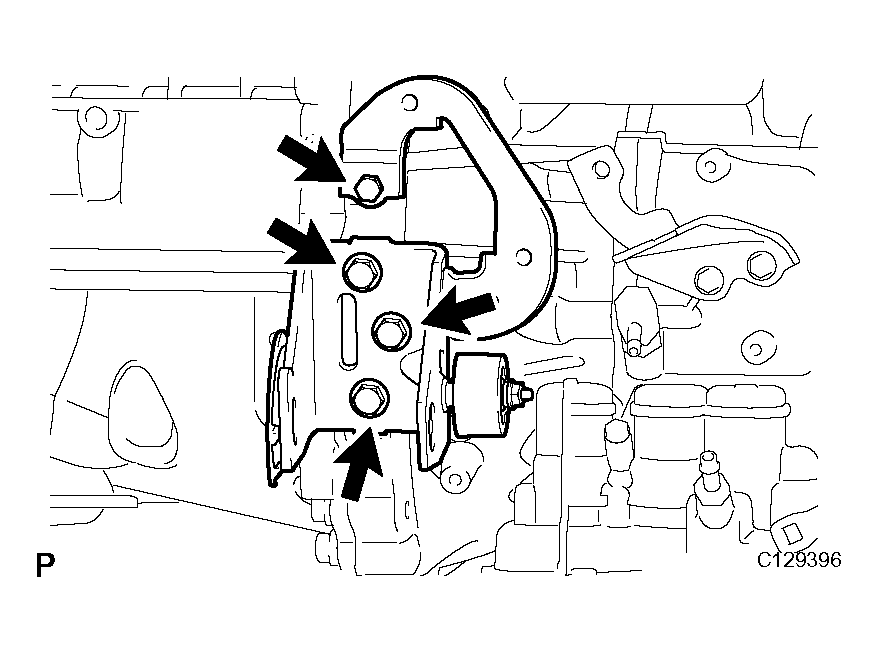

      Fig 5: Removing Bolts And Mounting Bracket
      G04488301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE ENGINE MOUNTING BRACKET LH
    1. Remove the 3 bolts and mounting bracket.

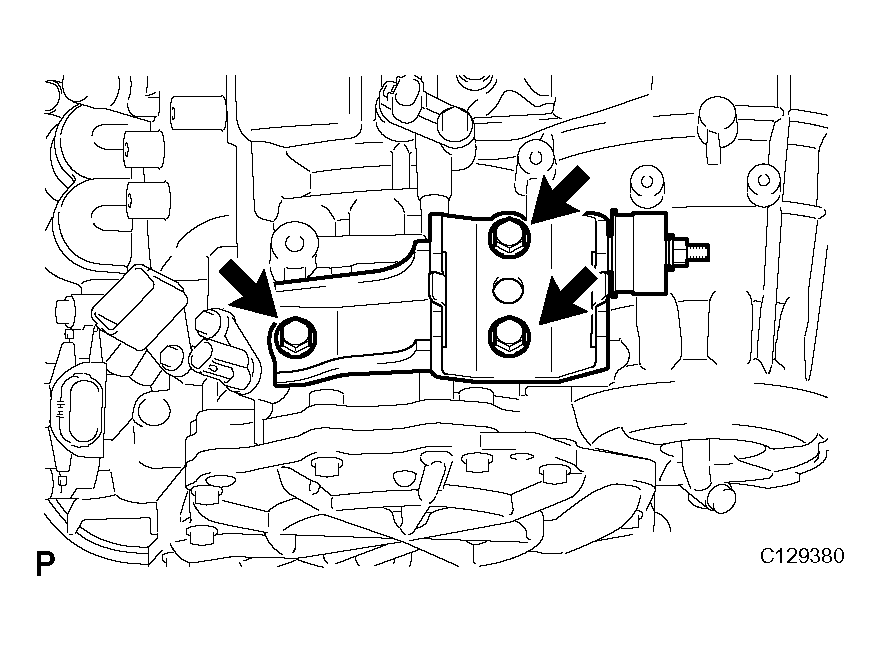

      Fig 6: Removing Bolts And Mounting Bracket
      G04488302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE AUTOMATIC TRANSAXLE ASSEMBLY
    1. Remove the flywheel housing under cover.
    2. Turn the crankshaft to gain access and remove the 6 bolts while holding the crankshaft pulley bolt with a wrench.

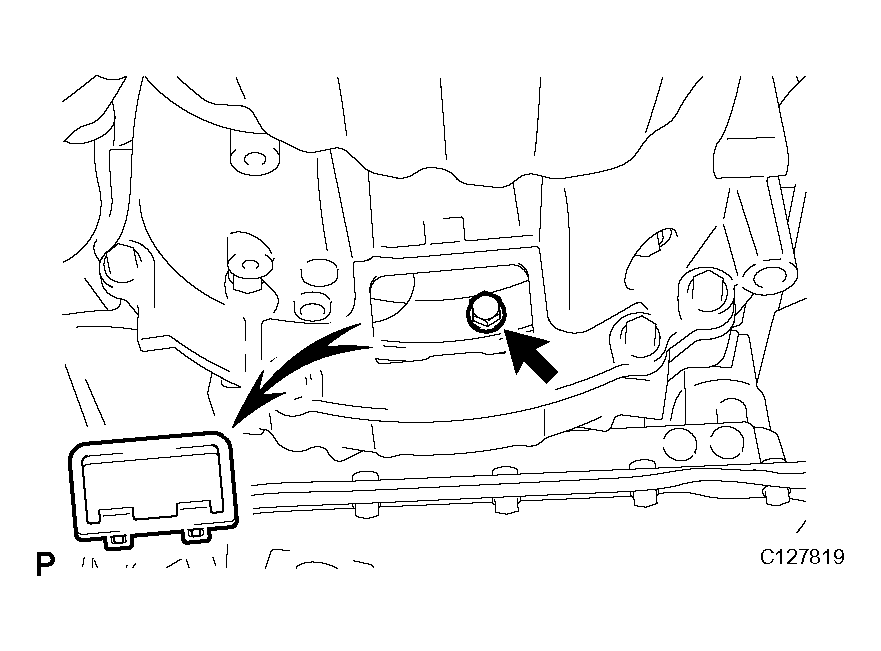

      Fig 7: Removing Crankshaft Pulley Bolt
      G04488303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 4 lower side mounting bolts.

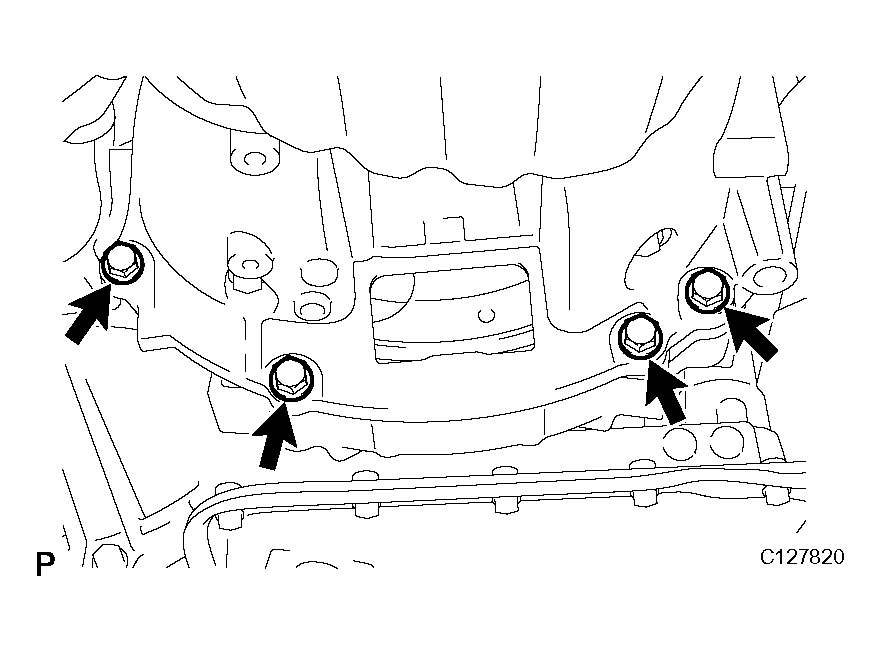

      Fig 8: Removing Lower Side Mounting Bolts
      G04488304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 5 upper side mounting bolts.
    5. Separate and remove the automatic transaxle.

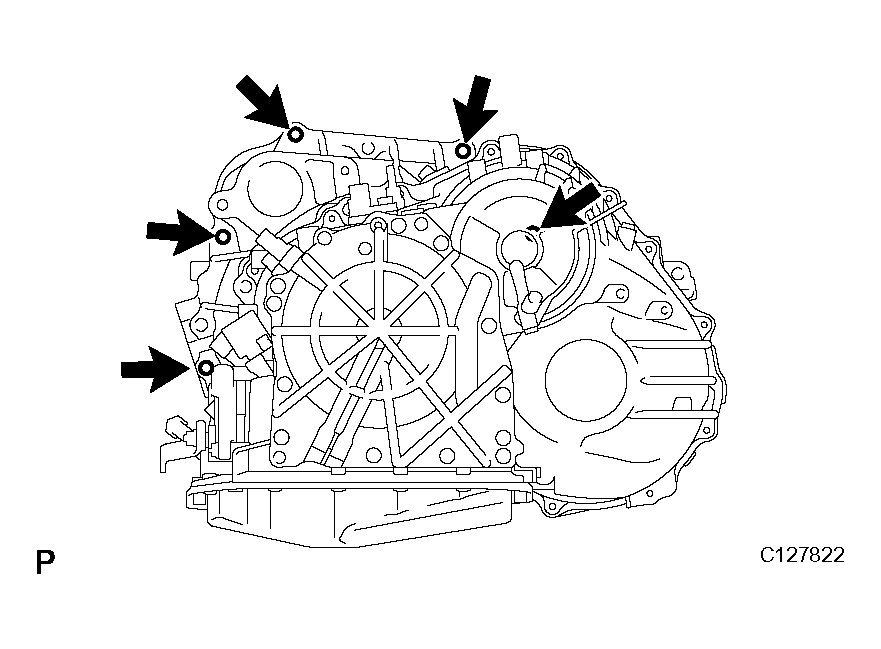

      Fig 9: Removing Upper Side Mounting Bolts
      G04488305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE TRANSMISSION OIL FILLER TUBE SUBASSEMBLY
    1. Remove the ATF dipstick.
    2. Remove the bolt and oil filler tube.
      Fig 10: Removing Bolt And Oil Filler Tube
      G04488306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE NO. 1 TRANSMISSION CONTROL CABLE BRACKET
    1. Remove the 2 bolts and cable bracket.
  12. REMOVE TORQUE CONVERTER CLUTCH ASSEMBLY

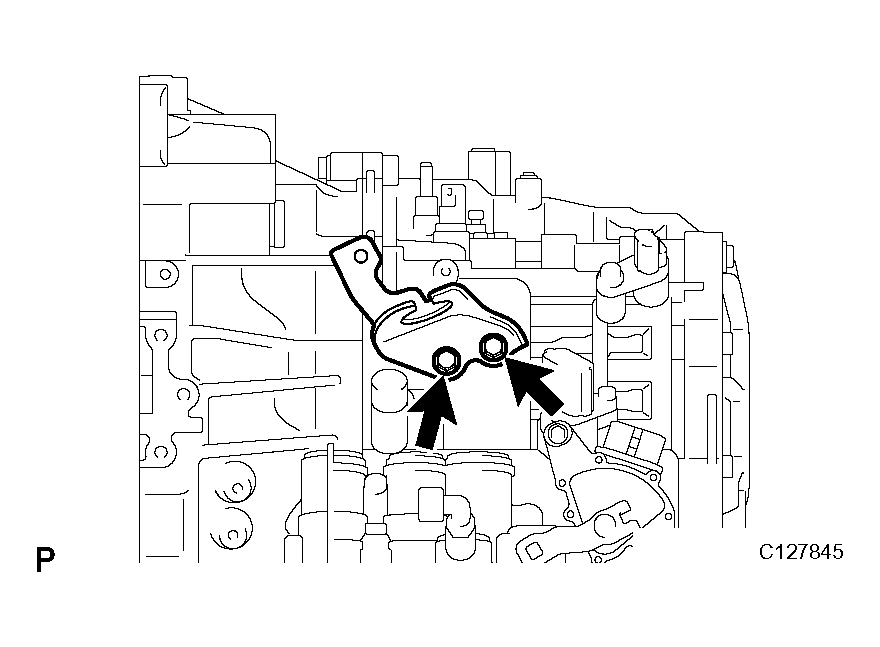

    Fig 11: Removing Bolts And Cable Bracket
    G04488307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
