Valve Body: Reassembly

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL MANUAL VALVE
1. Install the manual valve to the valve body.
INSTALL SHIFT SOLENOID VALVE S4
1. Install the shift solenoid valve S4 to the valve body with the bolt.
  Torque: 11 N*m (112 kgf*cm, 9 ft.*lbf)

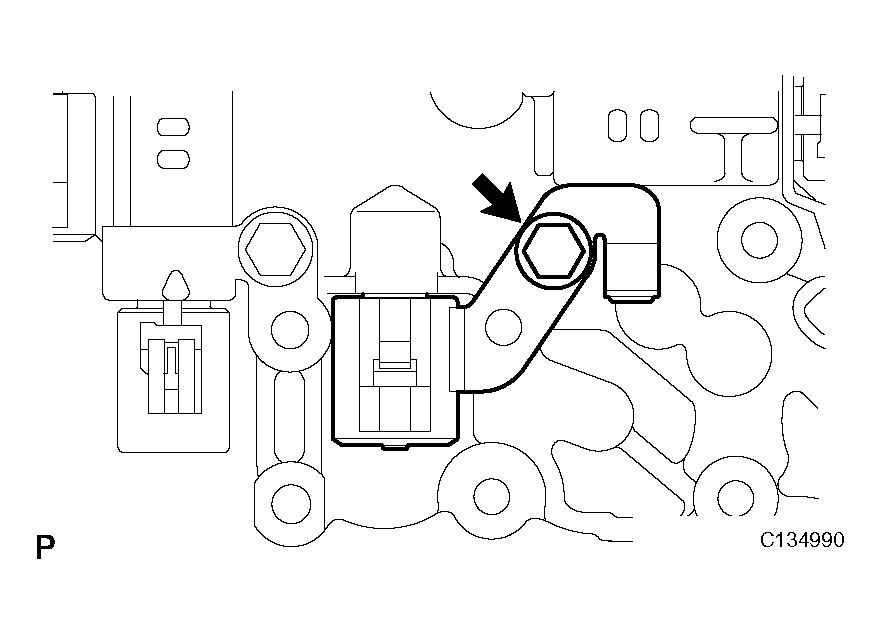

  Fig 1: Installing Shift Solenoid Valve S4
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT SOLENOID VALVE SL2
1. Install the shift solenoid valve SL2 to the valve body with the bolt and plate.
  Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)

  Fig 2: Installing Shift Solenoid Valve SL2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT SOLENOID VALVE DSL
1. Install the shift solenoid valve DSL to the valve body with the bolt.
  Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)

  Fig 3: Installing Shift Solenoid Valve DSL
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT SOLENOID VALVE SL1
1. Install the shift solenoid valve SL1 to the valve body with the bolt and plate.
  Torque: 6.6 N*m (67 kgf*cm, 58 in.*lbf)

  Fig 4: Installing Shift Solenoid Valve SL1
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT SOLENOID VALVE SLT
1. Install the shift solenoid valve SLT to the valve body with the bolt and plate.
  Torque: 6.6 N*m (67 kgf*cm, 58 in.*lbf)

  Fig 5: Installing Shift Solenoid Valve SLT
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
