Valve Body: Disassembly

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

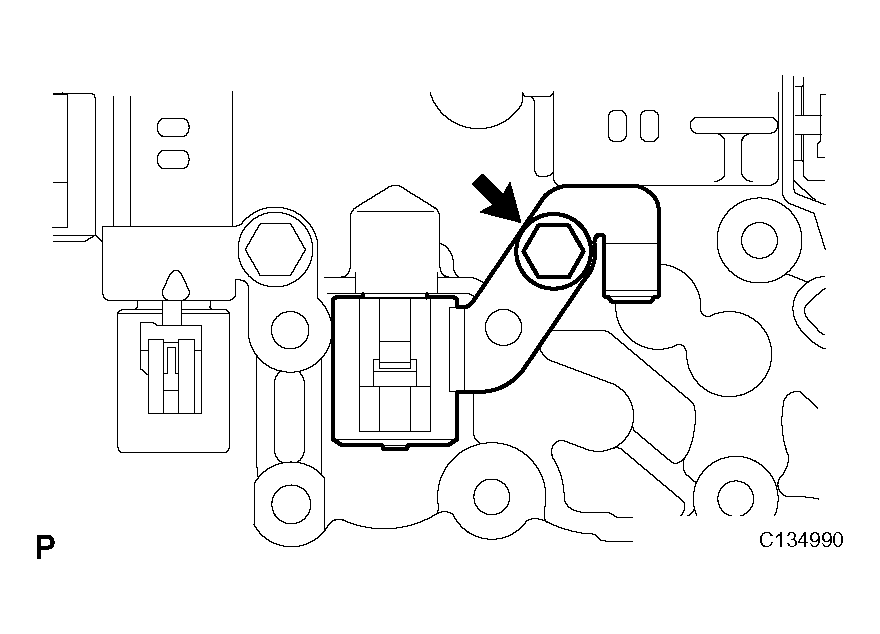

REMOVE SHIFT SOLENOID VALVE SLT
1. Remove the bolt, plate and shift solenoid valve SLT from the valve body.

  Fig 1: Removing Shift Solenoid Valve SLT
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT SOLENOID VALVE SL1
1. Remove the bolt, plate and shift solenoid valve SL1 from the valve body.

  Fig 2: Removing Shift Solenoid Valve SL1
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT SOLENOID VALVE DSL
1. Remove the bolt and shift solenoid valve DSL from the valve body.

  Fig 3: Removing Shift Solenoid Valve DSL
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT SOLENOID VALVE SL2
1. Remove the bolt, plate and shift solenoid valve SL2 from the valve body.

  Fig 4: Removing Shift Solenoid Valve SL2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT SOLENOID VALVE S4
1. Remove the bolt and shift solenoid valve S4 from the valve body.
REMOVE MANUAL VALVE
1. Remove the manual valve from the valve body.

  Fig 5: Removing Manual Valve
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
