INSTALL TRANSMISSION VALVE BODY ASSEMBLY
1. Install the 5 shift solenoid valves with the 5 bolts and 4 plates.
  Torque: 6.6 N*m (67 kgf*cm, 58 in.*lbf) for bolt A

  11 N*m (112 kgf*cm, 8 ft.*lbf) for bolt B

  HINT:

  Each bolt length is indicated below.

  Bolt length: 12 mm (0.47 in.) for Bolt A

  45 mm (1.77 in.) for Bolt B

  Fig 1: Installing Transmission Valve Body Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

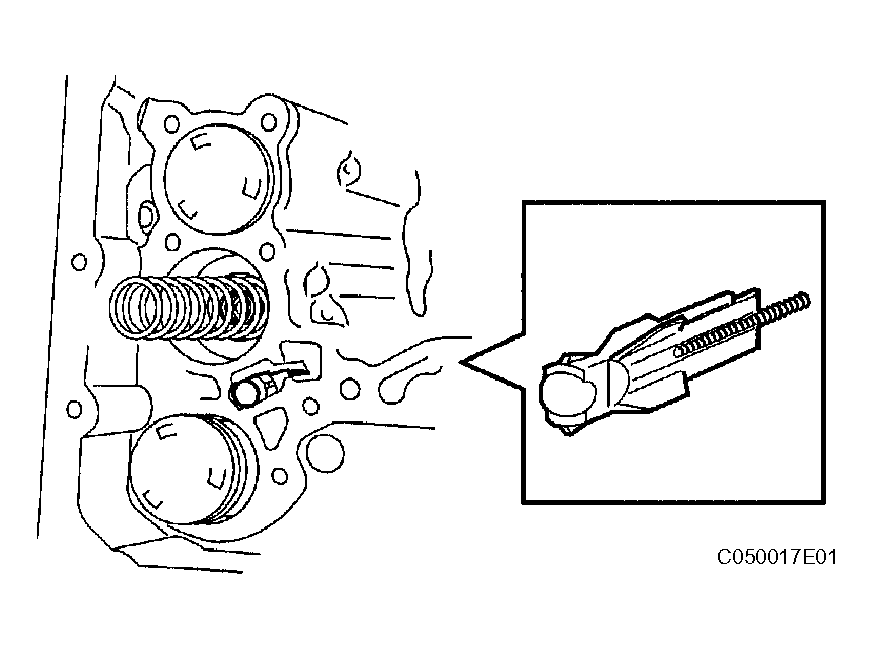

2. Install the spring and check ball body.

  Fig 2: Installing Spring And Check Ball Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

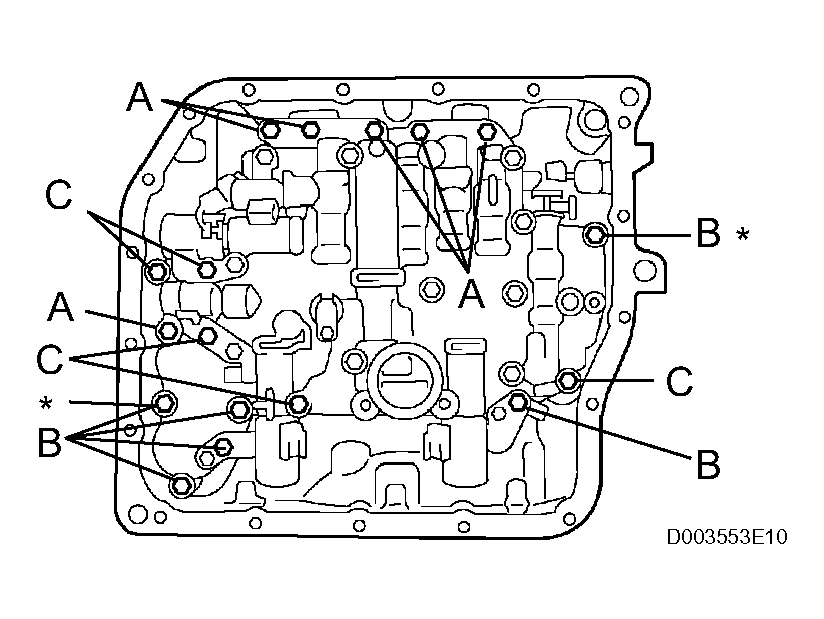

3. Align the groove of the manual valve with the pin of lever.
4. Install the 17 bolts.
  Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)
  NOTE:
  - Push the valve body against the accumulator piston spring and the check ball body to install it.
  - Tighten the bolts marked by * in the illustration first temporarily because they are positioning bolts.
  HINT:

  Each bolt length is indicated below.

  Bolt length: 25 mm (0.984 in.) for Bolt A

  41 mm (1.614 in.) for Bolt B

  45 mm (1.771 in.) for Bolt C

  Fig 3: Tightening Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

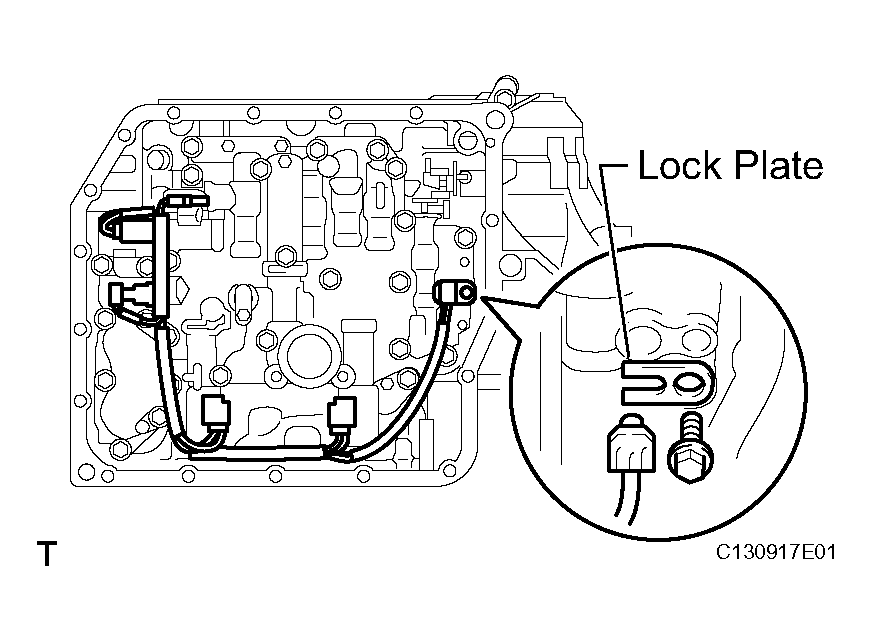

INSTALL TRANSMISSION WIRE
1. Coat the O-ring of the temperature sensor with ATF.
2. Install the ATF temperature sensor with the lock plate and bolt.
  Torque: 6.6 N*m (67 kgf*cm, 58 in.*lbf)
3. Connect the 5 shift solenoid valve connectors.

  Fig 4: Installing Transmission Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

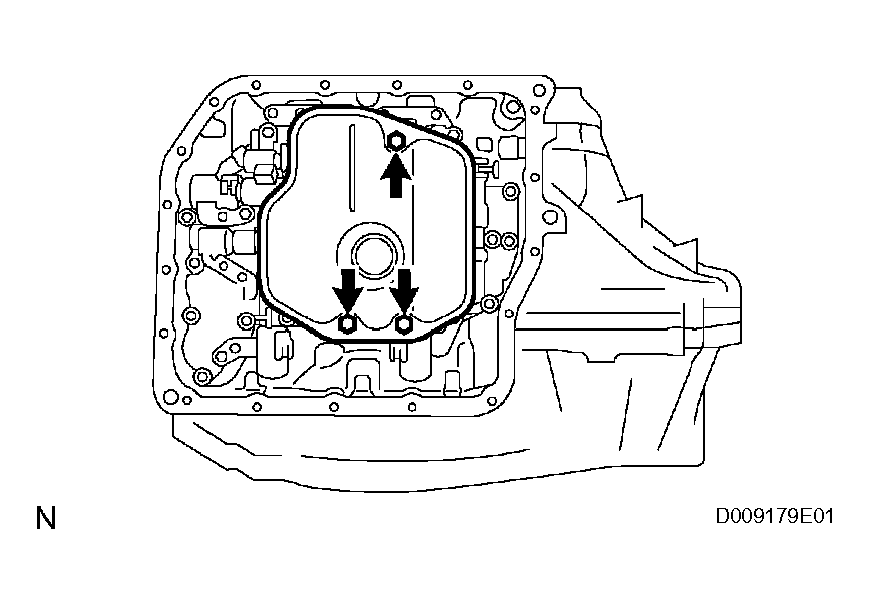

INSTALL VALVE BODY OIL STRAINER ASSEMBLY
1. Coat a new O-ring with ATF.
2. Install the O-ring to the oil strainer.

  Fig 5: Installing Valve Body Oil Strainer Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the oil strainer with the 3 bolts.
  Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)

  Fig 6: Installing Oil Strainer Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

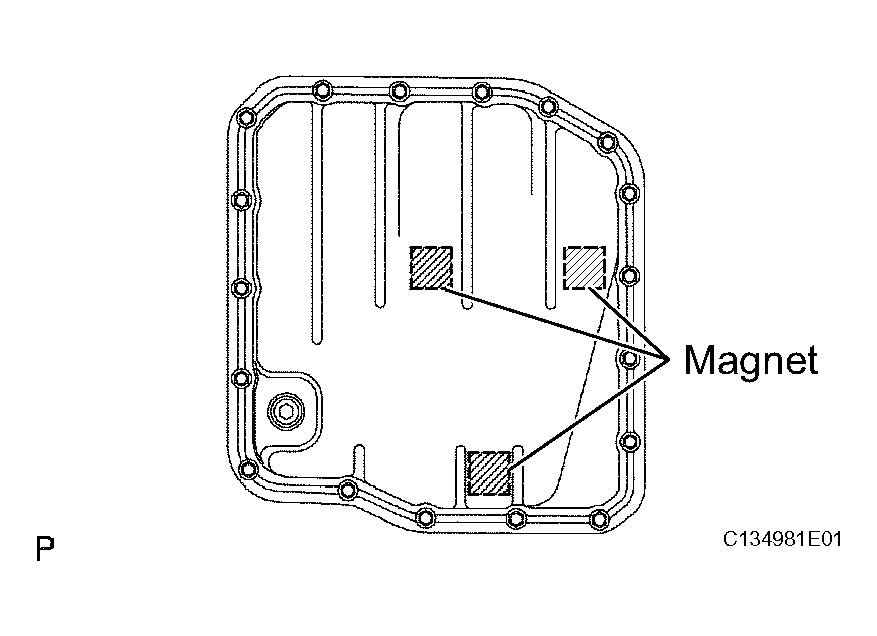

INSTALL AUTOMATIC TRANSAXLE OIL PAN SUB-ASSEMBLY
1. Install the 3 magnets in the oil pan.

  Fig 7: Installing Magnets In Oil Pan
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install a new gasket and oil pan with the 18 bolts.
  Torque: 7.6 N*m (77 kgf*cm, 67 in.*lbf)
INSTALL NO. 1 ENGINE UNDER COVER
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
ADD AUTOMATIC TRANSAXLE FLUID
Fluid type: Toyota Genuine ATF WS

Fig 8: Identifying Oil Pan Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT TRANSAXLE FLUID LEVEL
1. Inspect the fluid level (see INSPECTION PROCEDURE ).
PERFORM RESET MEMORY
1. Perform the RESET MEMORY procedures (A/T initialization) (see INITIALIZATION ).
