Floor Shift Assembly: Removal

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
REMOVE REAR CONSOLE BOX SUB-ASSEMBLY
1. Remove the console box (see ).
DISCONNECT TRANSAXLE CONTROL CABLE ASSEMBLY
1. Disconnect the control cable from the shift lever.

  Fig 1: Disconnecting Control Cable From Shift Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

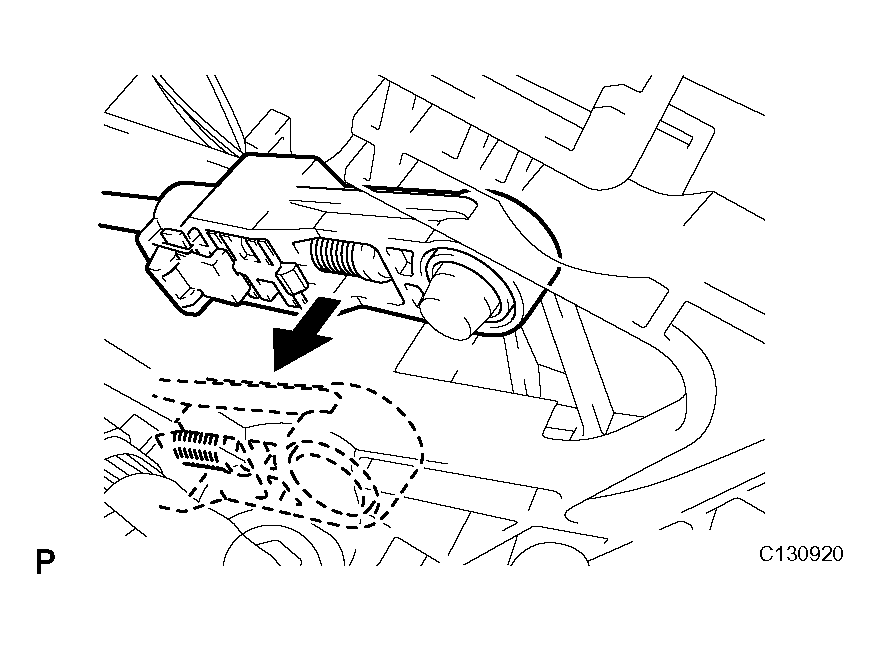

2. Turn the nut and disconnect the control cable from the shift lever retainer.

  Fig 2: Disconnecting Control Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FLOOR SHIFT ASSEMBLY

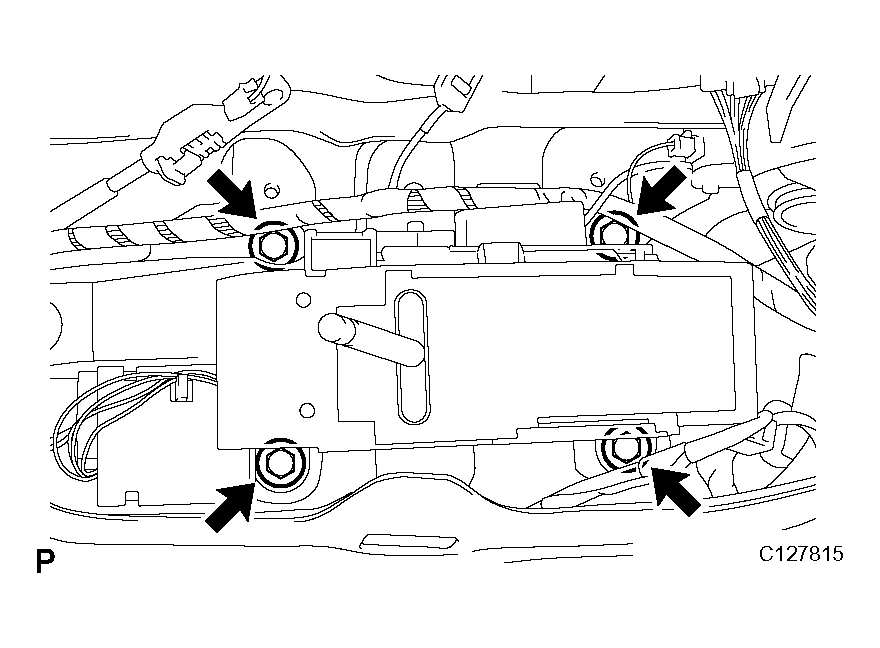

1. Remove the 4 bolts and floor shift.

  Fig 3: Removing Floor Shift Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

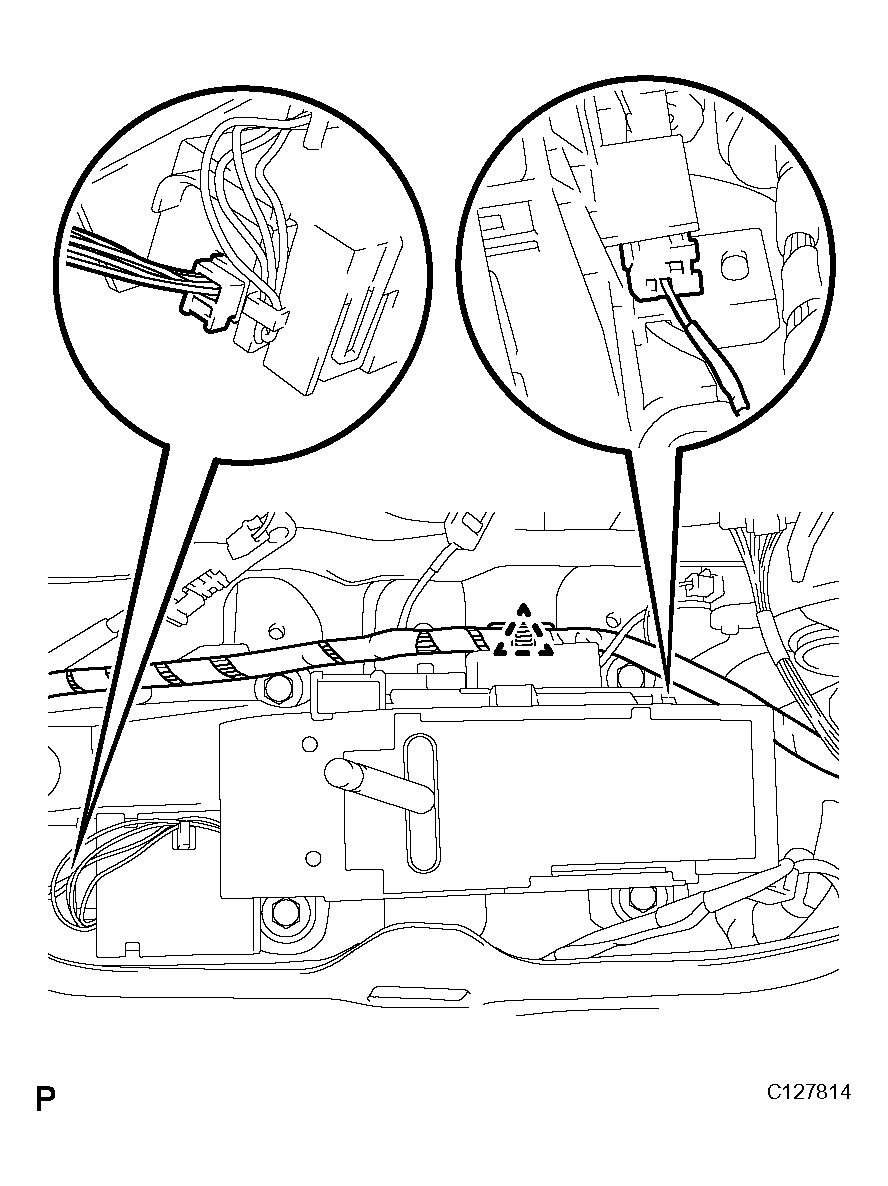

2. Disconnect the 2 connectors and detach the clamp.

  Fig 4: Disconnecting Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
