System Diagram

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

The configuration of the electronic control system in the U140F automatic transaxle is as shown in the following chart.

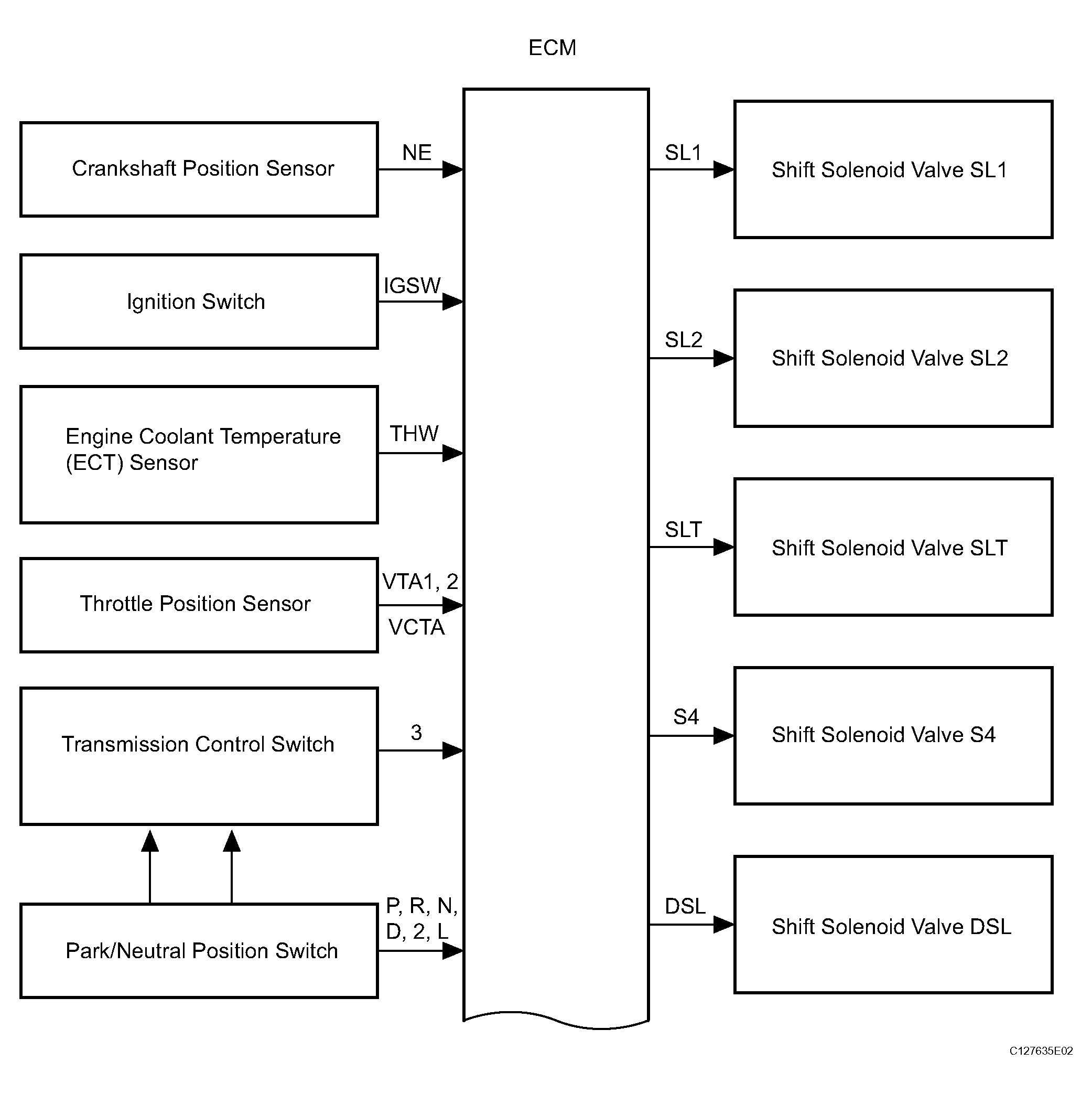

Fig 1: Automatic Transaxle System Diagram (1 Of 4)
G04486220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

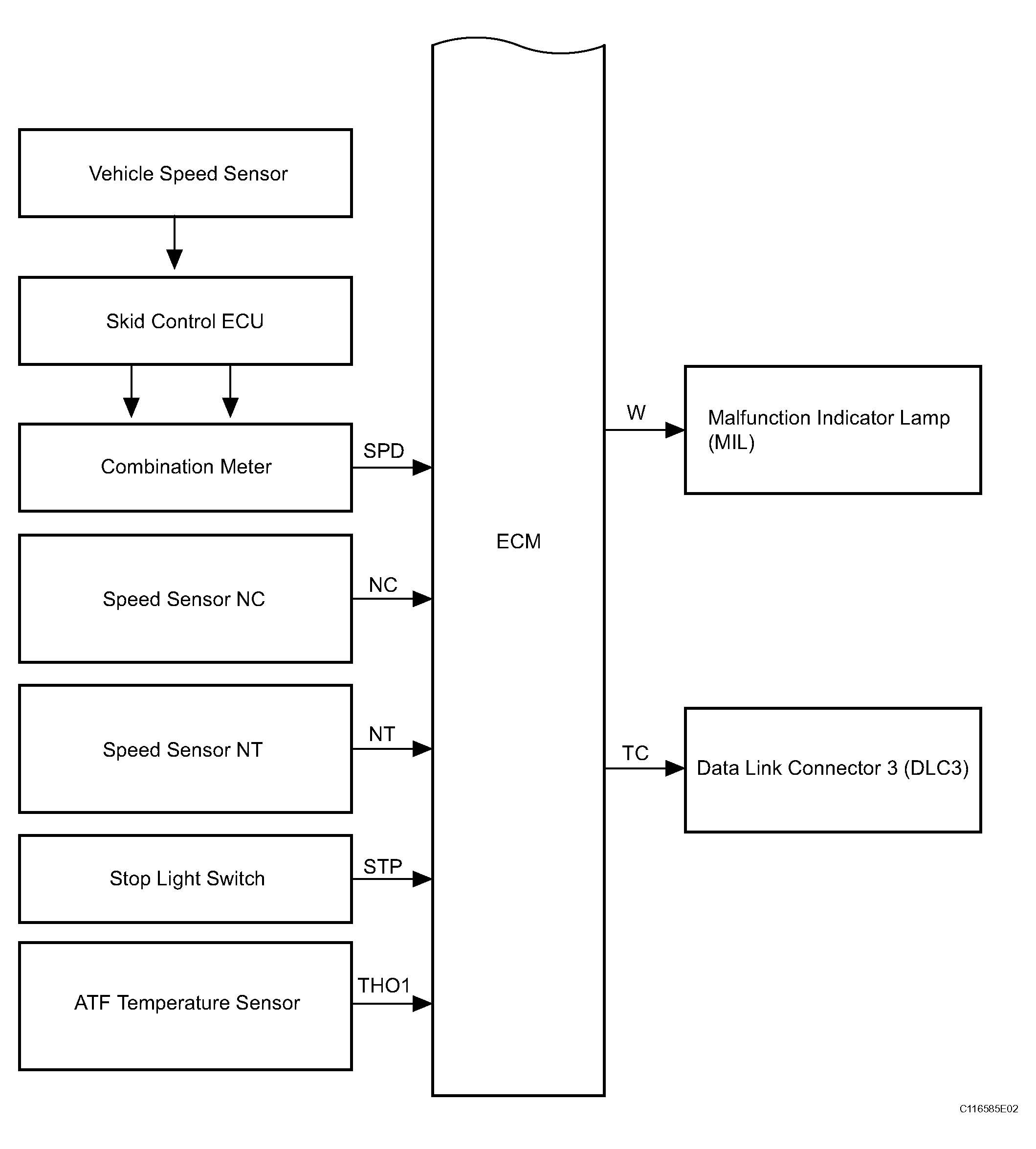

Fig 2: Automatic Transaxle System Diagram (2 Of 4)
G04486221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

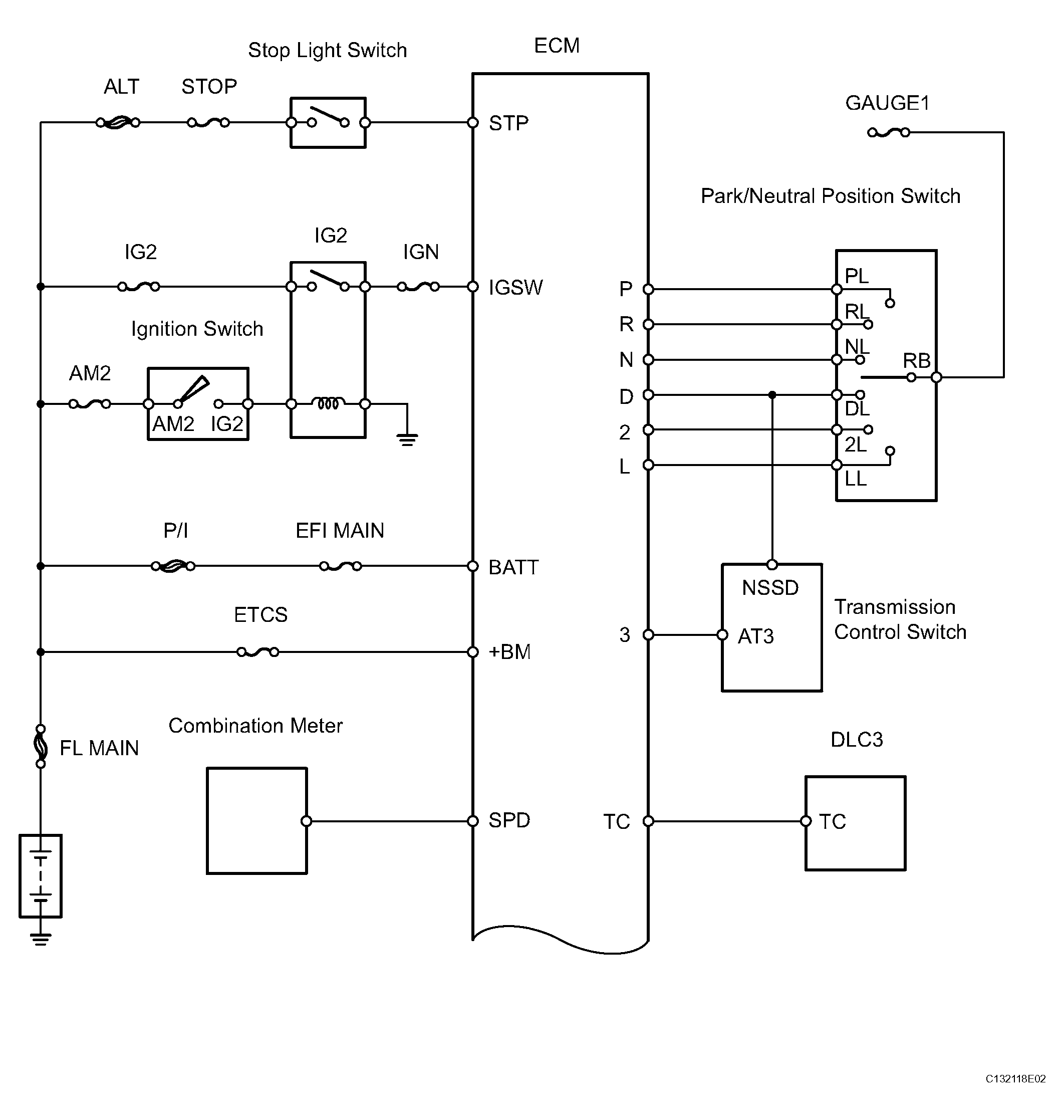

Fig 3: Automatic Transaxle System Diagram (3 Of 4)
G04486222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

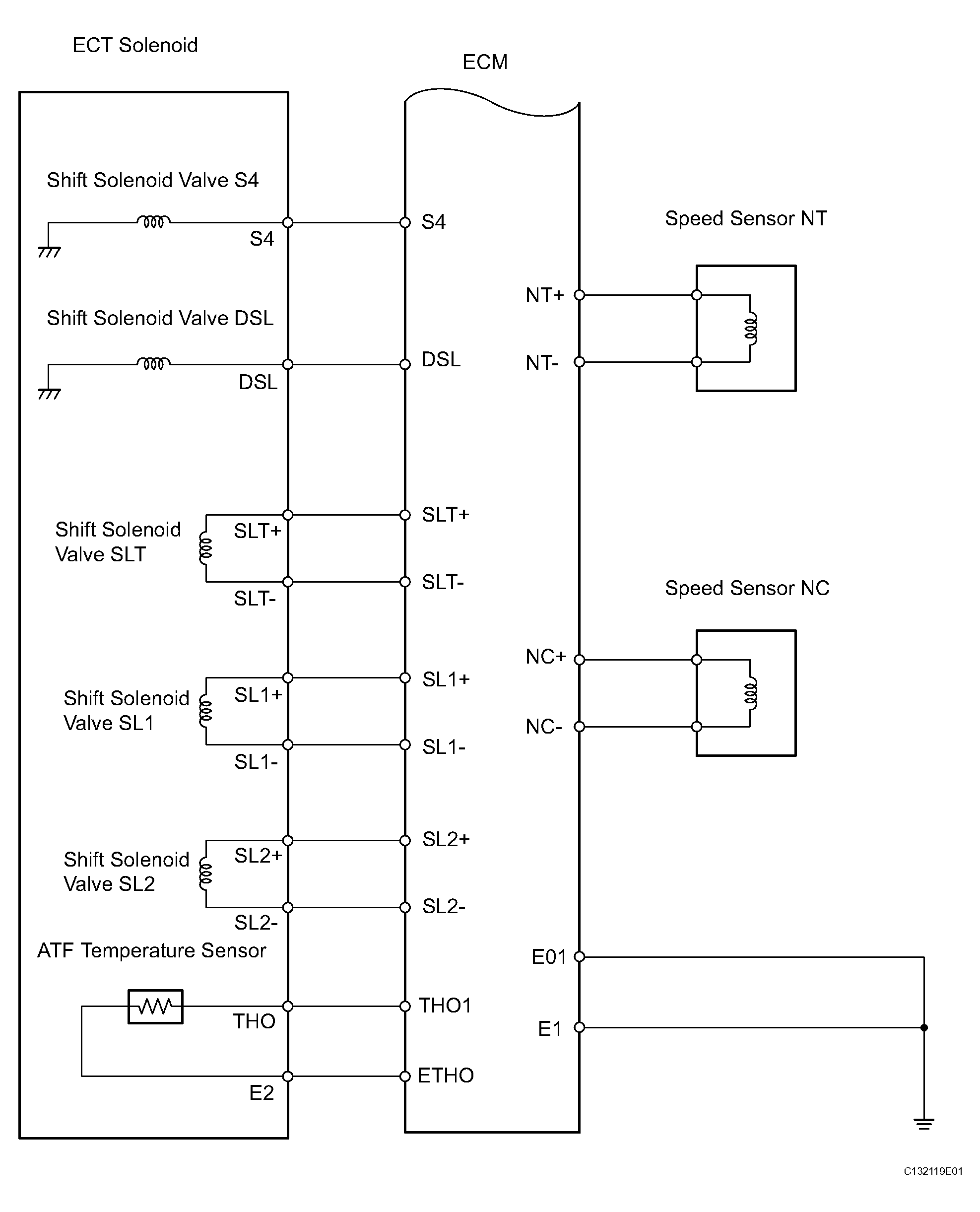

Fig 4: Automatic Transaxle System Diagram (4 Of 4)
G04486223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
