DTC Check / Clear

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

DTC CHECK (USING INTELLIGENT TESTER)
1. Connect the intelligent tester (with CAN VIM) to the DLC3.
2. Turn the ignition switch ON.
3. Read the DTCs following the prompts on the tester screen.
  HINT:

  refer to for further details.

  Fig 1: Connecting Intelligent Tester To DLC3
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

CHECK DTC (USING SST CHECK WIRE)

Using SST, connect terminals 13 (TC) and 4 (CG) of the DLC3.
SST 09843-18040
Turn the ignition switch ON.

Fig 2: Checking DTC Terminal Locations
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Read and record any DTCs from the tire pressure warning light on the combination meter. Refer to for examples of a normal system code and DTCs 13 and 33.

HINT:

If the tire pressure warning light does not blink to indicate any DTCs or the normal system code, inspect the tire pressure warning light circuit or 13 (TC) and 4 (CG) terminal circuits.

DTS PROCEDURE

Trouble Area	See procedure
Tire pressure warning light circuit	TIRE PRESSURE WARNING LIGHT CIRCUIT
TC and CG terminal circuit	TC AND CG TERMINAL CIRCUIT

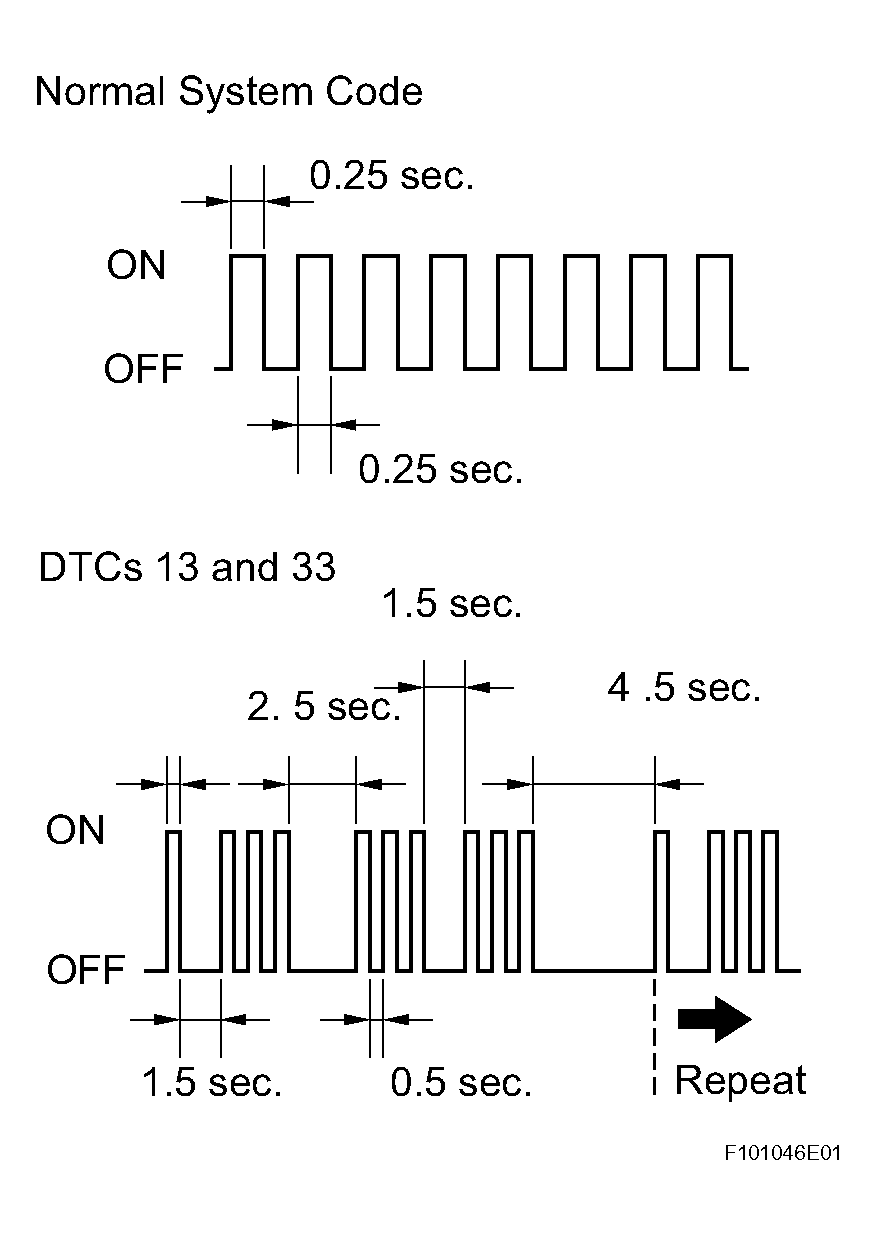

Fig 3: Identifying Normal System Code And DTC Records

If 2 or more malfunctions are indicated at the same time, the lowest numbered DTC is displayed first.

Refer to the Diagnostic Trouble Code Chart for DTC information (see DTC CHECK / CLEAR ).
After completing the check, turn the ignition switch OFF and remove SST from the DLC3.

CLEAR DTC (USING INTELLIGENT TESTER)
HINT:

After repairing the malfunctions, clear the DTCs.
1. Connect the intelligent tester (with CAN VIM) to the DLC3.
2. Turn the ignition switch ON.
3. Erase the DTCs following the prompts on the tester screen.
  HINT:

  refer to for further details.

  Fig 4: Connecting Intelligent Tester To DLC3
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
