Tire Pressure Warning Ecu: Installation

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL TIRE PRESSURE WARNING ECU
    1. Install the ECU with the bolt.

      Torque: 4.5 N*m (46 kgf*cm, 40 in.*lbf)

    2. Connect the connector.
  2. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY (See appropriate Step(s) under  INSTALLATION  )
  3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  4. REGISTER TRANSMITTER ID (See  REGISTRATION  )
  5. INSPECT TIRE PRESSURE WARNING SYSTEM

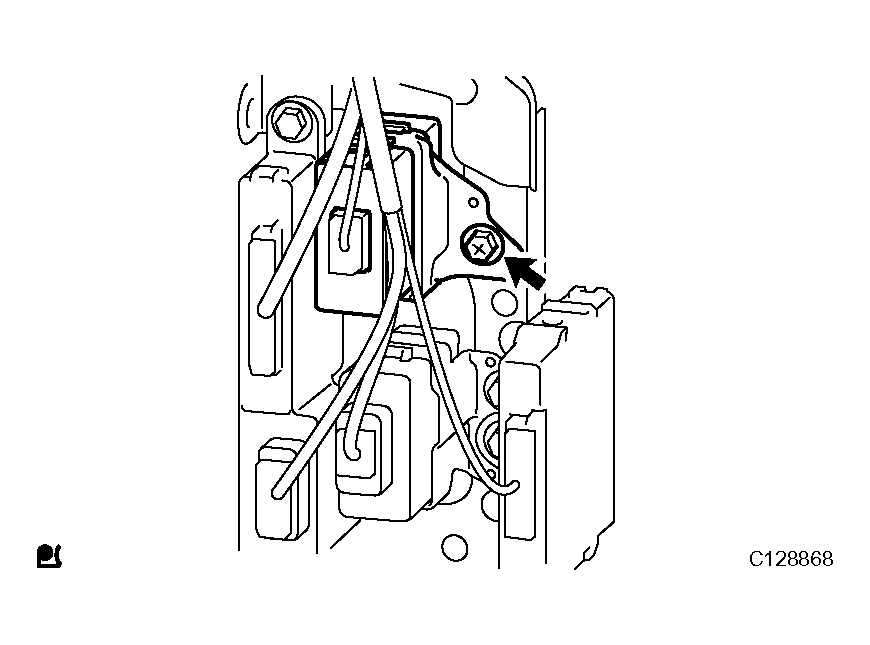

    Fig 1: Installing Bolt
    G04489327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
