TIRE PRESSURE WARNING RECEIVER (w/Antenna): Components

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

Illustrations of components related to gaining access to "Tire Pressure Warning Receiver (W/Antenna)"

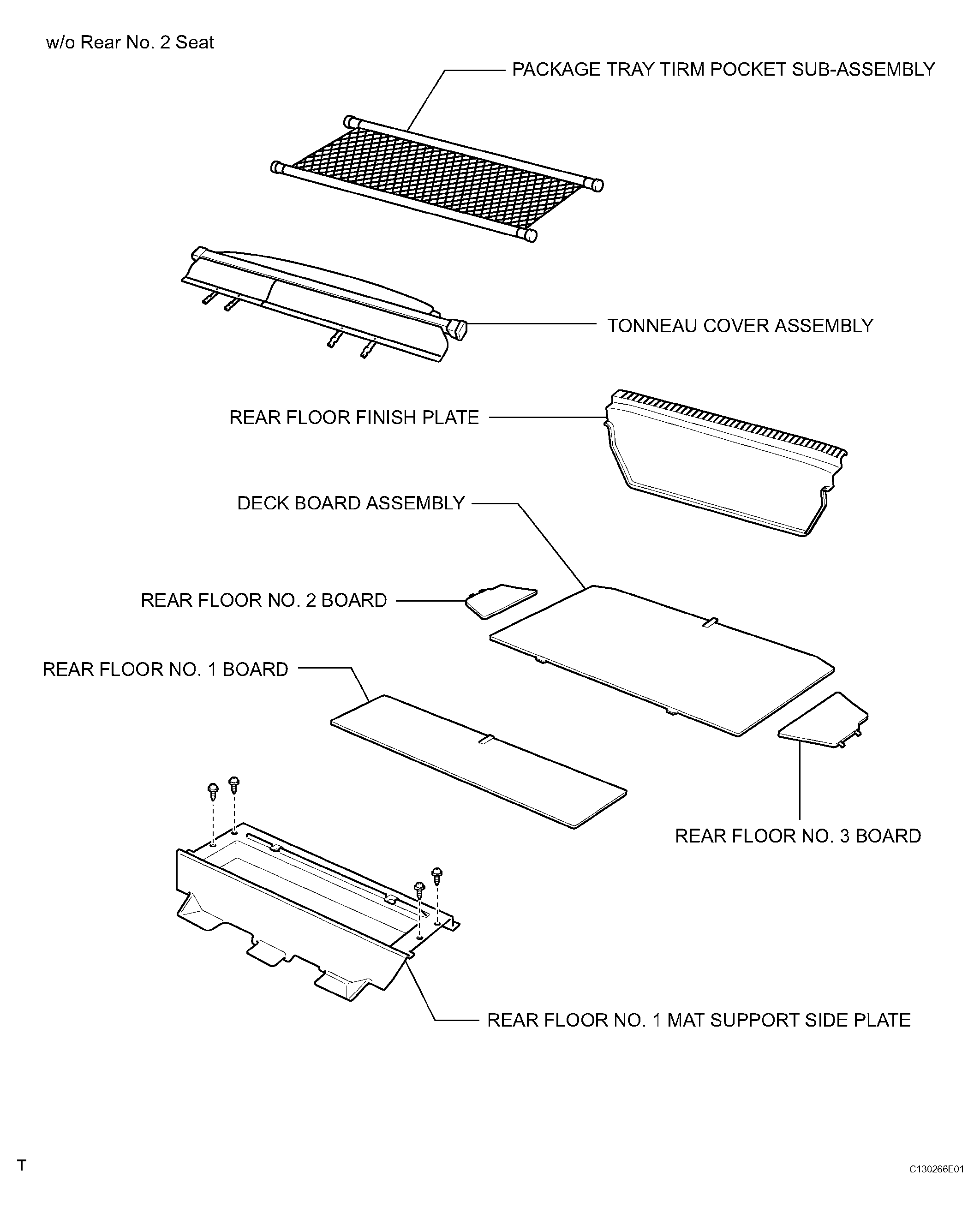

Fig 1: Identifying Tire Pressure Warning Receiver (w/Antenna) Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

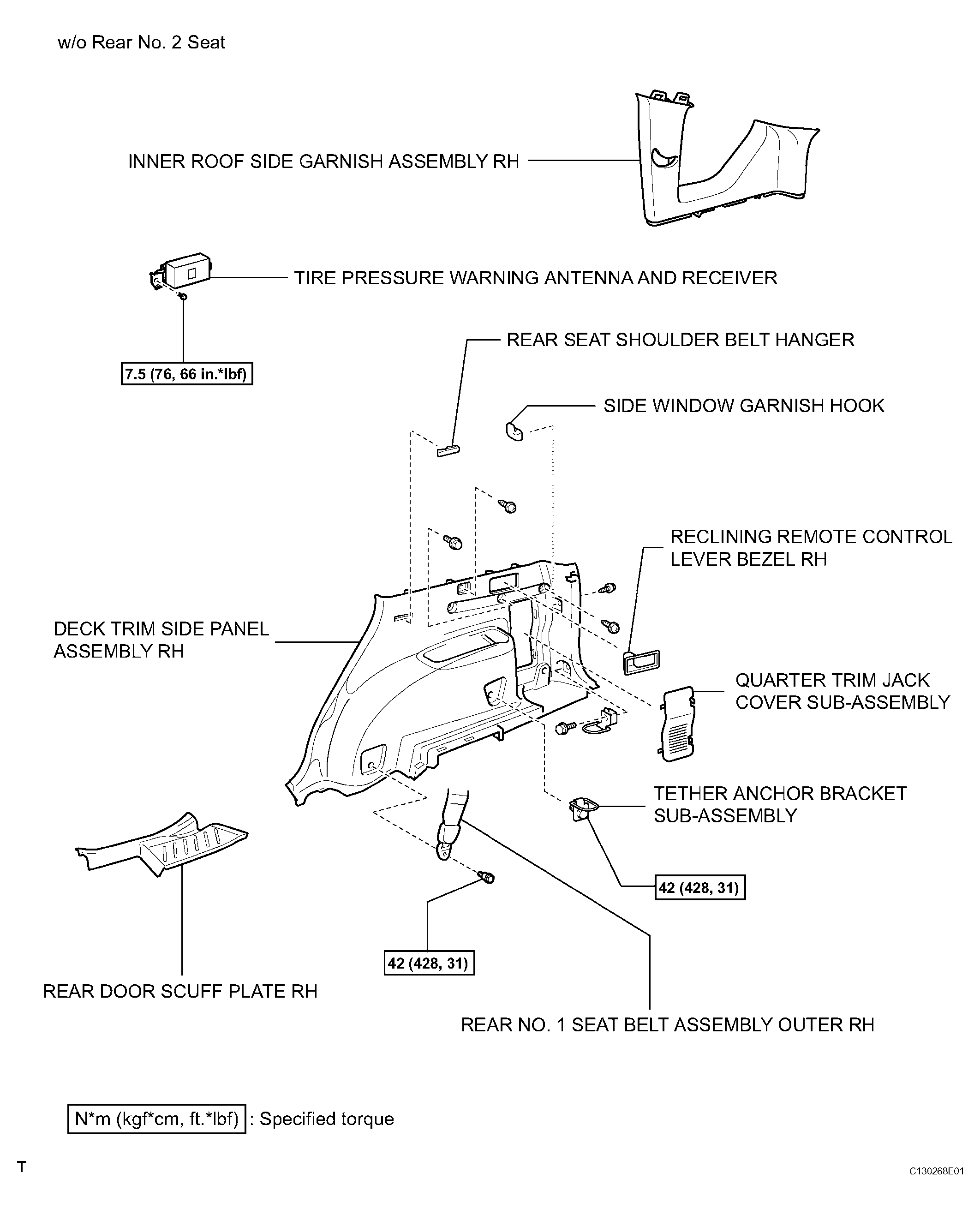

Fig 2: Identifying Tire Pressure Warning Receiver (w/Antenna) Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

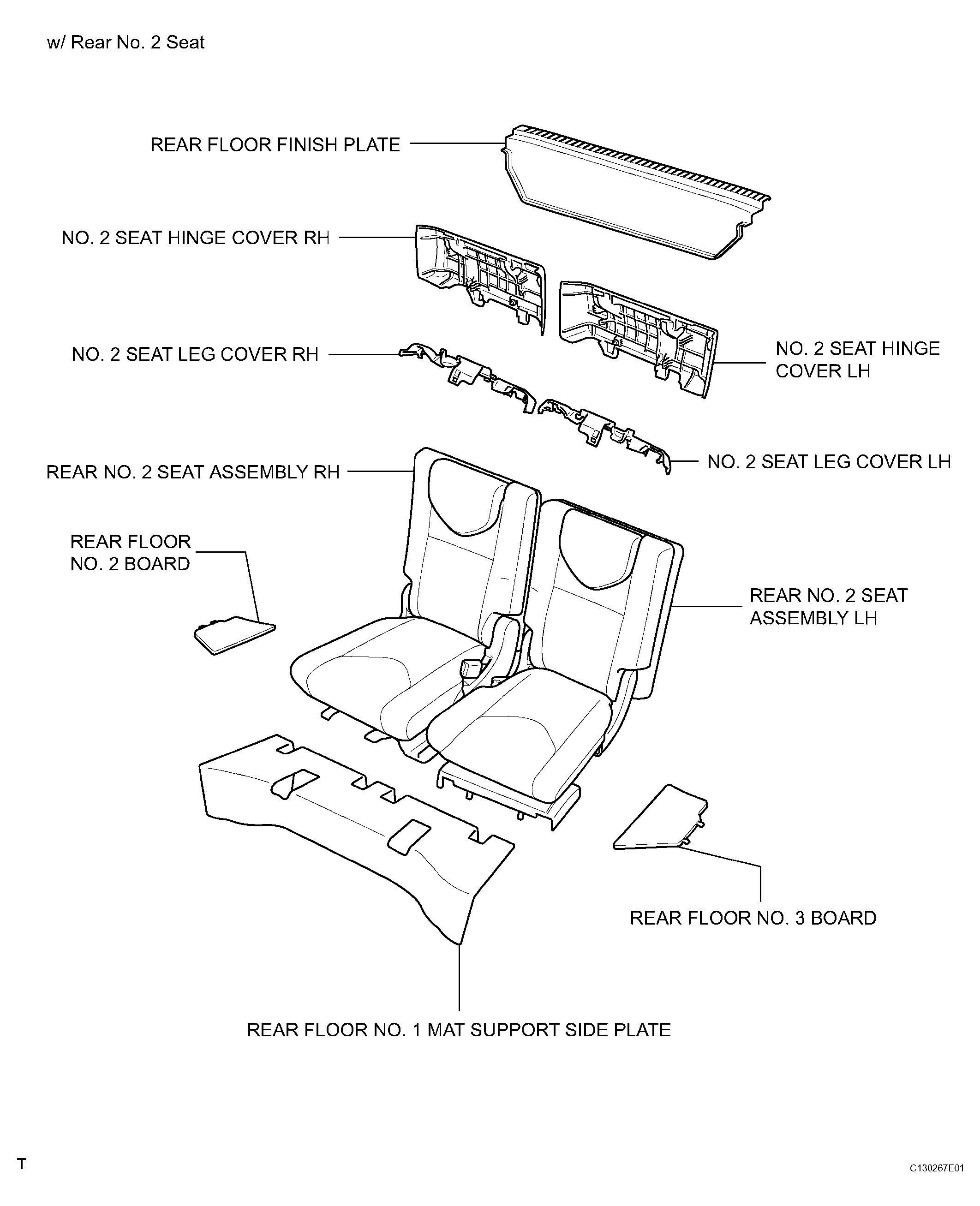

Fig 3: Tire Pressure Warning Receiver (w/Antenna) Replacement Components With Torque Specifications (3 Of 4)

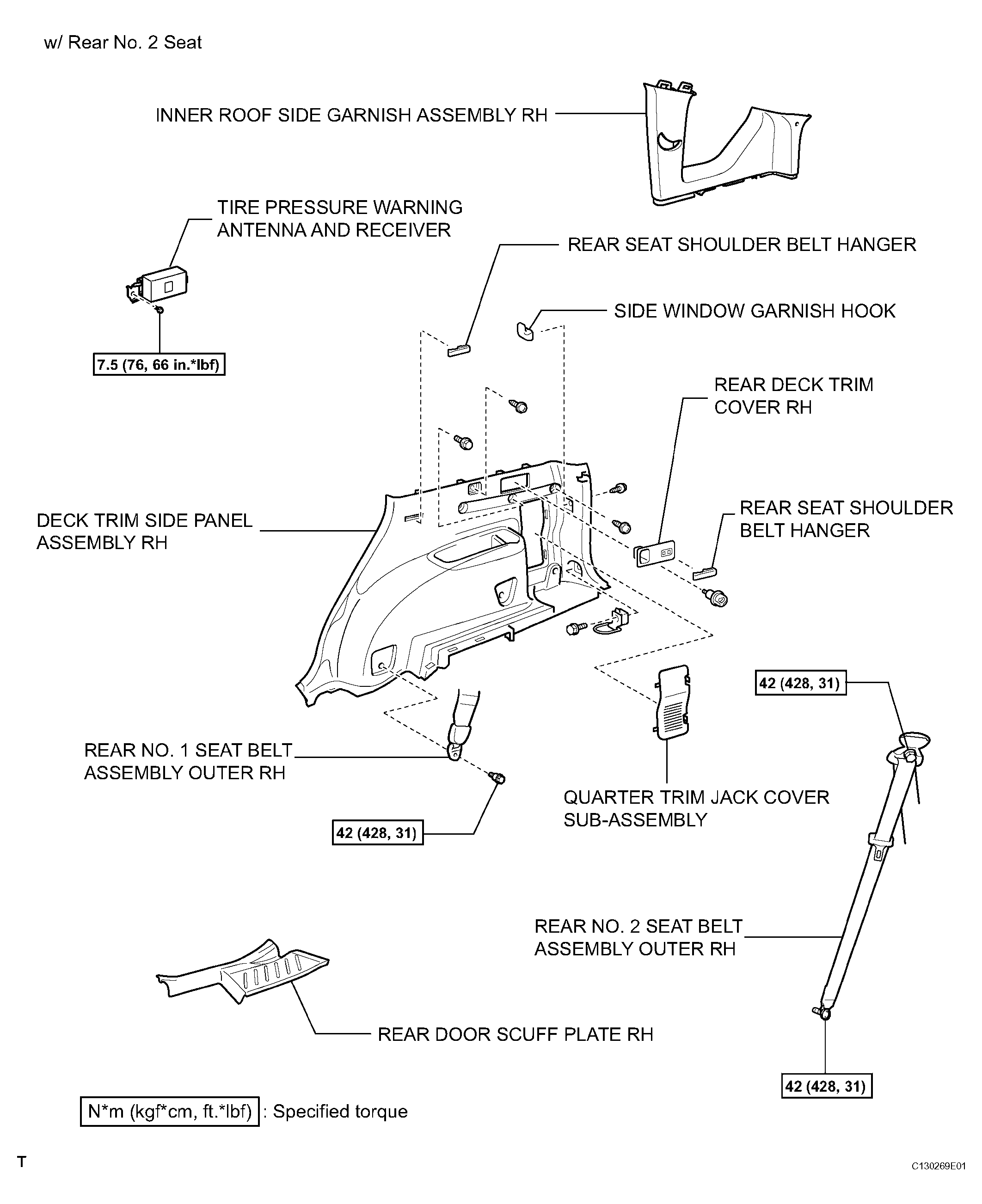

Fig 4: Tire Pressure Warning Receiver (w/Antenna) Replacement Components With Torque Specifications (4 Of 4)
