Overall Electrical Wiring Diagram
>>
Option Connector (Automatic Glare-Resistant EC Mirror), Option Connector (Trailer Towing)
Option Connector (Automatic Glare-Resistant EC Mirror), Option Connector (Trailer Towing)

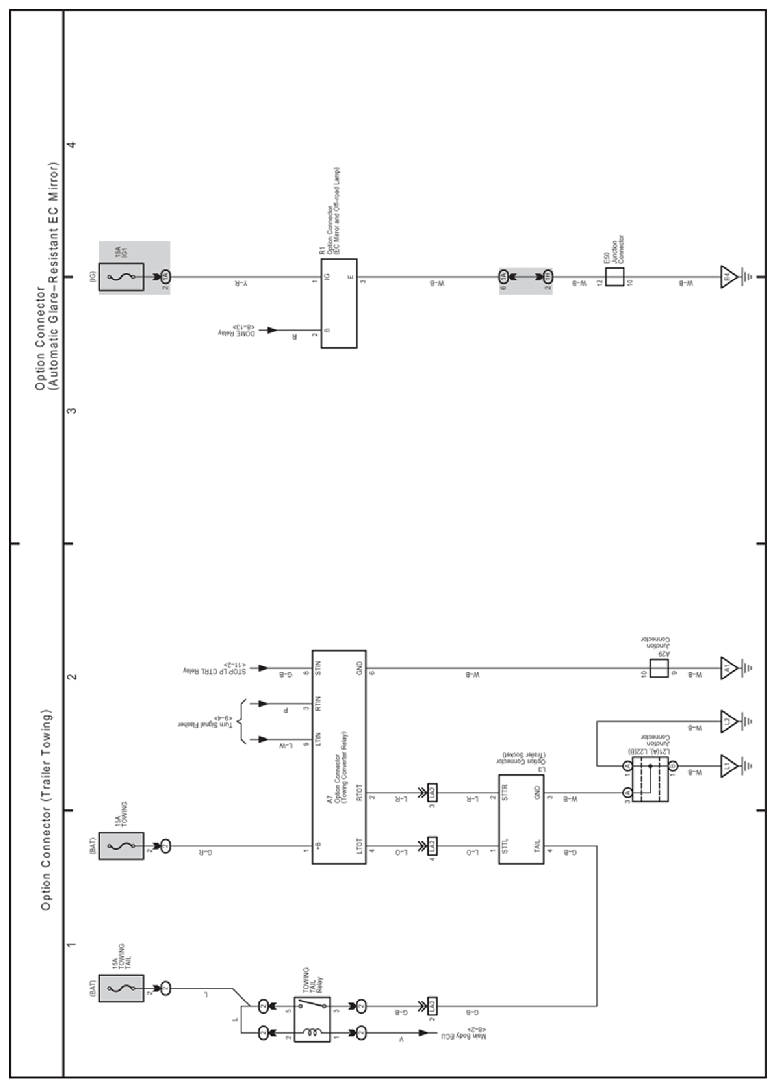

Fig 1: Option Connector (Trailer Towing And Automatic Glare-Resistant EC Mirror) Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
