Illumination, Taillight

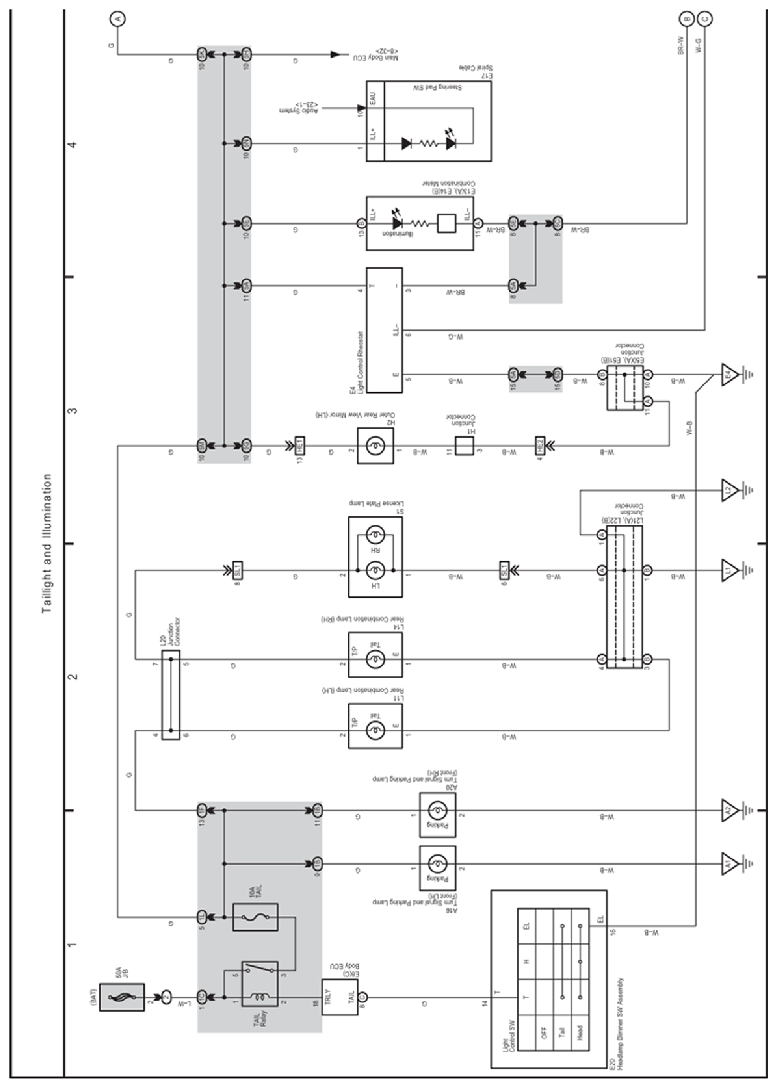

Fig 1: Taillight And Illumination Electrical Wiring Diagram (1 Of 2)
G07595234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

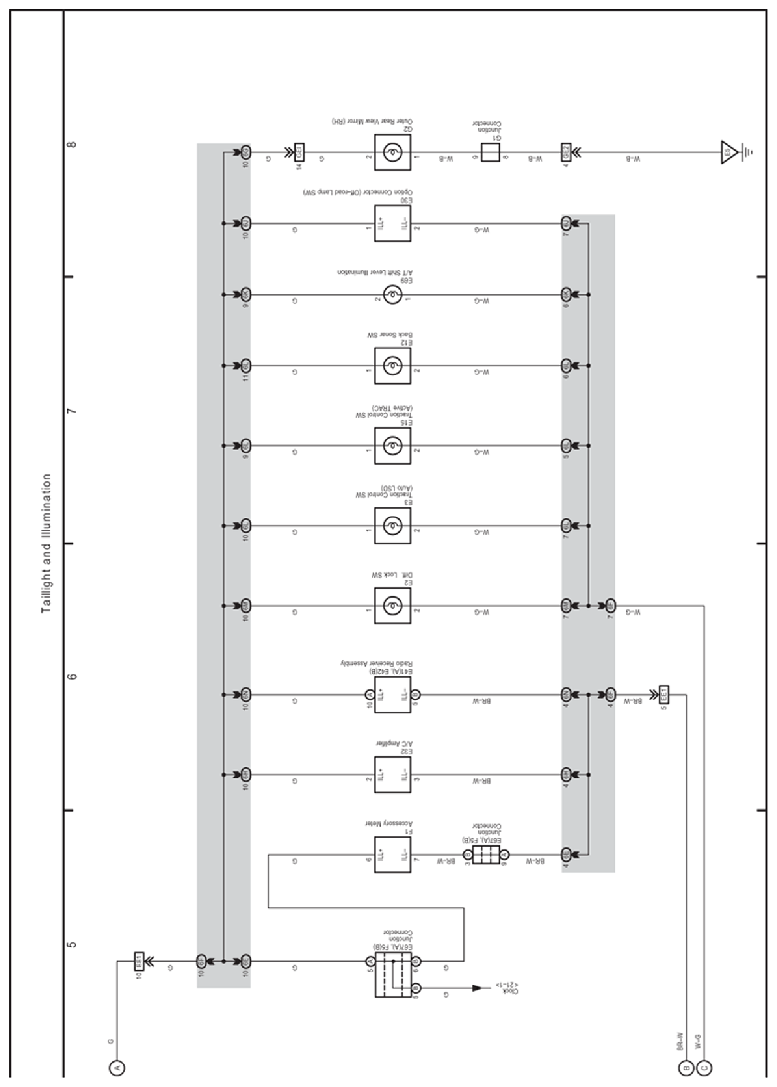

Fig 2: Taillight And Illumination Electrical Wiring Diagram (2 Of 2)
G07595235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
