Audio System

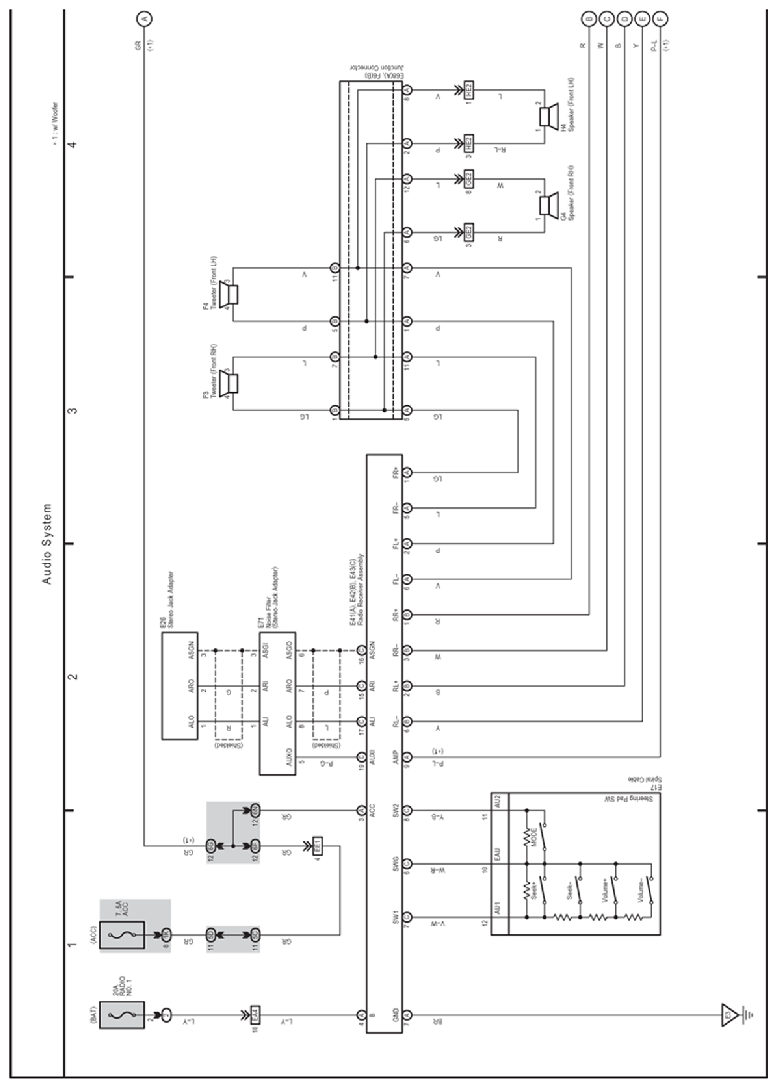

Fig 1: Audio System Electrical Wiring Diagram (1 Of 2)
G07595250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

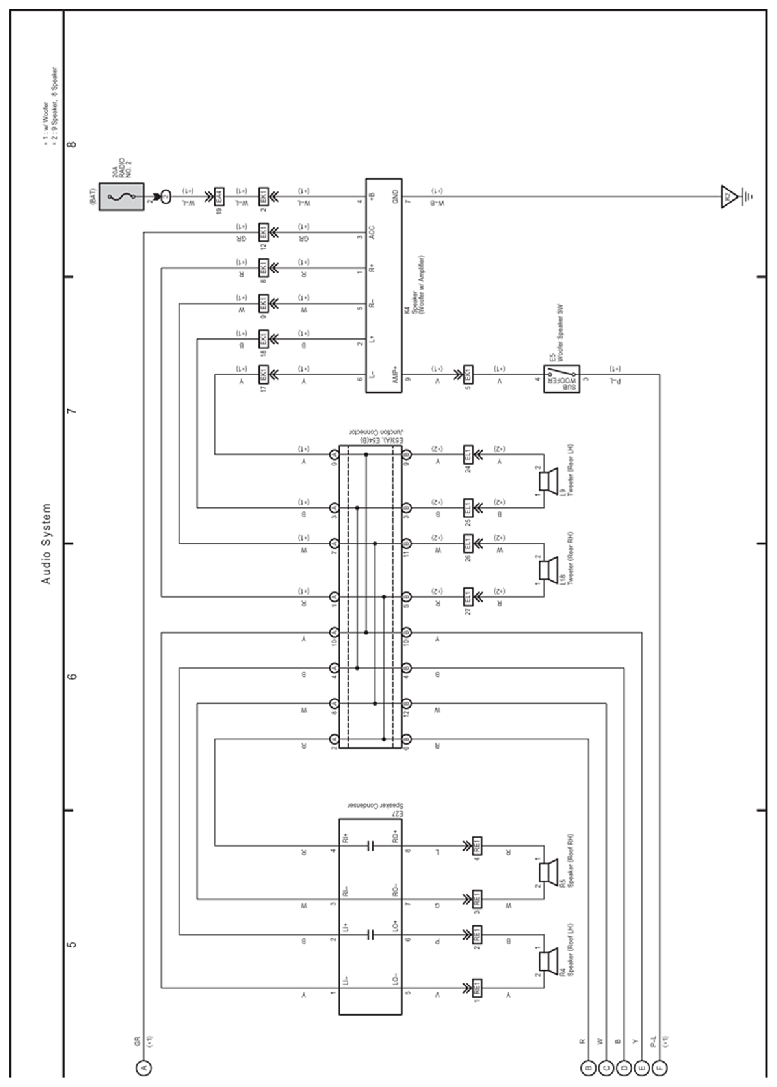

Fig 2: Audio System Electrical Wiring Diagram (2 Of 2)
G07595251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
