ABS, Active TRAC, Auto LSD, TRAC, VSC

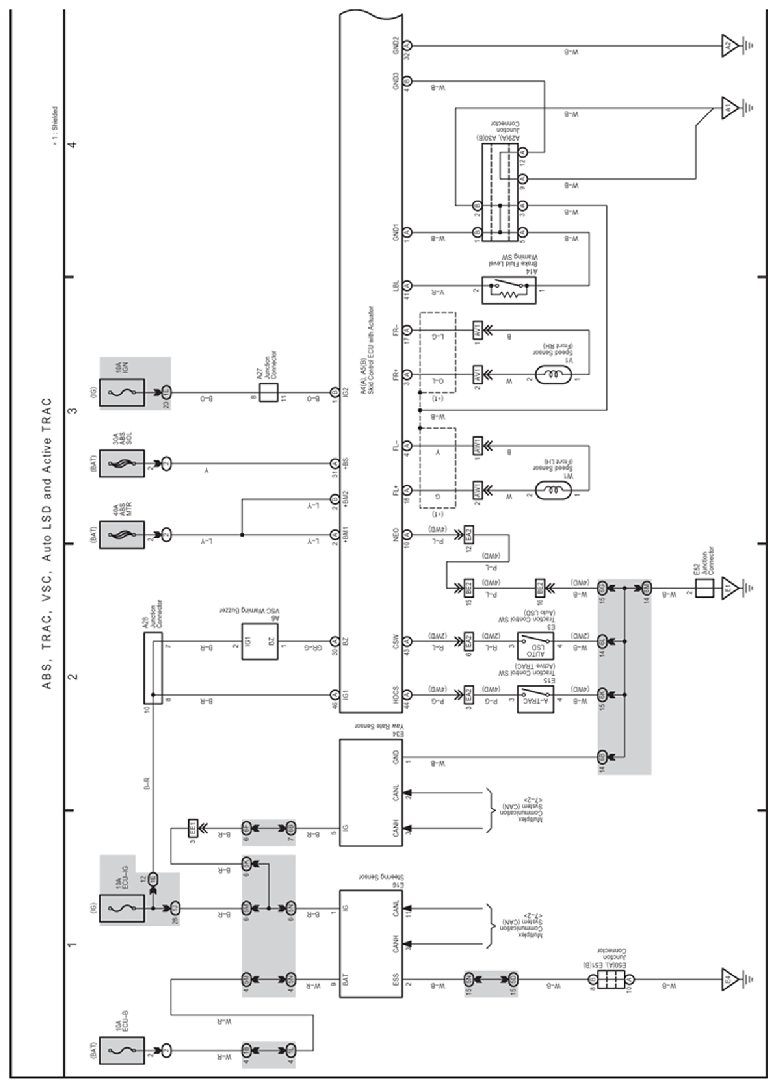

Fig 1: ABS, TRAC, VSC, Auto LSD And Active TRAC Electrical Wiring Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

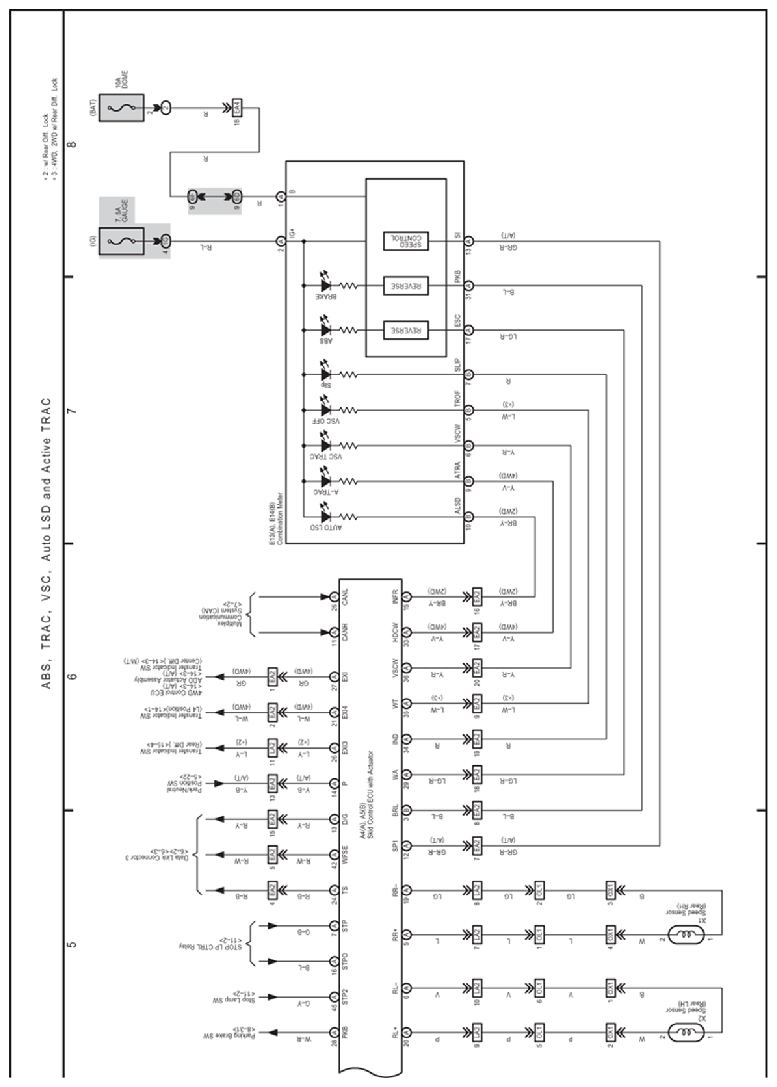

Fig 2: ABS, TRAC, VSC, Auto LSD And Active TRAC Electrical Wiring Diagram (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
