Location of Connector Joining Wire Harness and Wire Harness

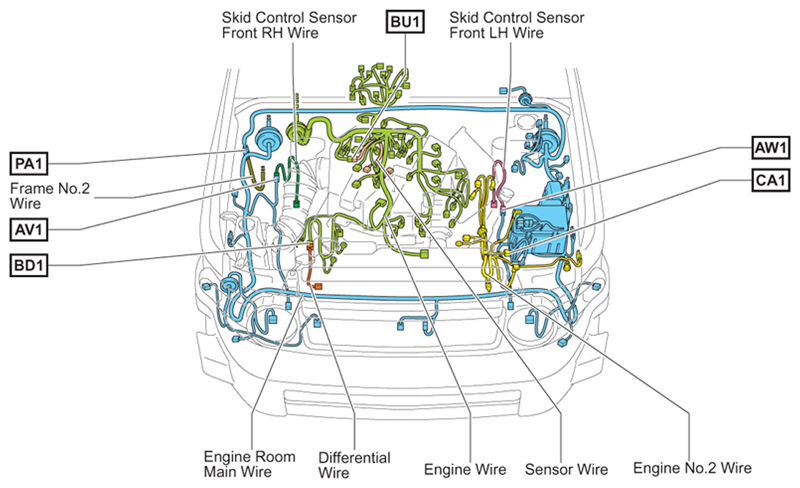

Fig 1: Locating Wire Harness Points
G07595047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Locating Wire Harness Points
G07595049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

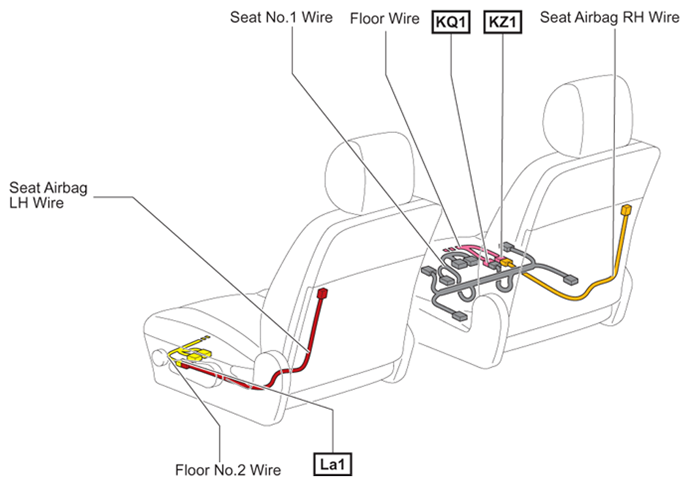

Fig 1: Locating Wire Harnesses Of Seat
G07595053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
