Can Junction Connector Identification
>>

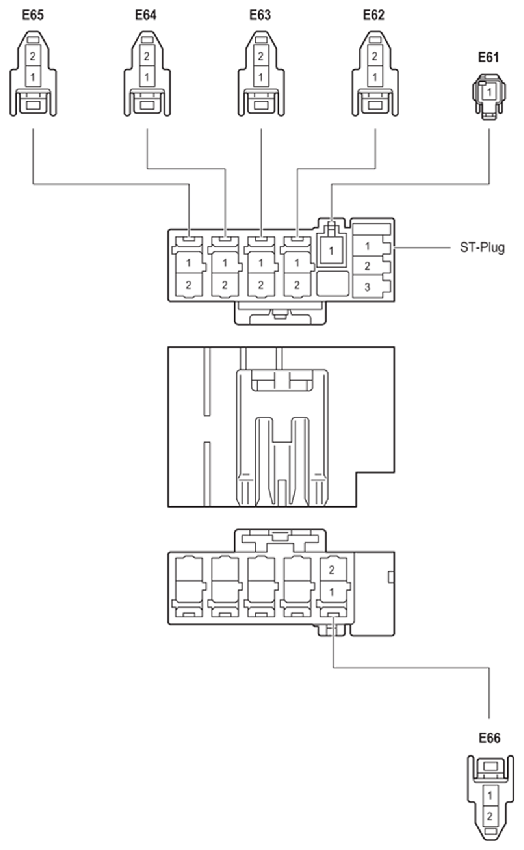

Junction Connector (CAN)
Junction Connector (CAN)
Instrument Panel Center
(See
Figure
)

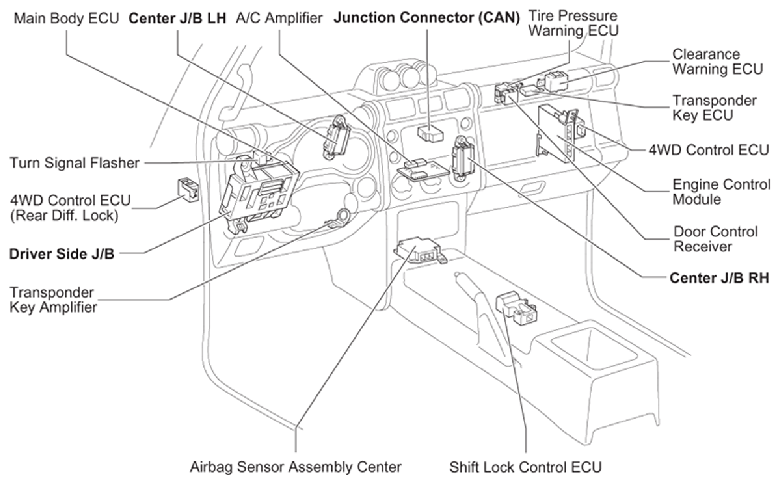

Fig 1: Junction Connector (CAN) Connector Locations
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
