Rear Brake Flexible Hose: Installation

1. Install the flexible hose with a new clip.
2. Using a union nut wrench, install the brake tube onto the flexible hose while holding the flexible hose with a wrench.

   Torque: without union nut wrench

   15 N*m (155 kgf*cm, 11 ft.*lbf)

   with union nut wrench

   14 N*m (144 kgf*cm, 10 ft.*lbf)

   NOTE:

   • This torque value can be obtained by using a torque wrench with a fulcrum length of 300 mm (11.8 in.) and a union nut wrench with a fulcrum length of 22 mm (0.866 in.) (See REPAIR INSTRUCTION ).
   • This torque value is effective when the union nut wrench is parallel to a torque wrench.
3. Install the flexible hose onto the disc brake cylinder with the union bolt and a new gasket.

   Torque: 31 N*m (316 kgf*cm, 23 ft.*lbf)

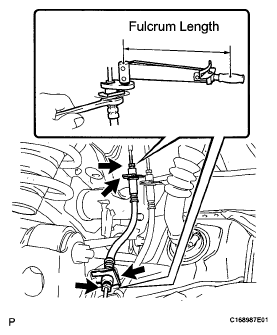

   Fig 1: Locating Flexible Hose

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the flexible hose with 2 new clips.

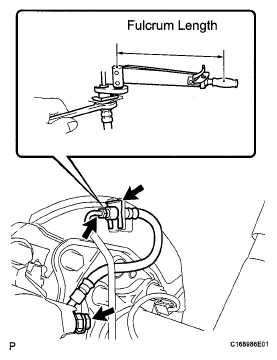

Fig 2: Locating Brake Tubes
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a union nut wrench, install the brake tubes onto the flexible hose while holding the flexible hose with a wrench.

   Torque: without union nut wrench

   15 N*m (155 kgf*cm, 11 ft.*lbf)

   with union nut wrench

   14 N*m (144 kgf*cm, 10 ft.*lbf)

   NOTE:

   • This torque value can be obtained by using a torque wrench with a fulcrum length of 300 mm (11.8 in.) and a union nut wrench with a fulcrum length of 22 mm (0.866 in.) (See REPAIR INSTRUCTION ).
   • This torque value is effective when the union nut wrench is parallel to a torque wrench.

Torque: 112 N*m (1,137 kgf*cm, 82 ft.*lbf)
