Hydraulic Brake Booster: Components

Fig 1: Identifying Hydraulic Brake Booster Components (1 Of 3)
G05112421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

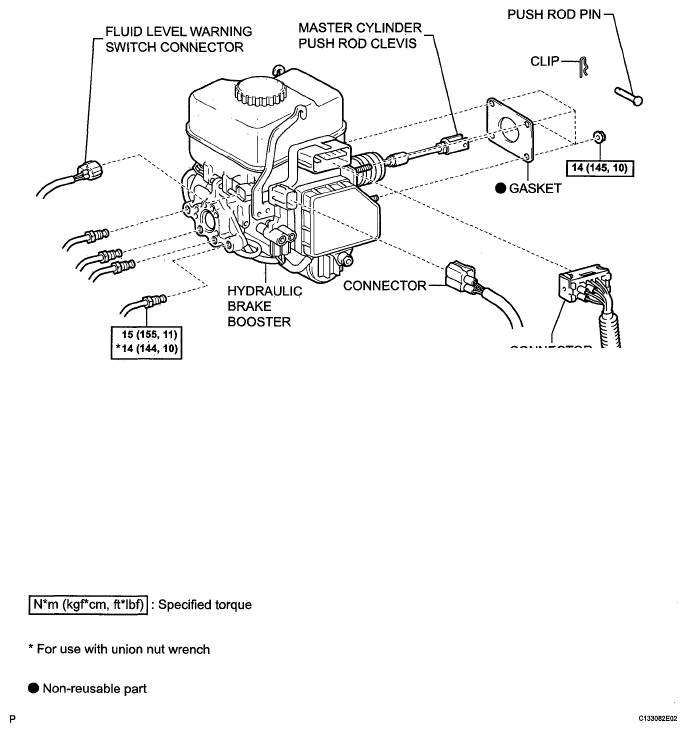

Fig 2: Hydraulic Brake Booster Replacement Components With Torque Specifications (2 Of 3)
G05579964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

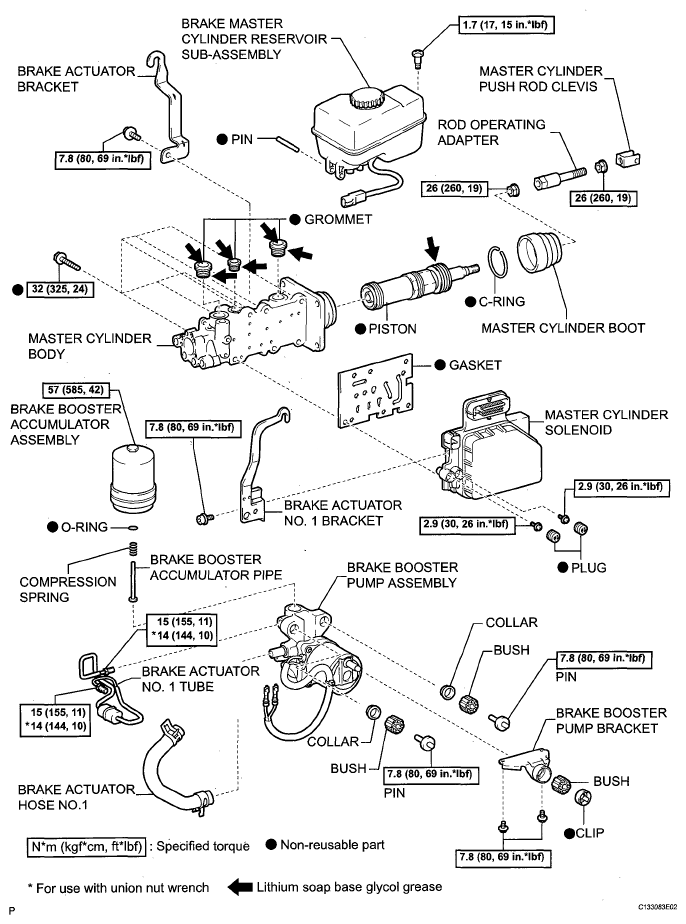

Fig 3: Hydraulic Brake Booster Replacement Components With Torque Specifications (3 Of 3)
G05579965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
