Front Brake Flexible Hose: Installation

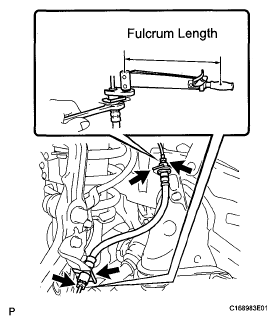

INSTALL FRONT FLEXIBLE HOSE
1. Install the flexible hose with 2 new clips.
2. Using a union nut wrench, install the brake tubes onto the flexible hose while holding the flexible hose with a wrench.
  Torque: without union nut wrench

  15 N*m (155 kgf*cm, 11 ft.*lbf)

  with union nut wrench

  14 N*m (144 kgf*cm, 10 ft.*lbf)
  NOTE:
  - This torque value can be obtained by using a torque wrench with a fulcrum length of 300 mm (11.8 in.) and a union nut wrench with a fulcrum length of 22 mm (0.866 in.) (See REPAIR INSTRUCTION ).
  - This torque value is effective when the union nut wrench is parallel to a torque wrench.
FILL RESERVOIR WITH BRAKE FLUID (See BLEEDING )
BLEED BRAKE LINE (See BLEEDING )
CHECK FLUID LEVEL IN RESERVOIR (See BLEEDING )
CHECK FOR BRAKE FLUID LEAKAGE
INSTALL FRONT WHEEL
Torque: 112 N*m (1,137 kgf*cm, 82 ft.*lbf)
