System Diagram

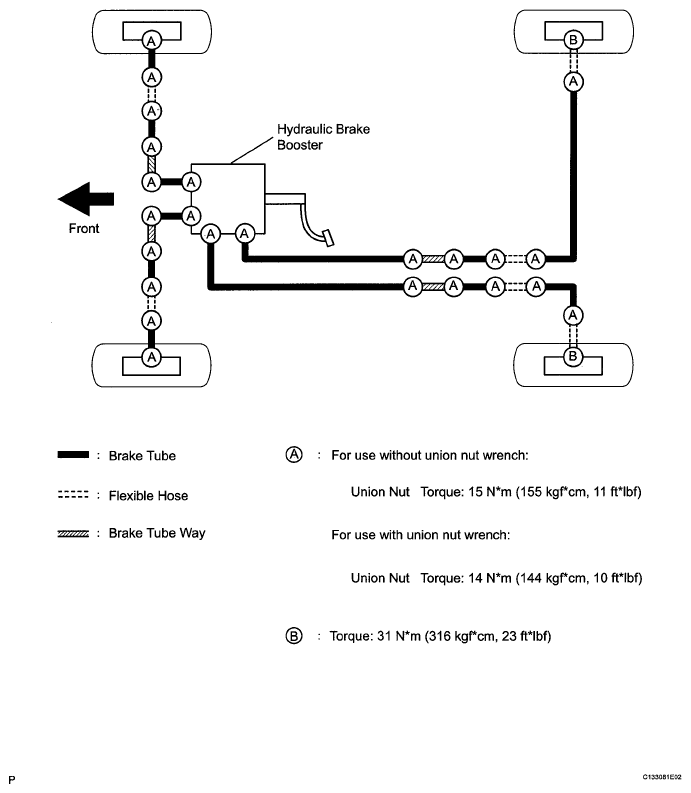

Fig 1: Identifying Brake System Diagram

G05579939

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
