Brake Pedal: Components

Fig 1: Identifying Brake Pedal Components (1 Of 2)
G05579942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

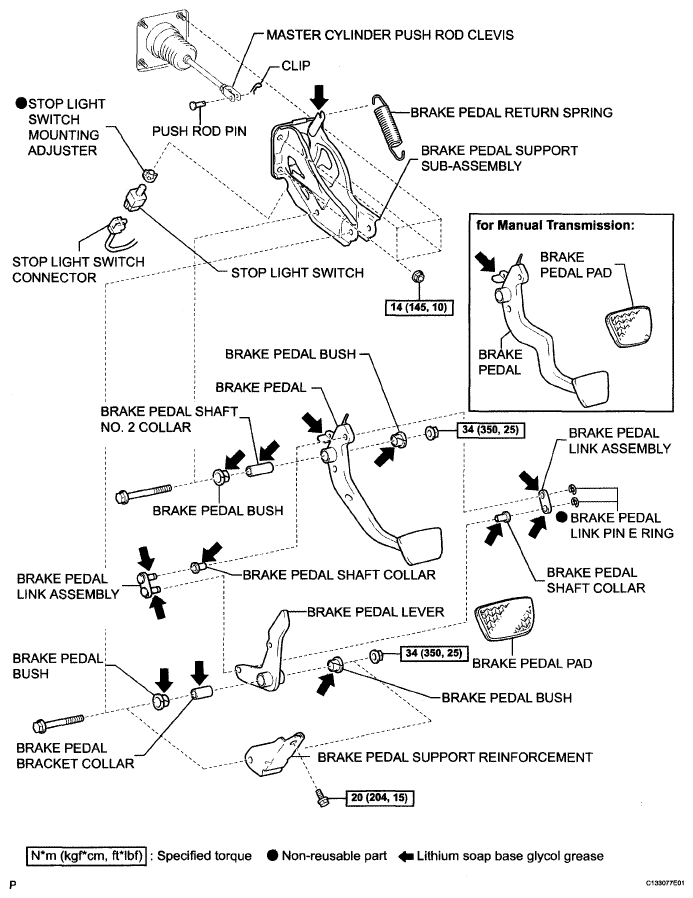

Fig 2: Brake Pedal Replacement Components With Torque Specifications (2 Of 2)
G05112401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
