Roof Headlining: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  2. REMOVE REAR SEATBACK BOARD CARPET ASSEMBLY RH  (See REMOVAL )
  3. REMOVE REAR SEATBACK ASSEMBLY RH  (See REMOVAL )
  4. REMOVE REAR SEATBACK BOARD CARPET ASSEMBLY LH  (See REMOVAL )
  5. REMOVE REAR SEATBACK ASSEMBLY LH  (See REMOVAL )
  6. REMOVE REAR FLOOR BOARD
    1. Remove the bolt and the luggage hold belt striker.

      HINT:

      Use the same procedure for both sides.

      Fig 1: Identifying Luggage Hold Belt Striker Bolt
      G05581294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clip and the claw and remove the rear floor board.
      Fig 2: Identifying Rear Floor Board Clip And Claw
      G05115115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE REAR FLOOR MAT SUPPORT PLATE
    1. Remove the 5 screws.
      Fig 3: Identifying Rear Floor Mat Support Plate Screws
      G05115116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 11 claws and remove the rear floor mat support plate.
    Fig 4: Identifying Rear Floor Mat Support Plate Claws
    G05115117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY

    HINT:

    Use the same procedure for both sides.

    1. Remove the cap.
    2. Remove the bolt and the luggage hold belt striker.
      Fig 5: Identifying Luggage Hold Belt Striker Bolt
      G05581298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE REAR FLOOR MAT ASSEMBLY
    1. Using a clip remover, remove the 2 clips and the rear floor mat.
      Fig 6: Identifying Rear Floor Mat Clips
      G05115119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE FRONT DOOR SCUFF PLATE RH
    1. Disengage the 14 claws and remove the front door scuff plate.
    Fig 7: Identifying Front Door Scuff Plate Claws
    G05115120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE FRONT DOOR SCUFF PLATE LH

    HINT:

    Use the same procedure as for the RH side.

  12. REMOVE ACCESS DOOR SCUFF PLATE RH
    1. Disengage the 6 claws and remove the access door scuff plate.
      2. Fig 8: Identifying Access Door Scuff Plate Claws
      G05115121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE ACCESS DOOR SCUFF PLATE LH

    HINT:

    Use the same procedure as for the RH side.

  14. REMOVE FRONT FLOOR FOOTREST  (See REMOVAL  )
  15. REMOVE FOOTREST CLIP  (See REMOVAL  )
  16. REMOVE COWL SIDE TRIM BOARD RH
    1. Remove the clip.
    2. Disengage the 2 claws and remove the cowl side trim board.
      3. Fig 9: Identifying Cowl Side Trim Board Claws
      G05115122Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE COWL SIDE TRIM BOARD LH

    HINT:

    Use the same procedure as for the RH side.

  18. REMOVE ROOF SIDE INNER GARNISH COVER RH

    HINT:

    Use the same procedure for both sides.

    1. Using a screwdriver with its tip wrapped in protective tape, disengage the 2 claws and remove the roof side inner garnish cover.
    Fig 10: Identifying Roof Side Inner Garnish Cover LH
    G05115123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE ROOF SIDE INNER GARNISH COVER LH

    HINT:

    Use the same procedure as for the RH side.

  20. REMOVE ROOF SIDE RAIL GARNISH RH
    1. Remove the 2 bolts.
    2. Disengage the 2 claws and remove the roof side rail garnish.
    Fig 11: Identifying Roof Side Rail Garnish Claws
    G05115124Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE ROOF SIDE RAIL GARNISH LH

    HINT:

    Use the same procedure as for the RH side.

  22. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
    1. Remove the front door opening trim weatherstrip.
    Fig 12: Identifying Front Door Opening Trim Weatherstrip
    G05115125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH

    HINT:

    Use the same procedure as for the RH side.

  24. REMOVE ASSIST GRIP PLUG

    HINT:

    Use the same procedure to remove all the assist grip plugs.

    1. Using a screwdriver with its tip wrapped in protective tape, disengage the 2 claws and remove the assist grip plug.

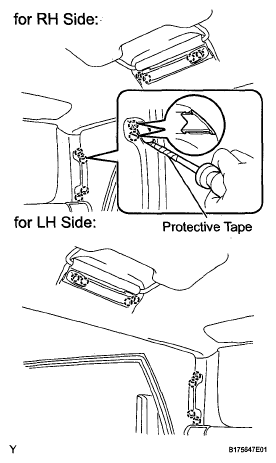

      Fig 13: Identifying Assist Grip Plug
      G05581306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE ASSIST GRIP ASSEMBLY

    HINT:

    Use the same procedure to remove all the assist grips.

    1. Remove the 2 screws and the assist grip.
      Fig 14: Identifying Assist Grip Screws
      G05581307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE VISOR SUB-ASSEMBLY RH
    1. Disengage the 2 claws and remove the visor sub-assembly.
    Fig 15: Identifying Visor Sub-Assembly Claws
    G05581308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE VISOR SUB-ASSEMBLY LH

    HINT:

    Use the same procedure as for the RH side.

  28. REMOVE FRONT PILLAR GARNISH RH
    1. Disengage the 2 clips and the claw and remove the front pillar garnish.
    Fig 16: Identifying Front Pillar Garnish Clips And Claw
    G05115128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE FRONT PILLAR GARNISH LH

    HINT:

    Use the same procedure as for the RH side.

  30. REMOVE DECK SIDE GARNISH (w/ Woofer)
    1. Disengage the 6 claws and remove the rear deck side garnish.
    Fig 17: Identifying Rear Deck Side Garnish Claws
    G05115129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. REMOVE SPEAKER MOUNTING COVER (w/ Woofer)  (See REMOVAL )
  32. REMOVE AMPLIFIER BOX SPEAKER ASSEMBLY (w/ Woofer)  (See REMOVAL )
  33. REMOVE PACKAGE HOLDER NET HOOK

    HINT:

    Use the same procedure to remove all the package holder net hooks.

    1. Remove the screw and the package holder net hook.
      Fig 18: Identifying Package Holder Net Hook Screws
      G05581311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. REMOVE QUARTER TRIM POCKET TRAY (W/o Woofer)
    1. Disengage the 7 claws and remove the quarter trim pocket tray.
      Fig 19: Identifying Quarter Trim Pocket Tray Claws
      G05115131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE SIDE TRIM COVER (w/o Woofer)
    1. Disengage the 8 claws and remove the side trim cover.
      Fig 20: Identifying Side Trim Cover Claws
      G05115132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. REMOVE QUARTER TRIM POCKET (w/o Woofer)
    1. Disengage the 6 claws and remove the quarter trim pocket.
      Fig 21: Identifying Quarter Trim Pocket Claws
      G05115133Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. REMOVE LAP BELT OUTER ANCHOR COVER

    HINT:

    Use the same procedure for both sides.

    1. Disengage the 3 claws and remove the lap belt outer anchor cover.
      Fig 22: Identifying Lap Belt Outer Anchor Cover Claws
      G05581315Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. REMOVE REAR SEAT OUTER BELT ASSEMBLY RH
    1. Remove the bolt and the anchor plate.
    Fig 23: Identifying Anchor Plate Bolt
    G05115135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. REMOVE REAR SEAT OUTER BELT ASSEMBLY LH

    HINT:

    Use the same procedure as for the RH side.

  40. REMOVE REAR DECK TRIM COVER (w/Power Outlet Socket)
    1. Disengage the 8 claws and remove the rear deck trim cover.
      Fig 24: Identifying Rear Deck Trim Cover Claws
      G05115136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the power outlet connector.
      Fig 25: Identifying Power Outlet Connector
      G05115191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  41. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH
    1. Remove the 4 screws.
      Fig 26: Identifying Anchor Plate Screw
      G05115138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 6 clips and the 8 claws and remove the deck trim side panel.
      Fig 27: Identifying Deck Trim Side Panel Claws And Clips
      G05115139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  42. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH
    1. Remove the 3 screws.
      Fig 28: Identifying Deck Trim Side Panel Screw
      G05115140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 6 clips and the 8 claws and remove the deck trim side panel.
      Fig 29: Identifying Roof Side Inner Garnish Clips And Claws
      G05115141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  43. REMOVE ROOF SIDE INNER GARNISH RH
    1. Using a screwdriver with its tip wrapped in protective tape, disengage the claw and open the cover.
      Fig 30: Identifying Claw
      G05115142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and the clip.
      3. Fig 31: Identifying Roof Side Inner Garnish Bolts
      G05115143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 7 clips and the claw and remove the roof side inner garnish.
    4. Pass the rear seat outer belt through the slit in the roof side inner garnish.
  44. REMOVE ROOF SIDE INNER GARNISH LH

    HINT:

    Use the same procedure as for the RH side.

  45. REMOVE ROOF HEADLINING HOLE PLUG

    HINT:

    Use the same procedure for both sides.

    1. Using a screwdriver with its tip wrapped in protective tape, disengage the 3 claws and open the cover.
      Fig 32: Identifying Cover Claws
      G05581325Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt.
    3. Disengage the claw and remove the roof headlining hole plug.
      Fig 33: Identifying Roof Headlining Hole Plug Bolt
      G05581326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  46. REMOVE COAT HOOK

    HINT:

    Use the same procedure for both sides.

    1. Using a screwdriver with its tip wrapped in protective tape, disengage the claw and open the cover.
      Fig 34: Identifying Cover Claws
      G05581327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and the coat hook.
      Fig 35: Identifying Coat Hook Bolt
      G05581328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  47. REMOVE VISOR ASSEMBLY RH
    1. Remove the visor support shaft from the visor holder.
    2. Remove the 2 screws and the visor.
    Fig 36: Identifying Visor Screws
    G05115148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  48. REMOVE VISOR ASSEMBLY LH

    HINT:

    Use the same procedure as for the RH side.

  49. REMOVE VISOR HOLDER

    HINT:

    Use the same procedure for both sides.

    1. Disengage the 2 claws by turning the visor counterclockwise between 60 to 120° and remove the visor holder.

      HINT:

      The claw may be damaged during removal.

      However, it is reusable because this does not effect its function.

    Fig 37: Identifying Visor Holder
    G05581330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  50. REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER  (See REMOVAL )
  51. REMOVE INNER REAR VIEW MIRROR ASSEMBLY  (See REMOVAL )
  52. REMOVE ROOM LIGHT ASSEMBLY

    HINT:

    The procedure described below is for the front side. Use the same procedure for both the front and rear sides, unless otherwise specified.

    Fig 38: Identifying Room Light Assembly
    G05115150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a screwdriver with its tip wrapped in protective tape, disengage the 4 claws and remove the room light lens.
      Fig 39: Identifying Room Light Lens
      G05115151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver with its tip wrapped in protective tape, disengage the 2 claws and remove the cover.

      HINT:

      Use the same procedure as for the opposite side.

      Fig 40: Identifying Cover Claws
      G05115152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a screwdriver with its tip wrapped in protective tape, disengage the 4 claws and remove the room light.
      Fig 41: Identifying Room Light Claws
      G05115153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. for Front Side:
      1. Remove the 2 wire harnesses from the 2 claws of the room light.
      2. Using a screwdriver with its tip wrapped in protective tape, disengage the 4 claws and remove the room light switch base.
        Fig 42: Identifying Room Light Switch Base Claws (Front)
        G05115154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. for Rear Side:
      1. Remove the wire harness from the claw of the room light.
      2. Using a screwdriver with its tip wrapped in protective tape, disengage the 4 claws and remove the room light switch base.
      Fig 43: Identifying Room Light Switch Base Claws (Rear)
      G05115155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  53. REMOVE INSTRUMENT PANEL REGISTER ASSEMBLY  (See REMOVAL )
  54. REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY  (See REMOVAL )
  55. REMOVE INSTRUMENT PANEL FINISH LOWER PANEL SUB-ASSEMBLY  (See REMOVAL )
  56. REMOVE ROOF HEADLINING
    1. Remove the wire harness from the 2 clamps.
    2. Disconnect the 2 connectors.
    3. Using a clip remover, remove the clamp.
      Fig 44: Identifying Roof Headlining Clamps
      G05115156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using a clip remover, remove the 3 clamps and the connector.
      Fig 45: Identifying Roof Headlining Clamps & Connector
      G05115157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Using a clip remover, remove the 4 clips.
      Fig 46: Identifying Roof Headlining Clips
      G05115158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the roof headlining from the back door.
      Fig 47: Removing/Installing Roof Headlining From Back Door
      G05115159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
scientia non olet · About LEMON Manuals
