System Diagram

  1. COMBINATION METER ASSEMBLY

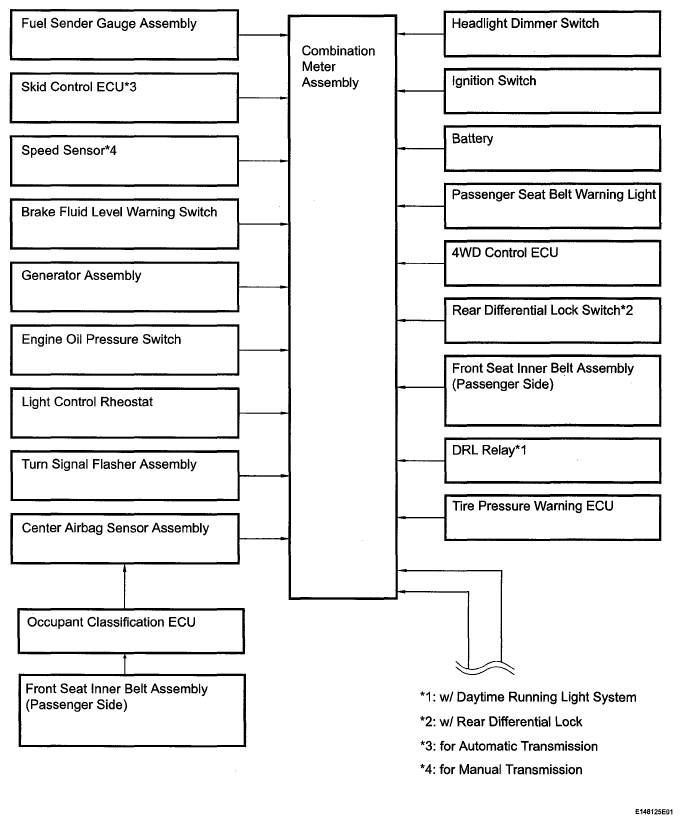

    Fig 1: Meter / Gauge System Diagram (1 Of 2)
    G05580936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

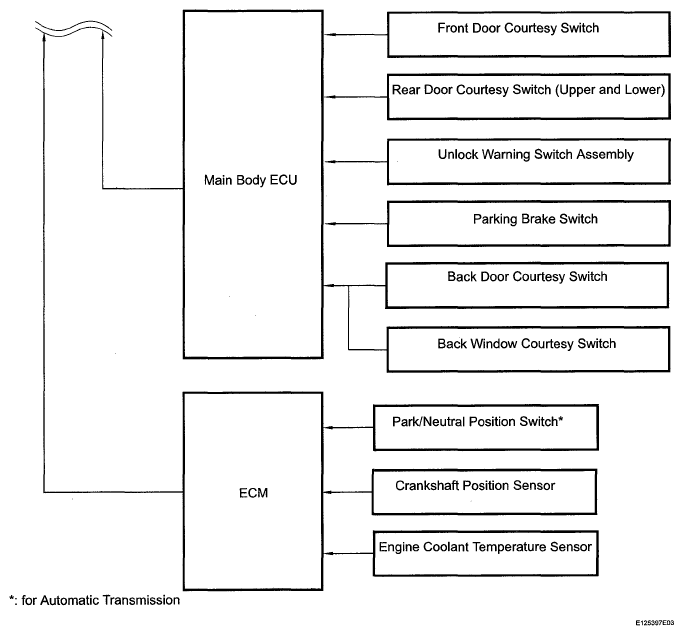

    Fig 2: Meter / Gauge System Diagram (2 Of 2)
    G05580937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. ACCESSORY METER ASSEMBLY
    Fig 3: Accessory Meter Assembly System Diagram
    G05580938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
