Parts Location

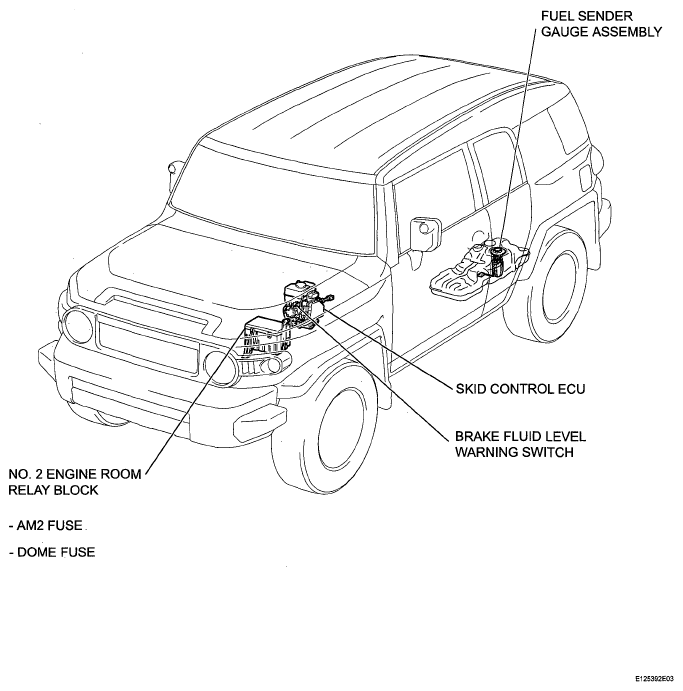

Fig 1: Identifying Meter / Gauge System Components Location (1 Of 5)
G05580931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

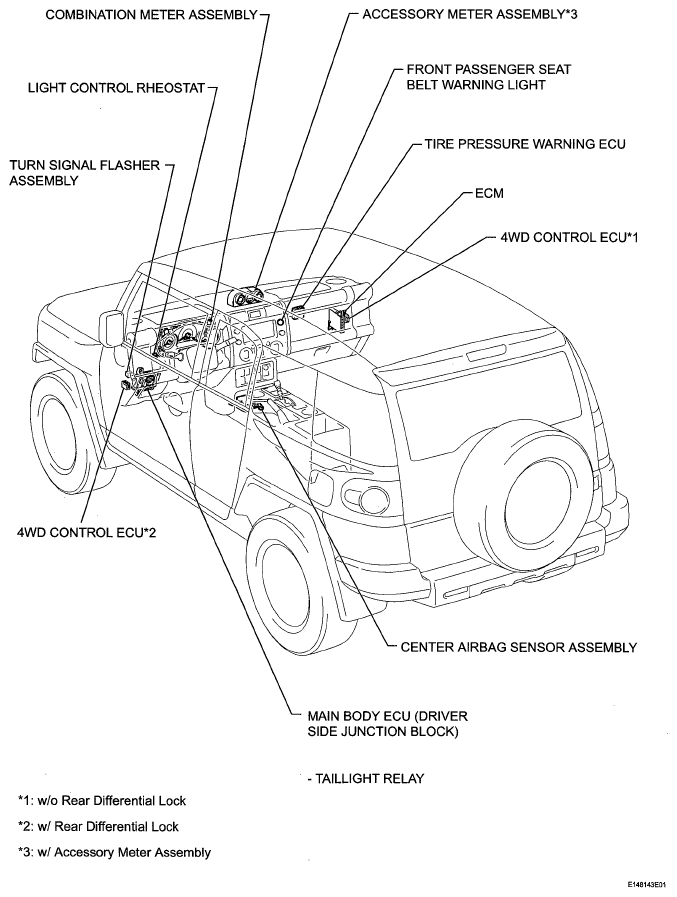

Fig 2: Identifying Meter / Gauge System Components Location (2 Of 5)
G05580932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

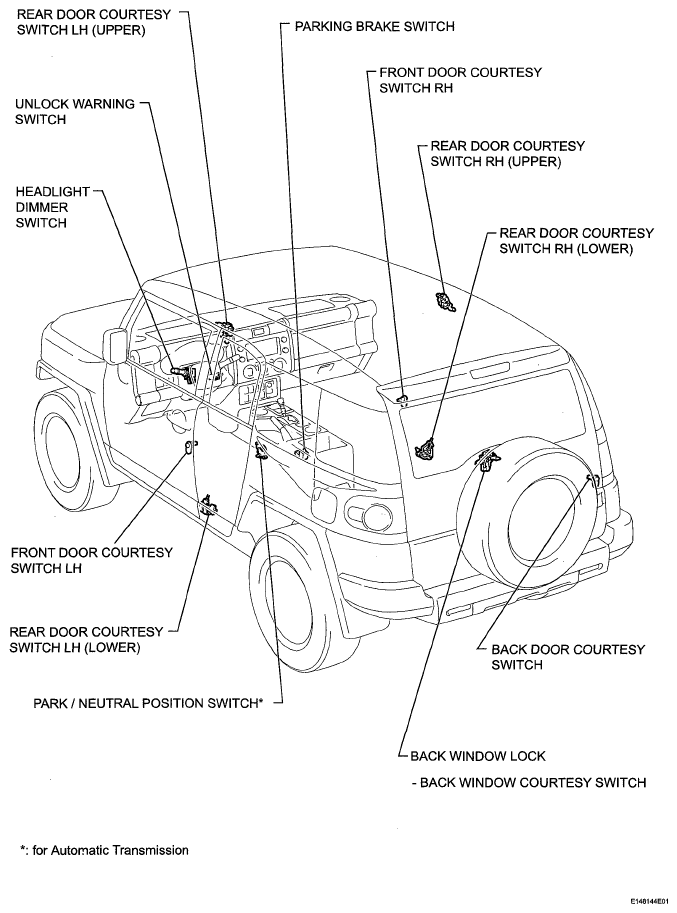

Fig 3: Identifying Meter / Gauge System Components Location (3 Of 5)
G05580933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

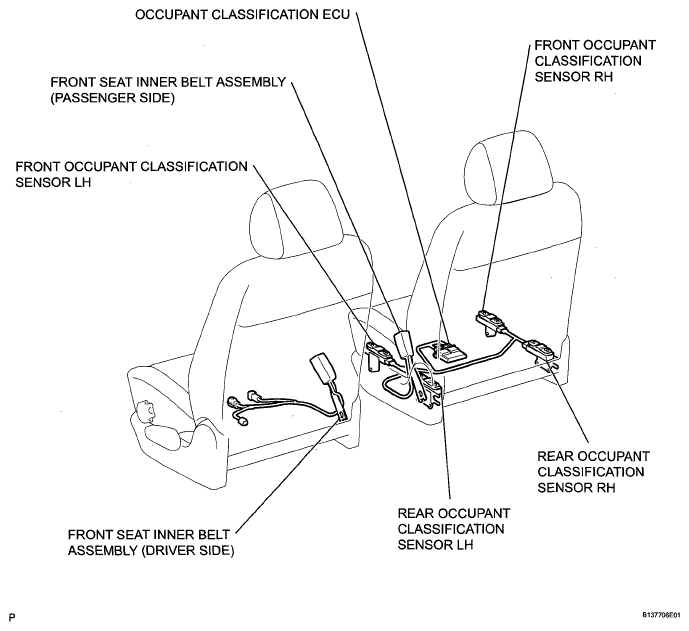

Fig 4: Identifying Meter / Gauge System Components Location (4 Of 5)
G05580934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

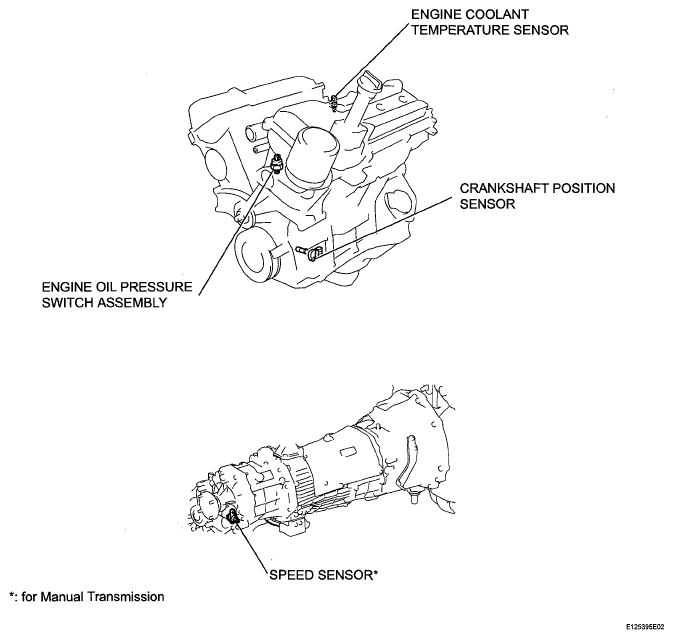

Fig 5: Identifying Meter / Gauge System Components Location (5 Of 5)
G05580935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
