Malfunction in Water Temperature Warning Light: Wiring Diagram

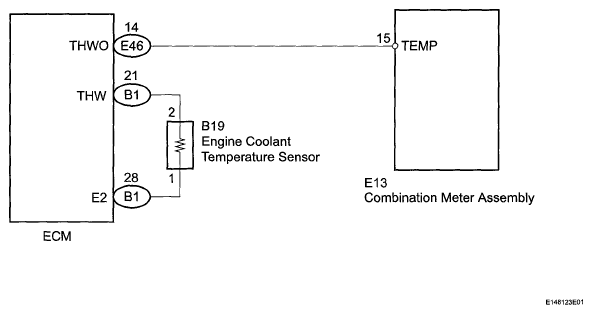

Fig 1: Malfunction In Water Temperature Warning Light - Wiring Diagram

G05580977

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
