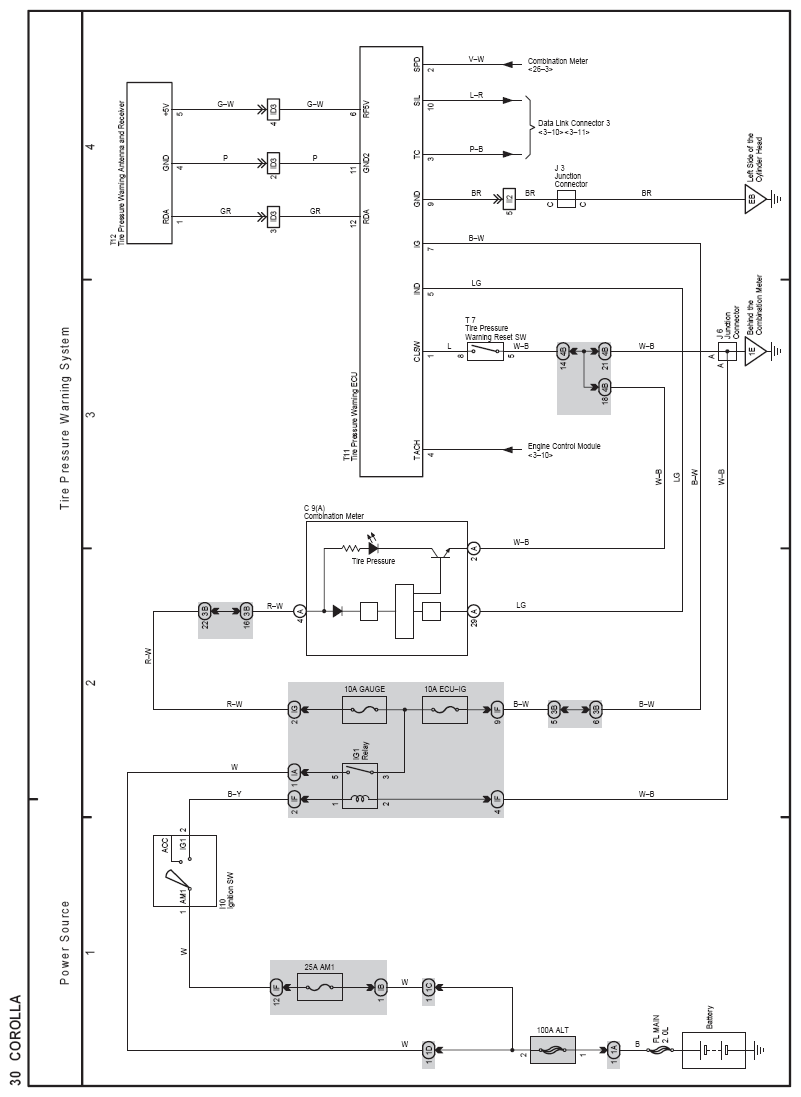

Home >> Toyota >> 2008 >> Corolla LE, Automatic >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> OEM Overall Electrical Wiring Diagram >> Overall Electrical Wiring Diagram >> Tire Pressure Warning System
