Overall Electrical Wiring Diagram: Taillight

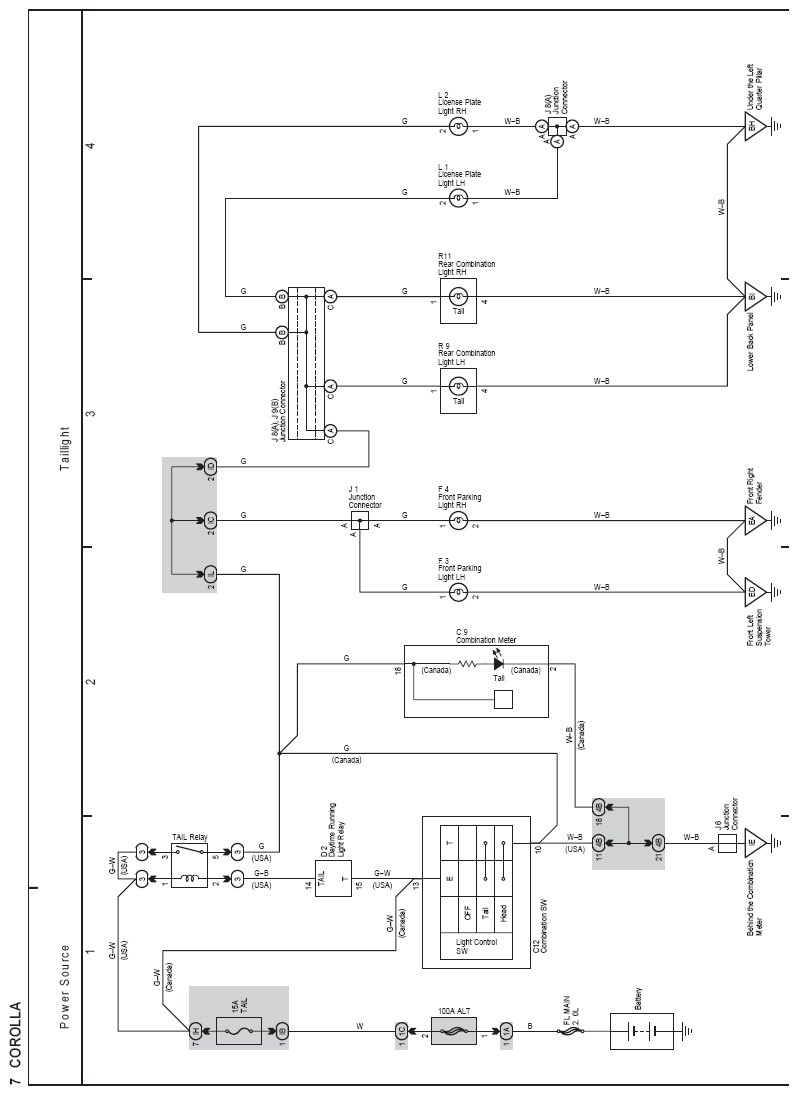

Fig 1: Taillight Electrical Wiring Diagram

G07604162

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
