Overall Electrical Wiring Diagram: Illumination

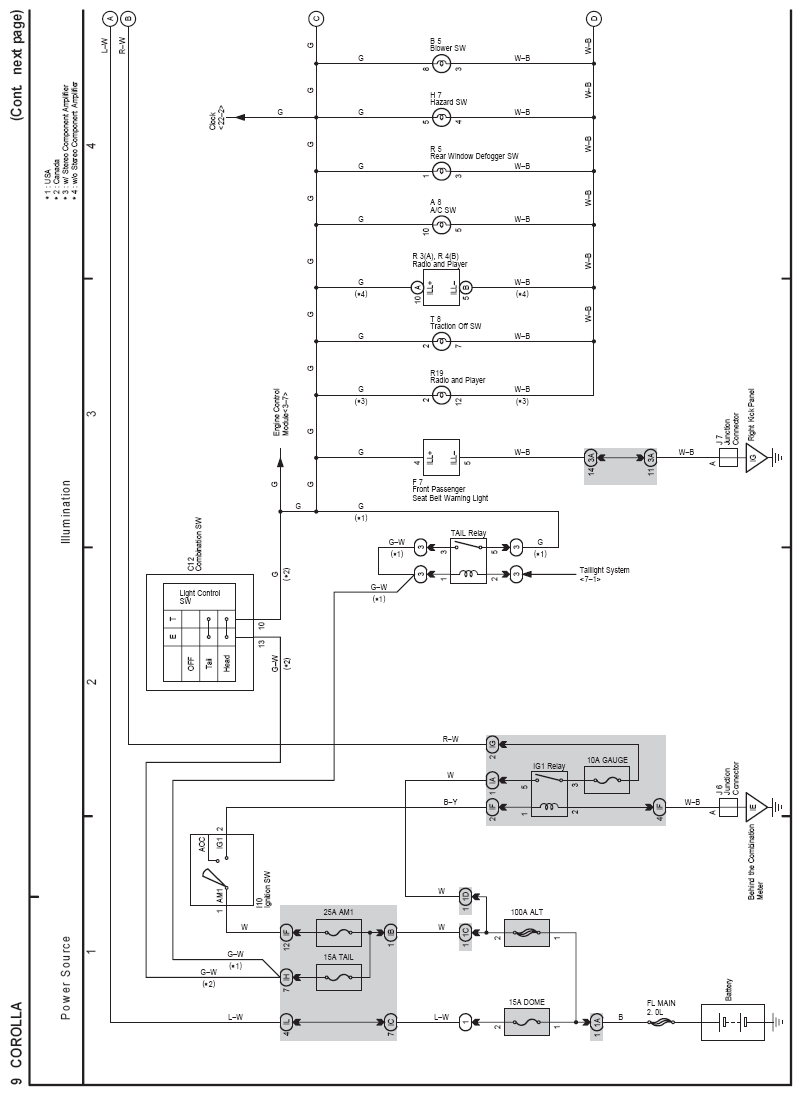

Fig 1: Illumination Electrical Wiring Diagram (1 Of 2)
G07604164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

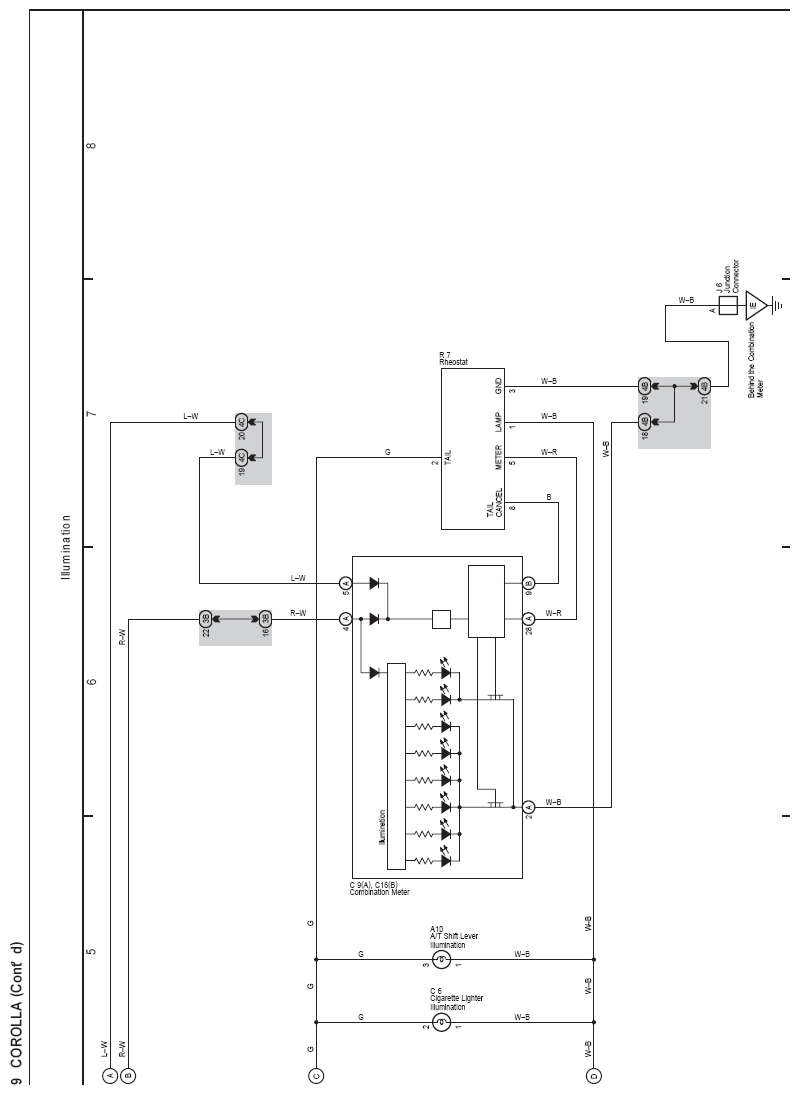

Fig 2: Illumination Electrical Wiring Diagram (2 Of 2)
G07604165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
