Ignition, Power Source, Starting

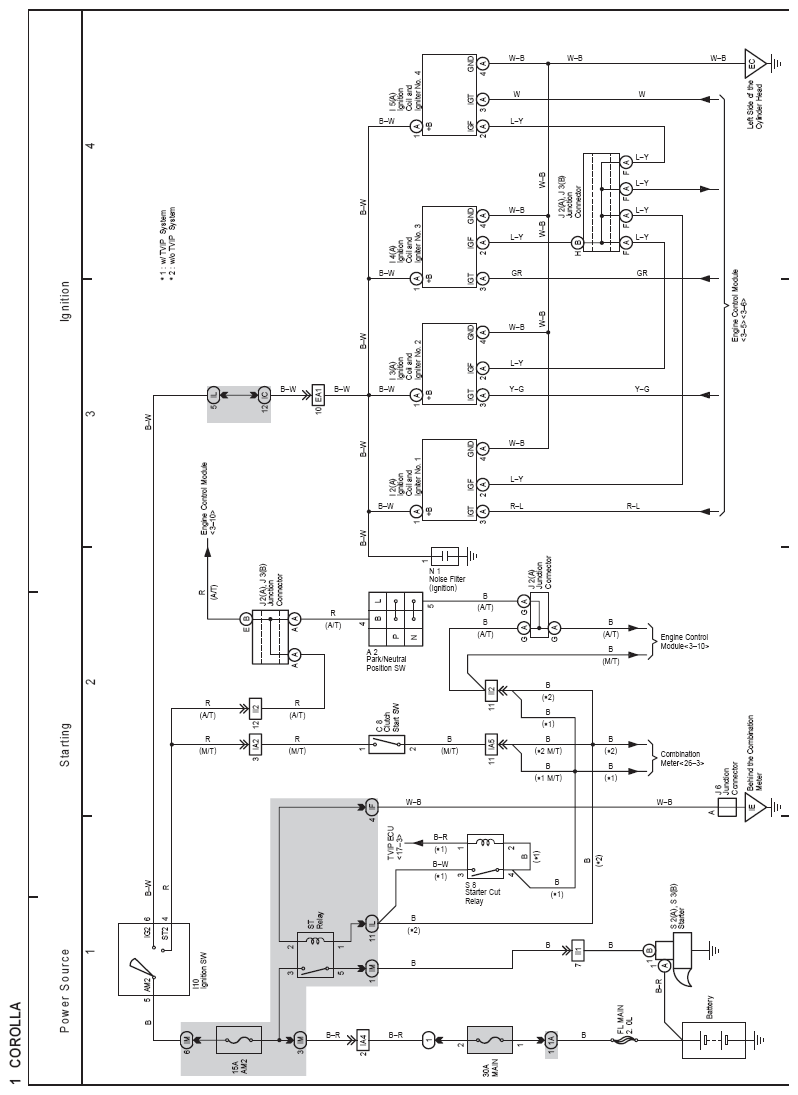

Fig 1: Starting Electrical Wiring Diagram

G07604153

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
