Fog Light, Headlight

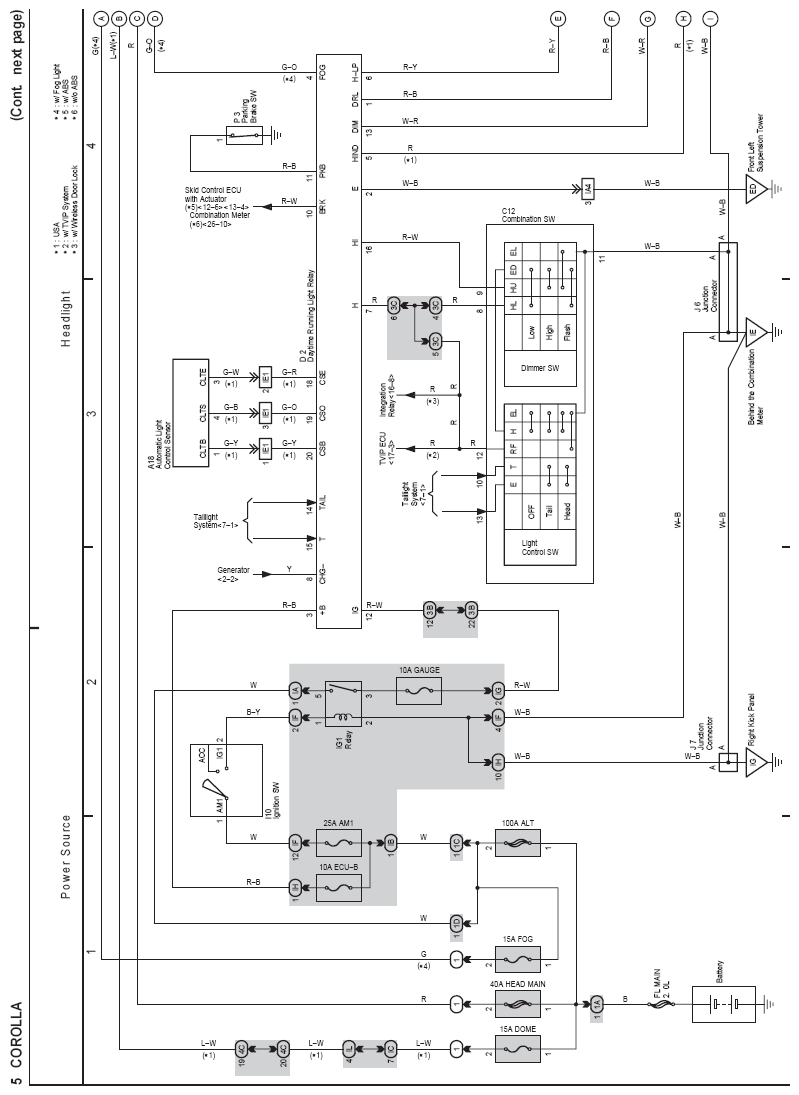

Fig 1: Headlight Electrical Wiring Diagram (1 Of 2)
G07604159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

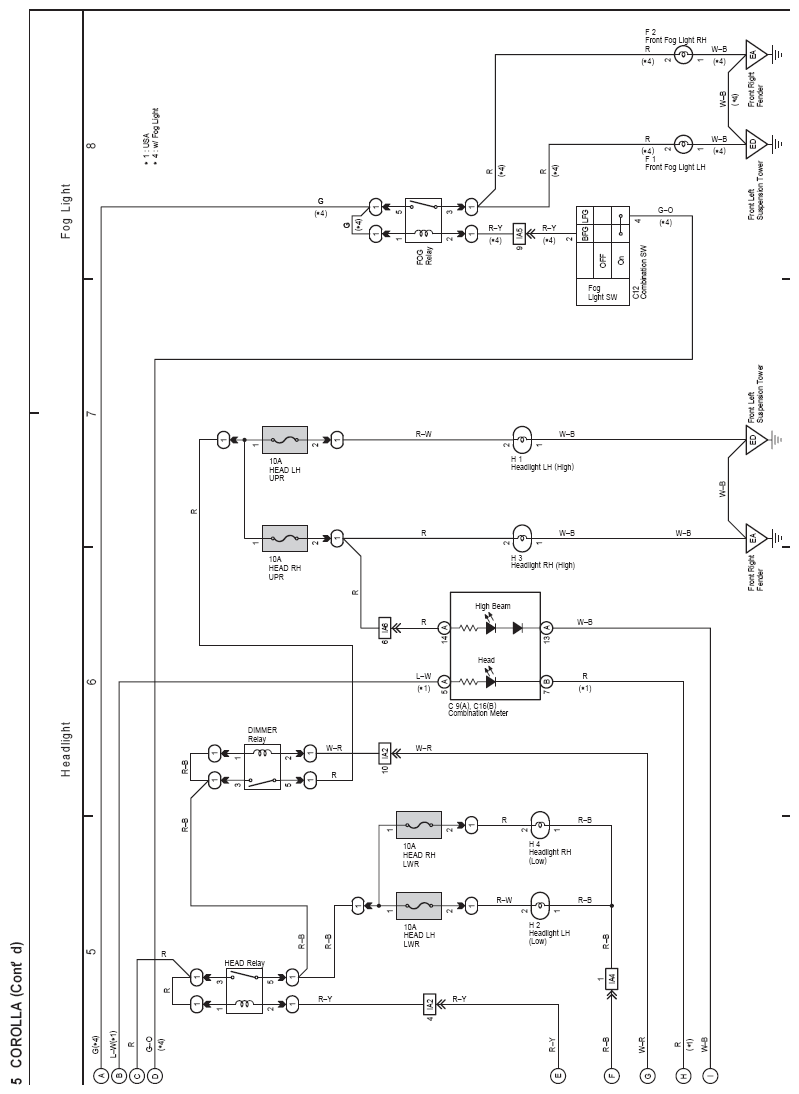

Fig 2: Headlight Electrical Wiring Diagram (2 Of 2)
G07604160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
