Engine Immobiliser System
Engine Immobiliser System

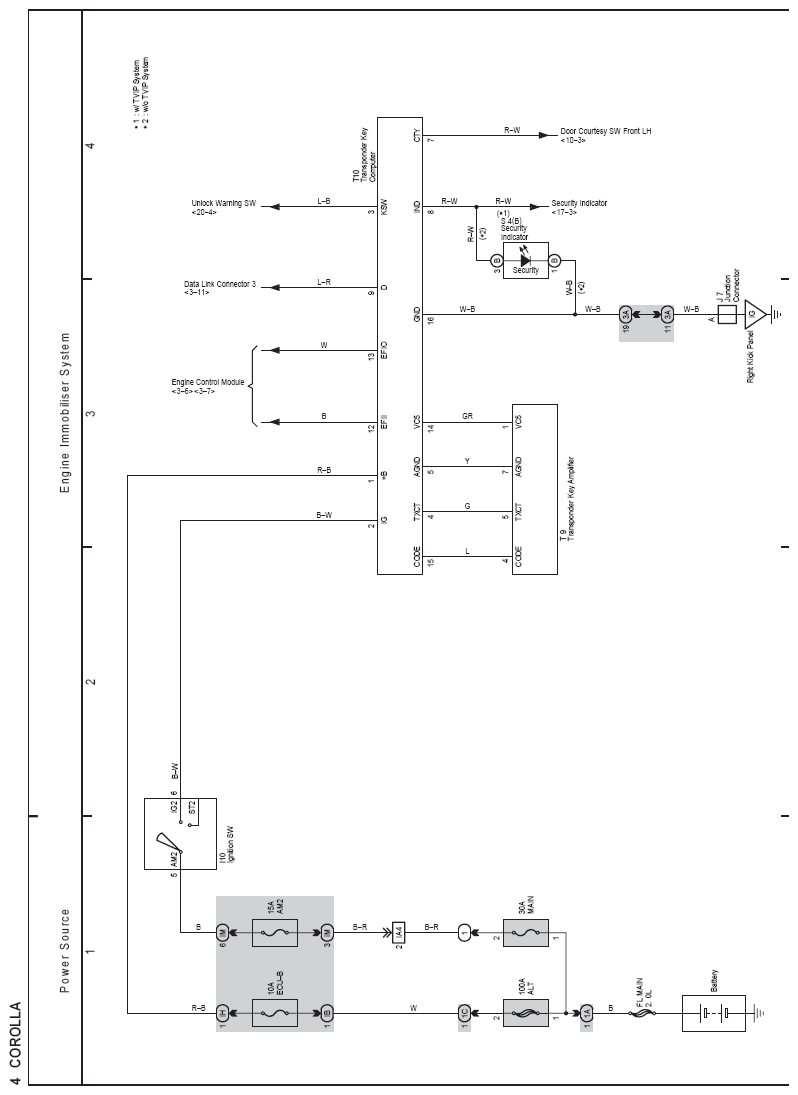

Fig 1: Engine Immobiliser System Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
