Combination Meter

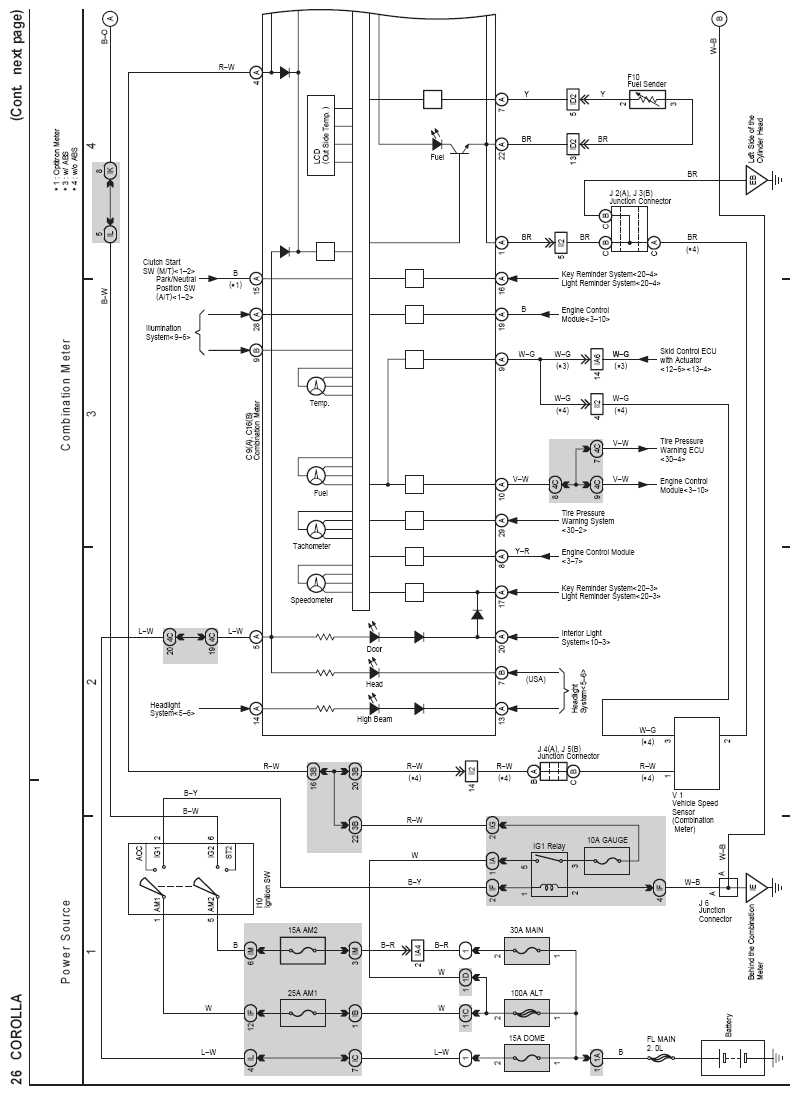

Fig 1: Combination Meter Electrical Wiring Diagram (1 Of 3)
G07604187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

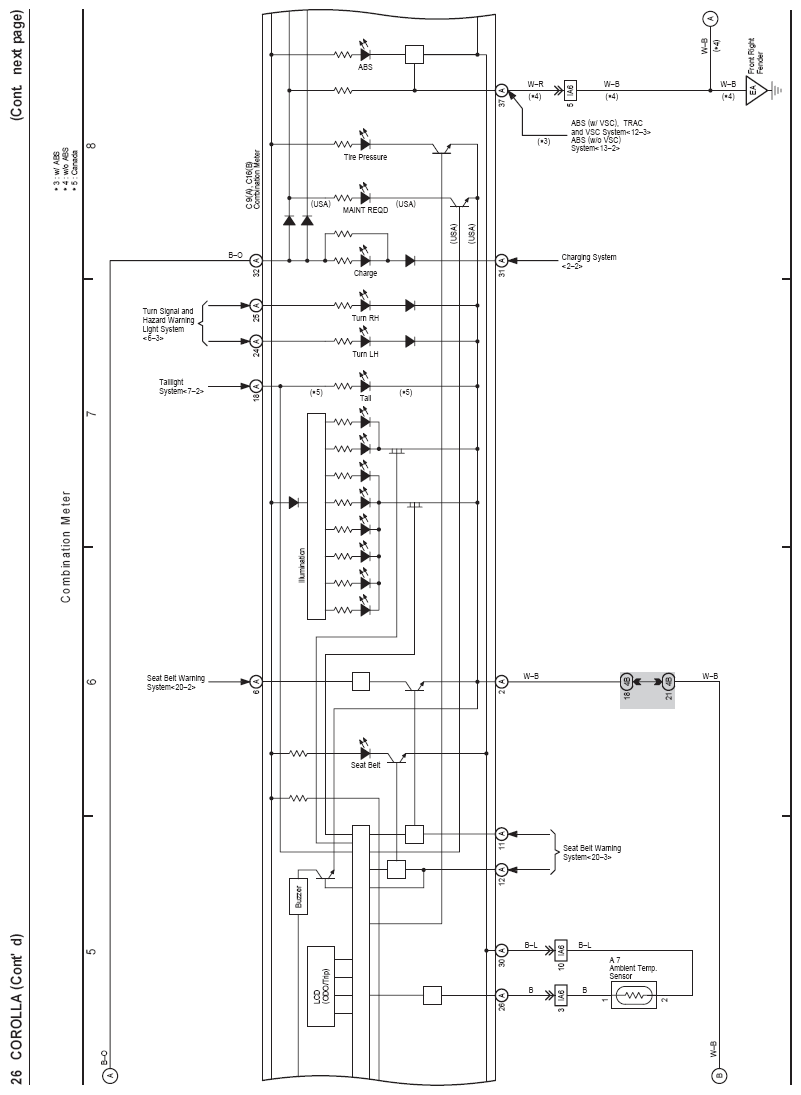

Fig 2: Combination Meter Electrical Wiring Diagram (2 Of 3)
G07604188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

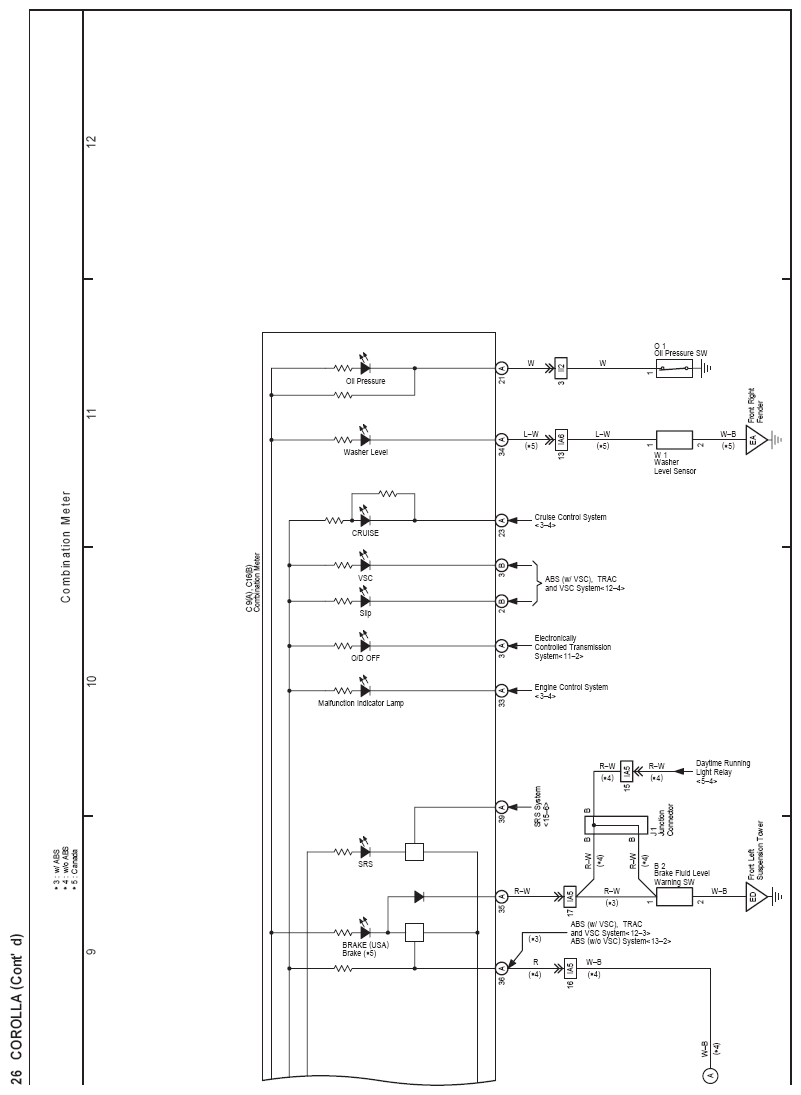

Fig 3: Combination Meter Electrical Wiring Diagram (3 Of 3)
G07604189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
