Back-Up Light, Electronically Controlled Transmission

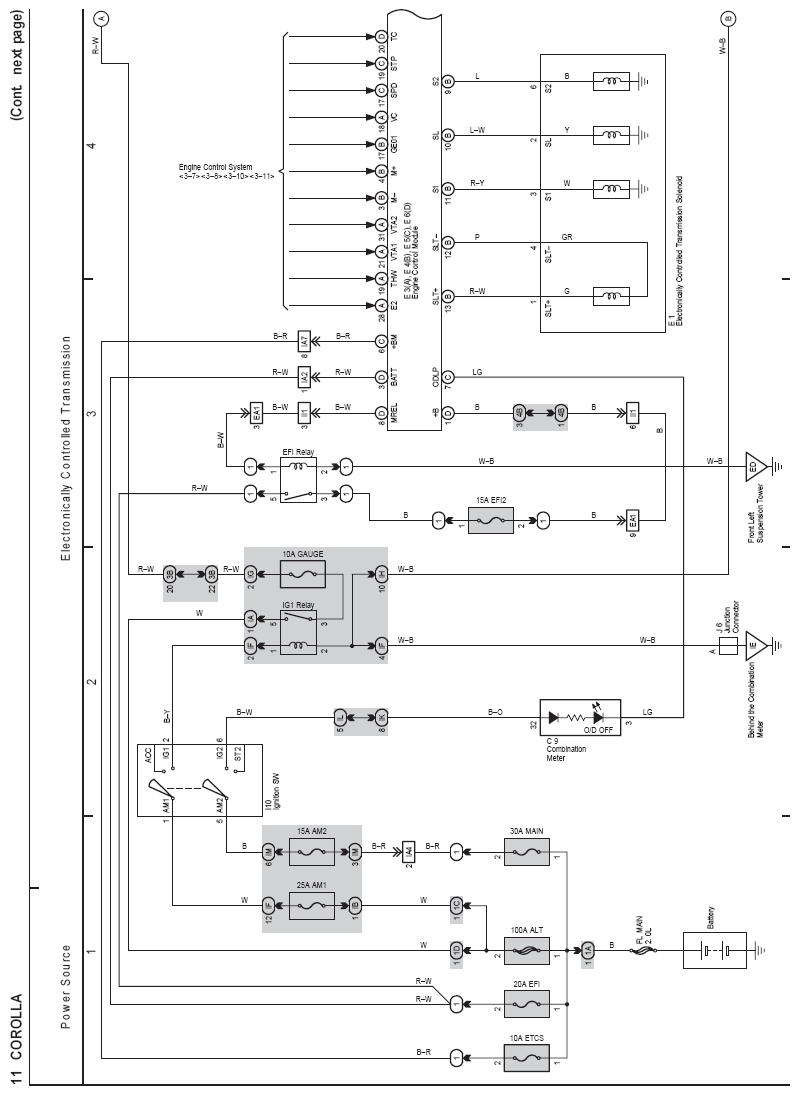

Fig 1: Electronically Controlled Transmission Electrical Wiring Diagram (1 Of 2)
G07604168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

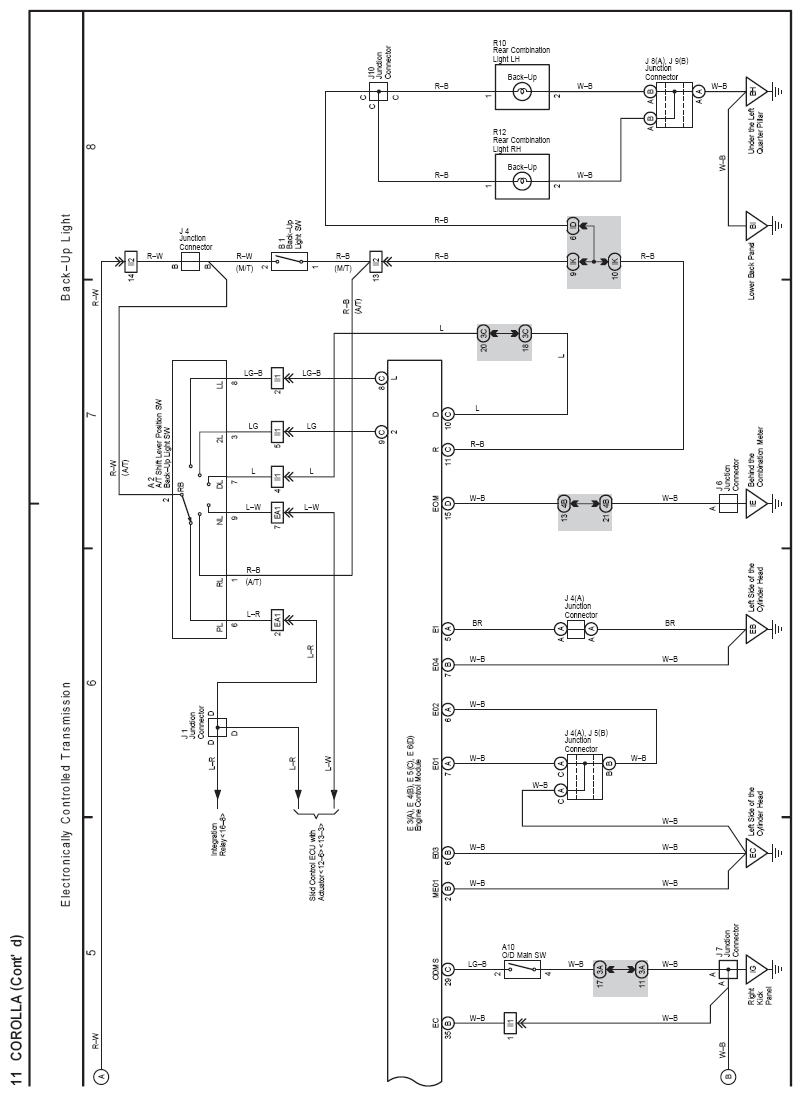

Fig 2: Electronically Controlled Transmission Electrical Wiring Diagram (2 Of 2)
G07604169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
