Corolla LE, Automatic
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
Automatic Glare-Resistant EC Mirror with Compass, Wiper and Washer
Automatic Glare-Resistant EC Mirror with Compass, Wiper and Washer

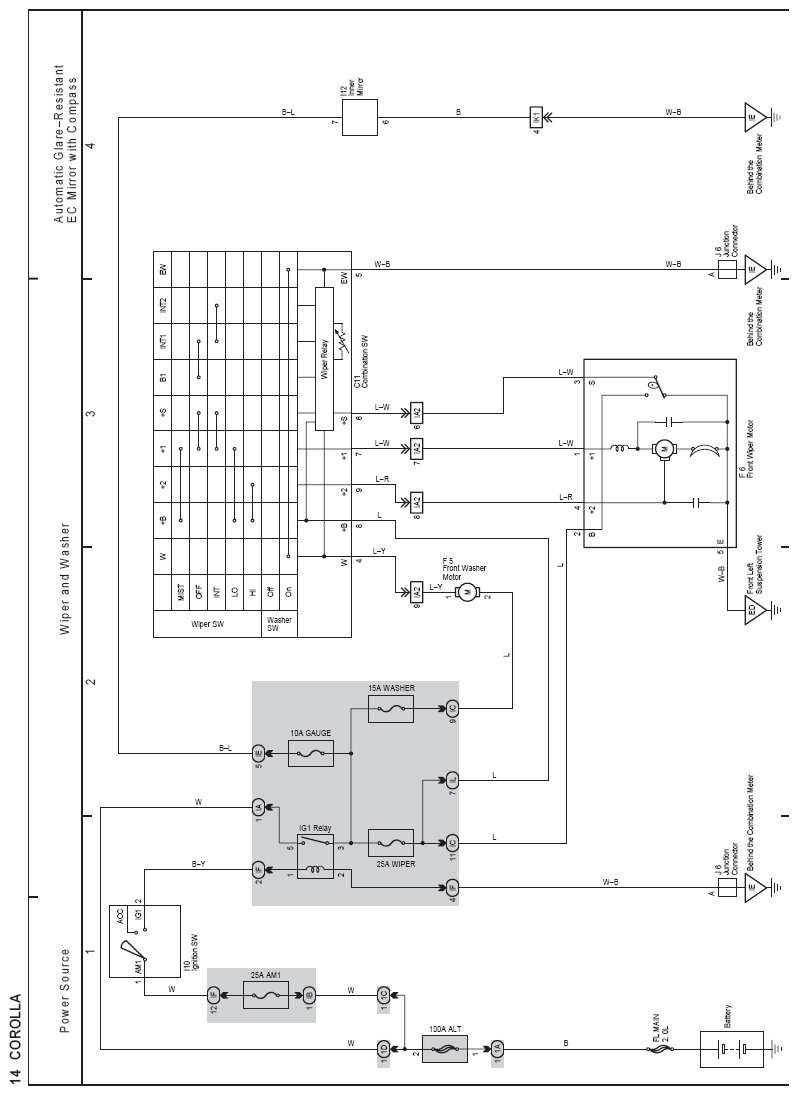

Fig 1: Wiper And Washer Electrical Wiring Diagram
