Shift And Select Lever Shaft: Components

WARNING: This page is about a different variant/trim than selected.
Fig 1: Shift And Select Lever Shaft Replacement Components With Torque Specifications (1 Of 2)
G05194506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

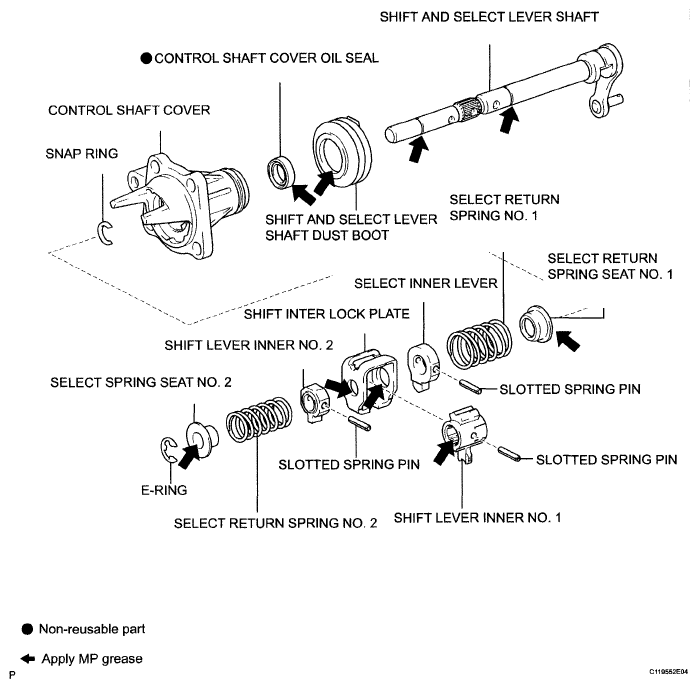

Fig 2: Identifying Shift And Select Lever Shaft Components (2 Of 2)
G05194507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
