Floor Shift Lever Assembly: Components

WARNING: This page is about a different variant/trim than selected.

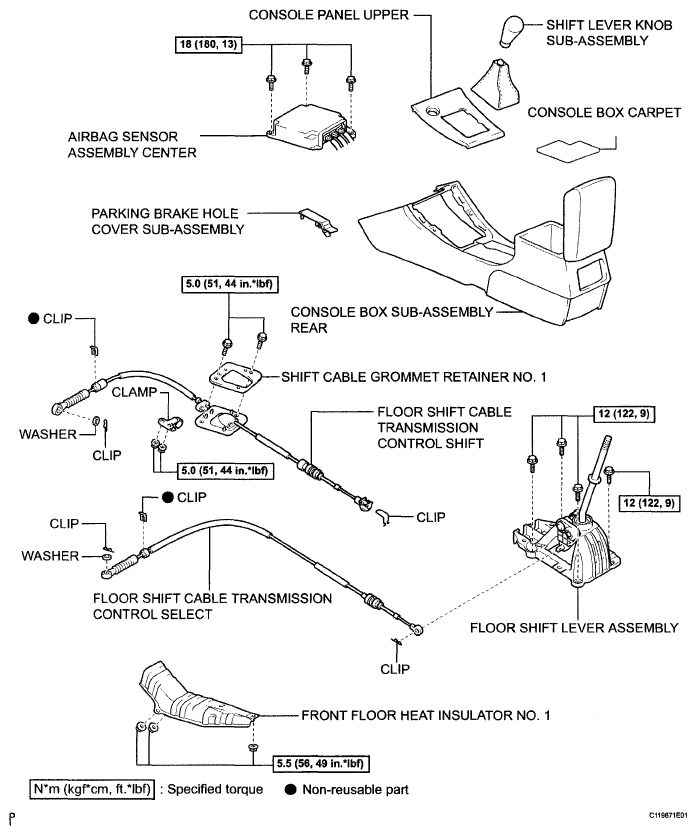

Fig 1: Floor Shift Lever Assembly Replacement Components With Torque Specifications
G05194215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
