On-Vehicle Inspection

WARNING: This page is about a different variant/trim than selected.

INSPECT CLUTCH START SWITCH ASSEMBLY
1. Check that the engine does not start when the clutch pedal is released.
2. Check that the engine starts when the clutch pedal is fully depressed.
  If necessary, inspect and replace the clutch start switch assembly.

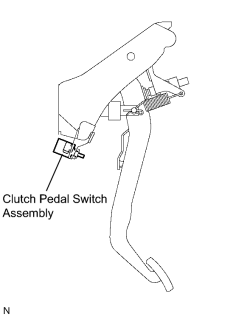

Fig 1: Inspecting Clutch Start Switch Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
