Cigarette Lighter, Clock, Horn, Power Outlet

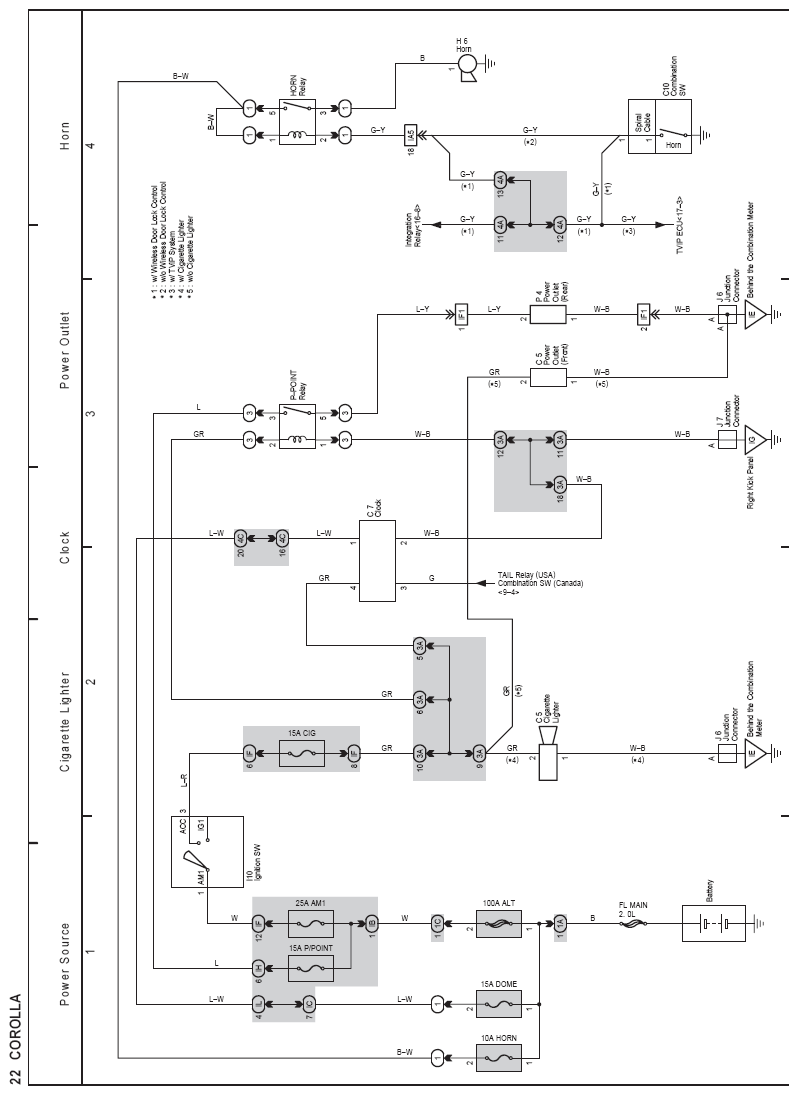

Fig 1: Cigarette Lighter Electrical Wiring Diagram

G07604183

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
