Audio System (w/o Stereo Component Amplifier)

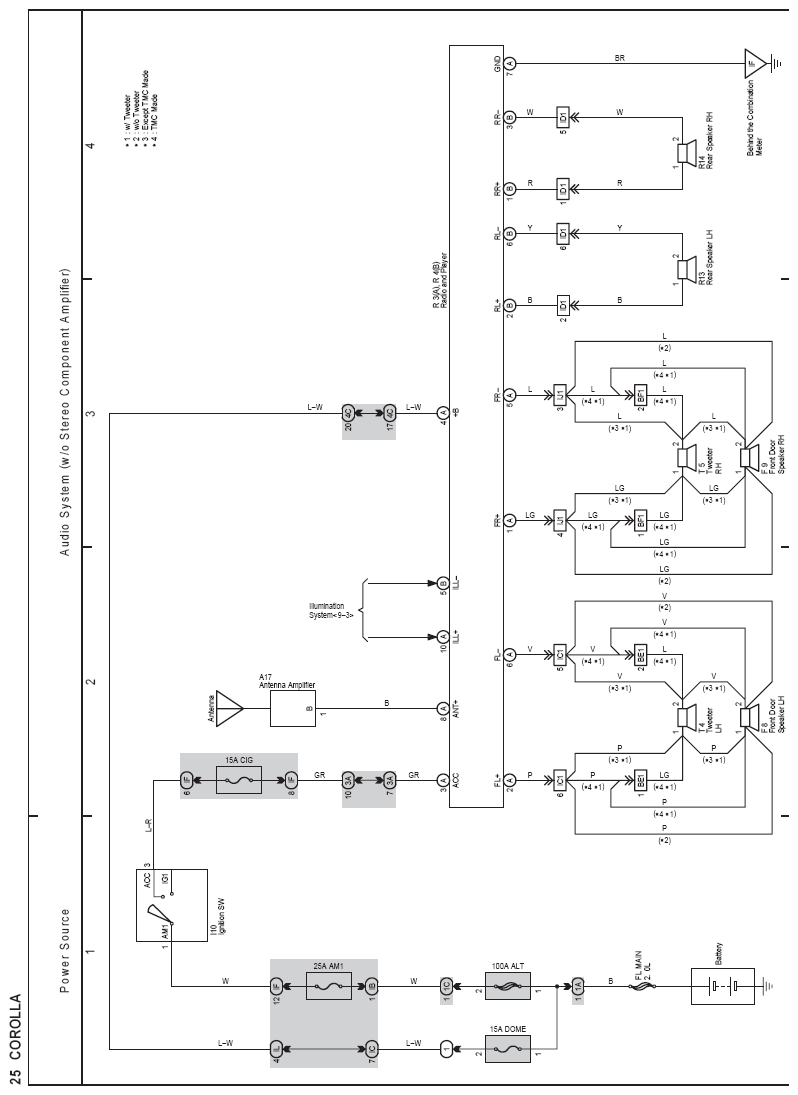

Fig 1: Audio System (W/O Stereo Component Amplifier) Electrical Wiring Diagram

G07604186

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
