Tire Pressure Warning Valve And Transmitter: Components

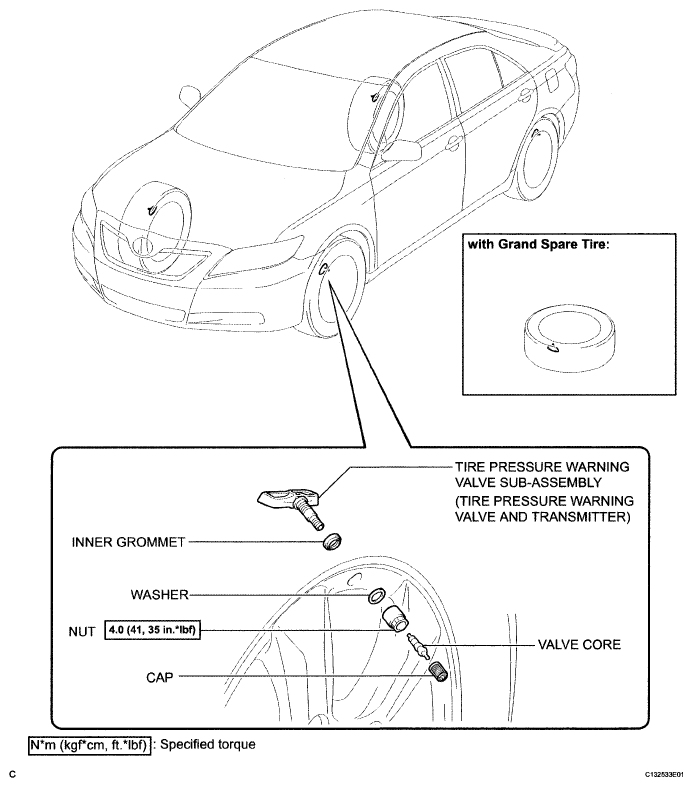

Fig 1: Tire Pressure Warning Valve Sub-Assembly Replacement Components With Torque Specifications
G04977873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
