Tire Pressure Warning Ecu: Components

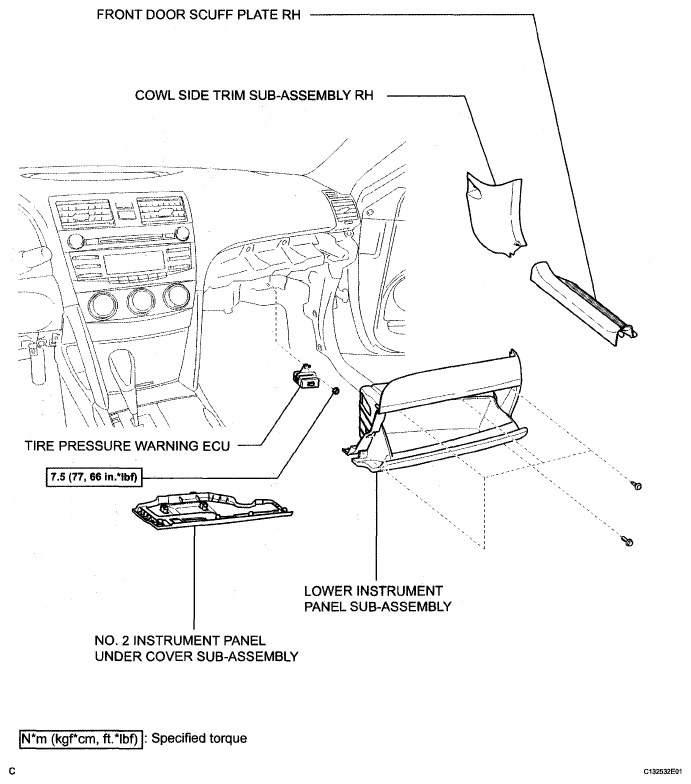

Fig 1: Tire Pressure Warning ECU Replacement Components With Torque Specifications

G04977880

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
