How To Proceed With Troubleshooting

  1. DIAGNOSIS OF TIRE VIBRATION
    1. Inspection procedure

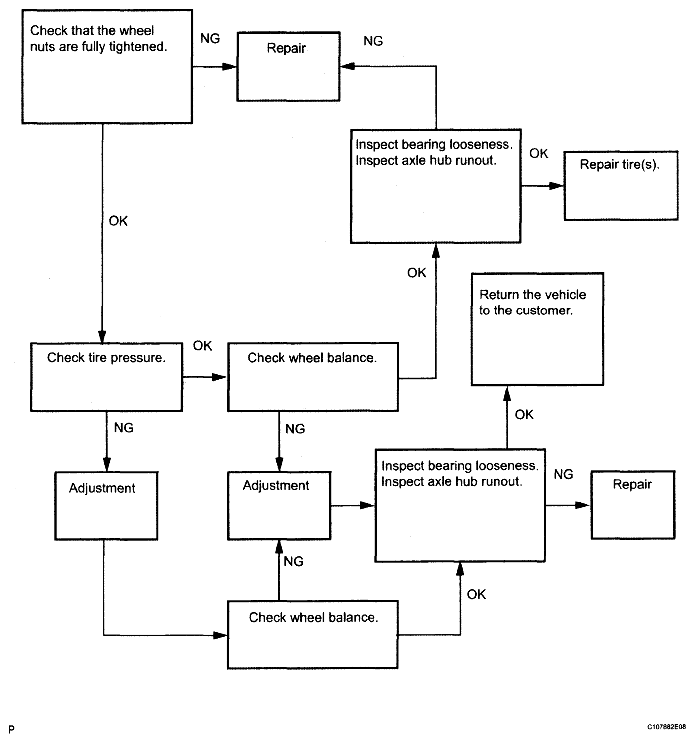

      Fig 1: Tire Vibration Inspection Procedure Flow Chart
      G04977808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. DIAGNOSIS OF IRREGULAR TIRE WEAR
    1. Inspection procedure
      Fig 2: Irregular Tire Wear Inspection Procedure Flow Chart
      G04977809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
