TIRE PRESSURE WARNING RECEIVER (w/ Antenna): Components

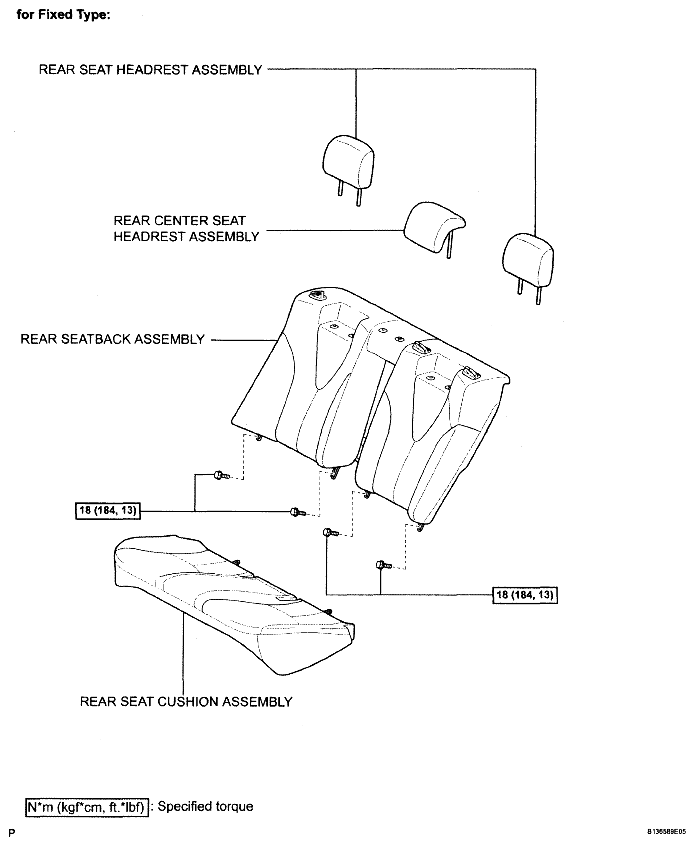

Fig 1: Rear Seat Assembly Replacement Components With Torque Specifications - Fixed Type

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Rear Seat Assembly Replacement Components With Torque Specifications - Fold Down Seat Type

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

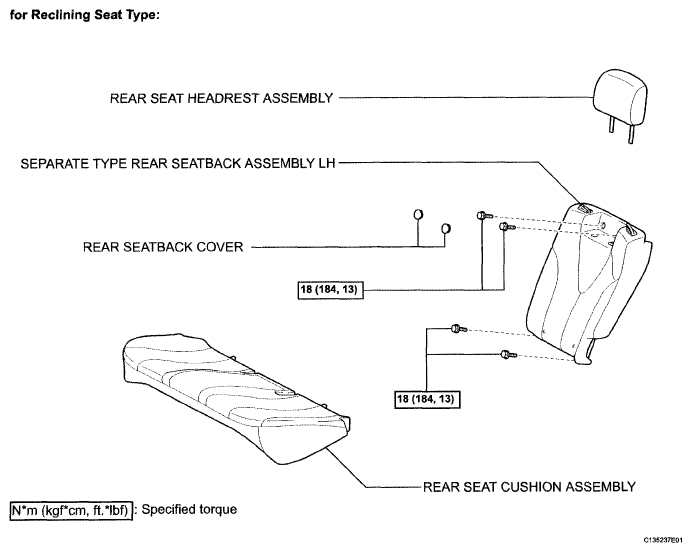

Fig 3: Rear Seat Assembly Replacement Components With Torque Specifications - Reclining Seat Type

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

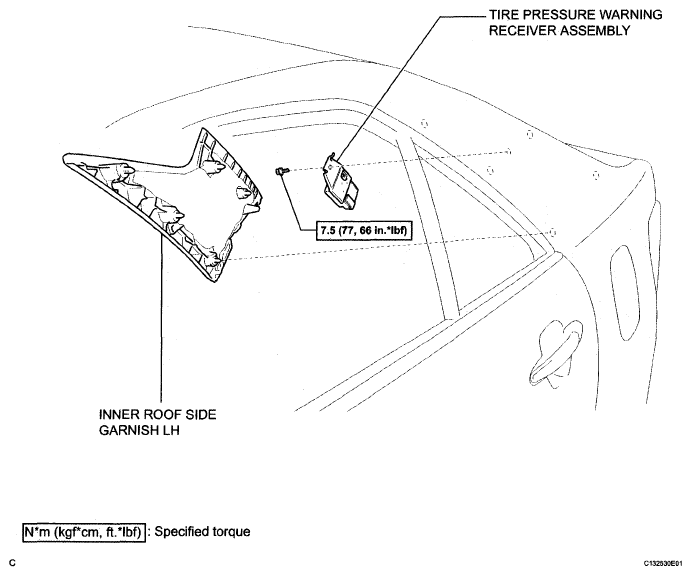

Fig 4: Tire Pressure Warning Receiver Assembly With Torque Specification

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
