Spiral Cable: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE: Wait for 90 seconds after disconnecting the cable to prevent airbag deployment.
  2. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  3. REMOVE NO. 3 LOWER STEERING WHEEL COVER (See  REMOVAL   )
  4. REMOVE NO. 2 LOWER STEERING WHEEL COVER (See  REMOVAL   )
  5. REMOVE STEERING PAD (See  REMOVAL   )
  6. REMOVE STEERING WHEEL ASSEMBLY  (See REMOVAL )
  7. REMOVE STEERING COLUMN COVER  (See REMOVAL )
  8. REMOVE SPIRAL CABLE (w/o VSC)
    1. Disconnect the connectors from the spiral cable.
      NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.
    2. Disengage the 3 claws and remove the spiral cable.

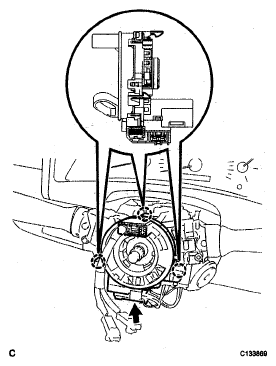

      Fig 1: Identifying Spiral Cable Claws
      G04979598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE SPIRAL CABLE WITH STEERING ANGLE SENSOR (w/ VSC)
    1. Disconnect the connectors from the spiral cable with steering angle sensor.
      NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.
    2. Disengage the 3 claws and remove the spiral cable with steering angle sensor.
      Fig 2: Identifying Spiral Cable Claws
      G04979598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE SPIRAL CABLE (w/ VSC)
    1. Disengage the 6 claws and remove the spiral cable from the steering angle sensor.
    11. Fig 3: Identifying Spiral Cable Claws
    G04979599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
