OEM Electrical Wiring Harness Routing (Except Hybrid)
>>
Electrical Wiring Routing
>>
Position of Parts in Body
Position of Parts in Body

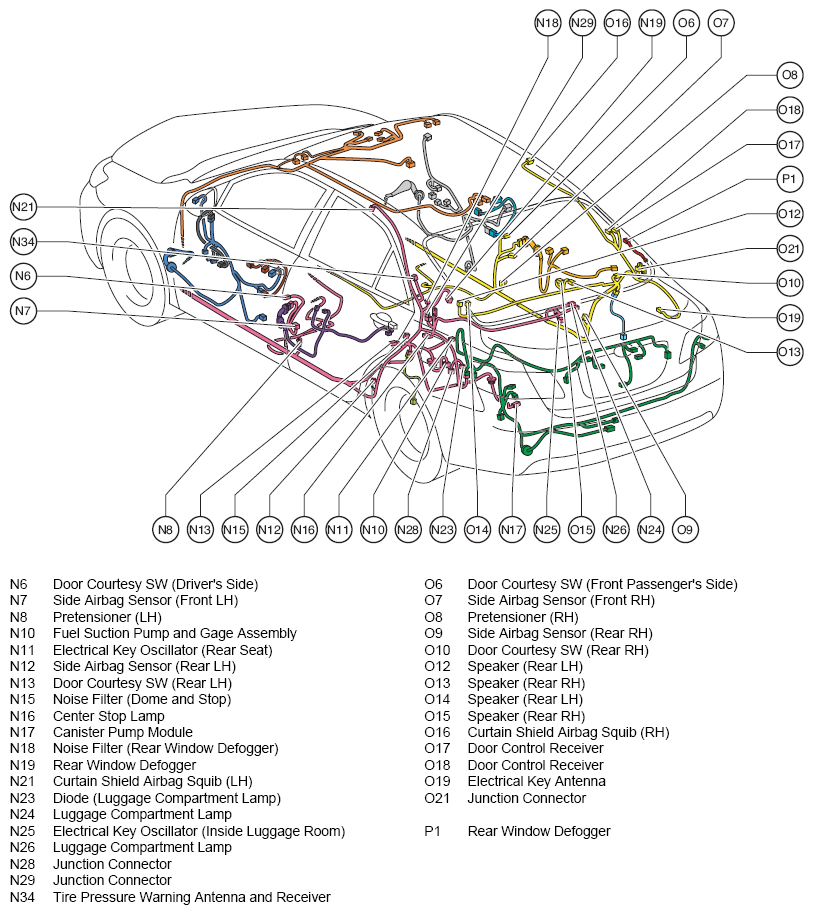

Fig 1: Body Parts (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

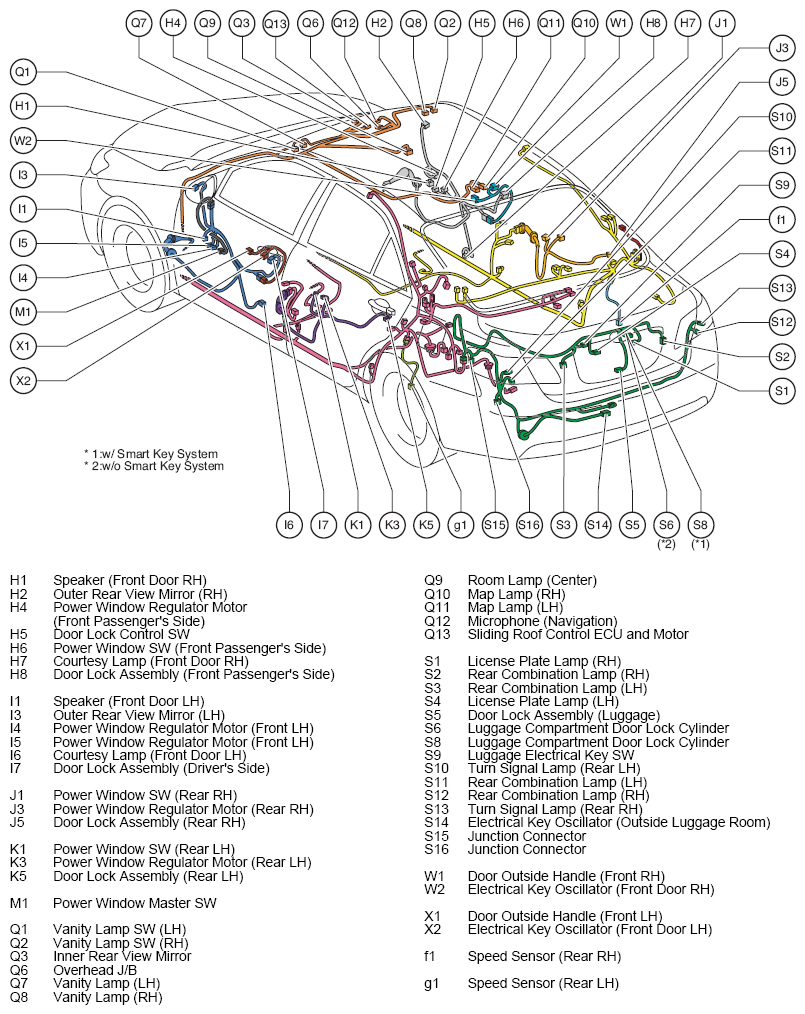

Fig 2: Body Parts (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
