Location of Connector Joining Wire Harness and Wire Harness: Overview

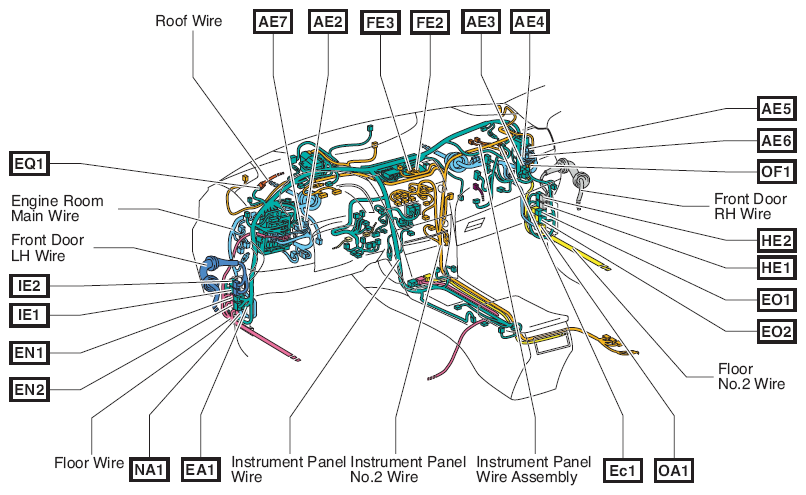

Fig 1: Locating Wire Harnesses Points

G07603362

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
